14201FL218024-11 datasheet, PDF

14201FL218024-11: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size60KB，3 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

14201FL218024-11 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Objectid	308879522
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.157 inch
subject depth	0.11 inch
body length	0.945 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	24

Ratioplast Electronics

H.Wiedemann GmbH

Jockweg 66

D-32312 Lübbecke

Tel: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

Mail: info@ratioplast.de

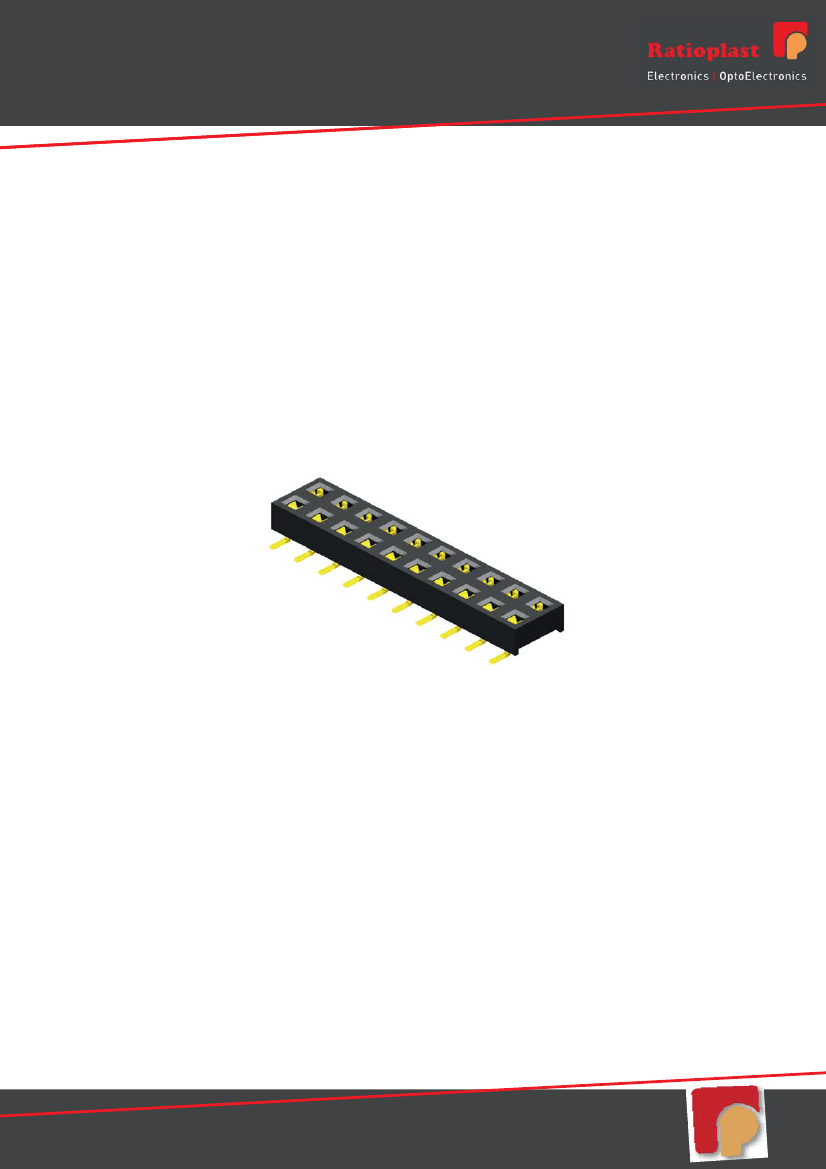

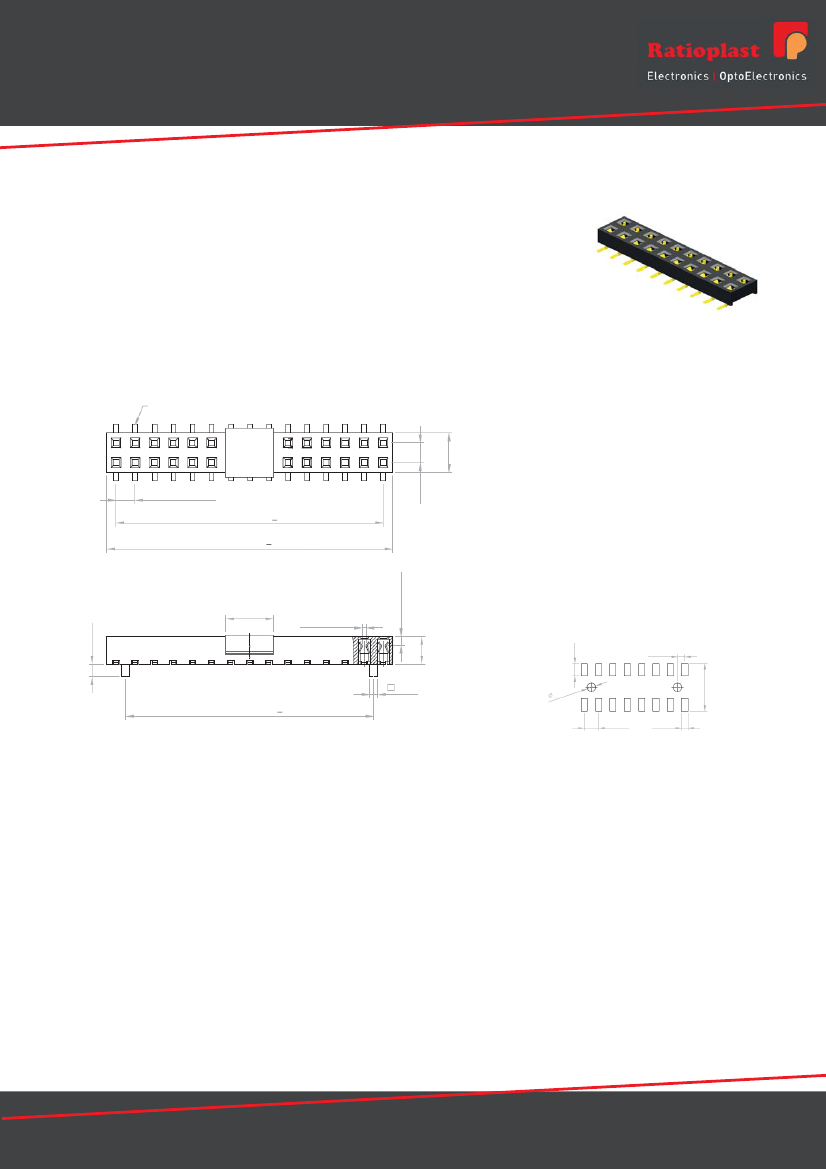

SMD Buchsenleiste

SMT Femaleheader

Serie 142

Seite 1
