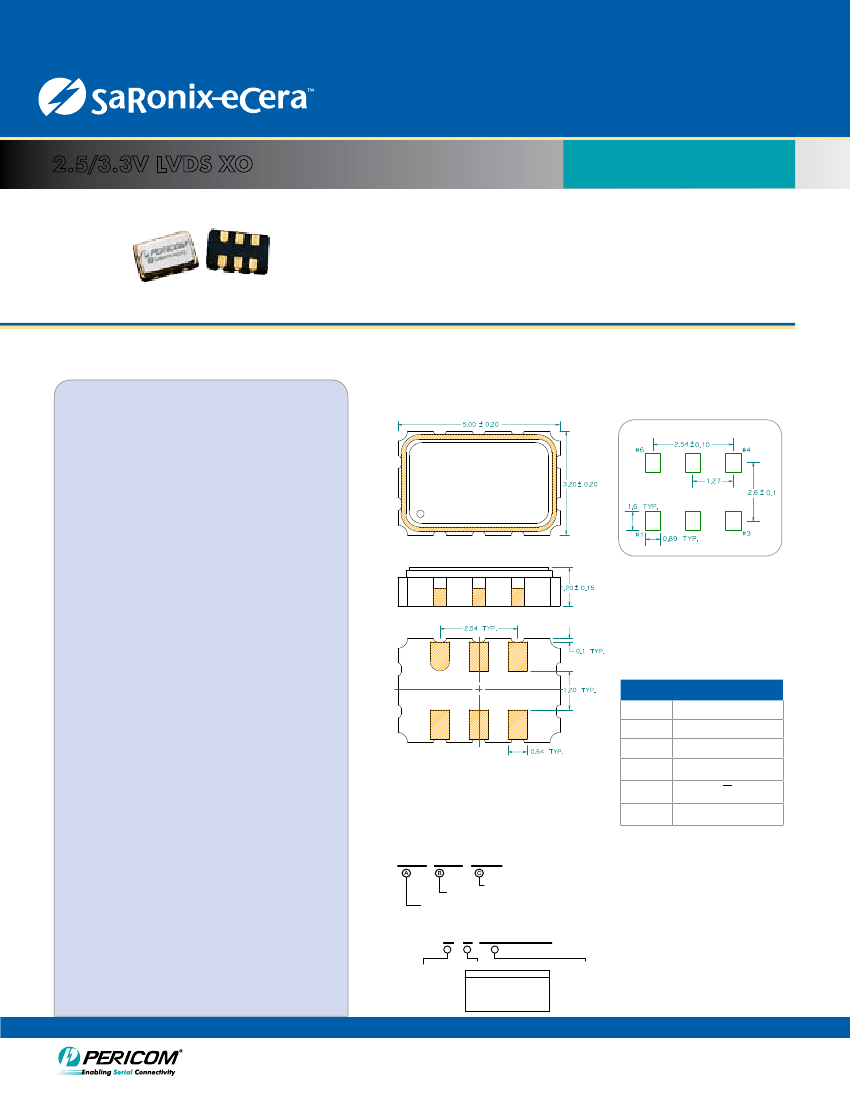

Ultra Low Jitter LVDS Crystal Oscillator 5.0 x 3.2mm
2.5/3.3V LVDS XO
UX53/UX503
5.0 x 3.2mm Ceramic SMD
Package:
(Scale: none; dimensions are in mm)
Product Features
Ultra low phase jitter for 40G/100G systems
0.1ps RMS max. (12kHz to 20MHz), Category 1
0.2ps RMS max. (12kHz to 20MHz), Category 1
0.3ps RMS max. (12kHz to 20MHz), Category 2
Recommended Land Pattern:
Industrial Temperature Range
Pb-free & RoHS compliant
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
*Extended high frequency power
Product Description
The UX53/UX503 XO series is a high
performance LVDS crystal oscillator family
with very low jitter performance. It supports
various options including wider frequency
range, 2.5/3.3 voltage, various stabilities,
and different package sizes. It is designed
to meet the clock source specifications for
communication systems, and other high
performance equipment.
decoupling is recommended
(see test circuit for minimum
recommendation). To ensure
optimal performance, do not route
RF traces beneath the package.
Pin Functions:
Pin
Function
1
2
3
4
5
6
OE Function
N/C
Ground
Q
Q
V
CC
Applications
Networking systems
Servers and storage systems
Profession video equipments
Test and measurement
FPGA/ASIC clock generation
Part Ordering Information Category 1:
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
UX53 XXX YYY
*Not for all frequencies in the
frequency range. Please contact
sales for details.
3
Part Ordering Information Category 2:
UX
503
70
V
A
YYYY = Specification½Code
XXX = Frequency½Code
Product½Family
I FFFF.FFFFFF
B
C
Voltage:
1=+3.3V
2=+2.5V
Stability and Temp Range:
Stability Temp Range
A = +/-20 ppm -20/+70°C
B = +/-25 ppm -20/+70°C
C = +/-50 ppm -20/+70°C
D = +/-25 ppm -40/+85°C
E = +/-50 ppm -40/+85°C
Frequency:
FFFF.FFFFFF
MHz, “4 digits/decimal/6 digits” format
SaRonix-eCera™ is a Pericom® Semiconductor company
US: +1-408-232-9100 TW: +886-3-4518888
www.pericom.com
All specifications are subject to change without notice.
14-0037
UX53/UX503
Rev A
05/21/14
1
