382L473M025N052 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 382L473M025N052

382L473M025N052: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47000uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size136KB，12 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

382L473M025N052 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47000uF, Through Hole Mount, RADIAL LEADED

382L473M025N052 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	47000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	19 mΩ
leakage current	3.251923 mA
Manufacturer's serial number	382L
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	8400 mA
surface mount	NO
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

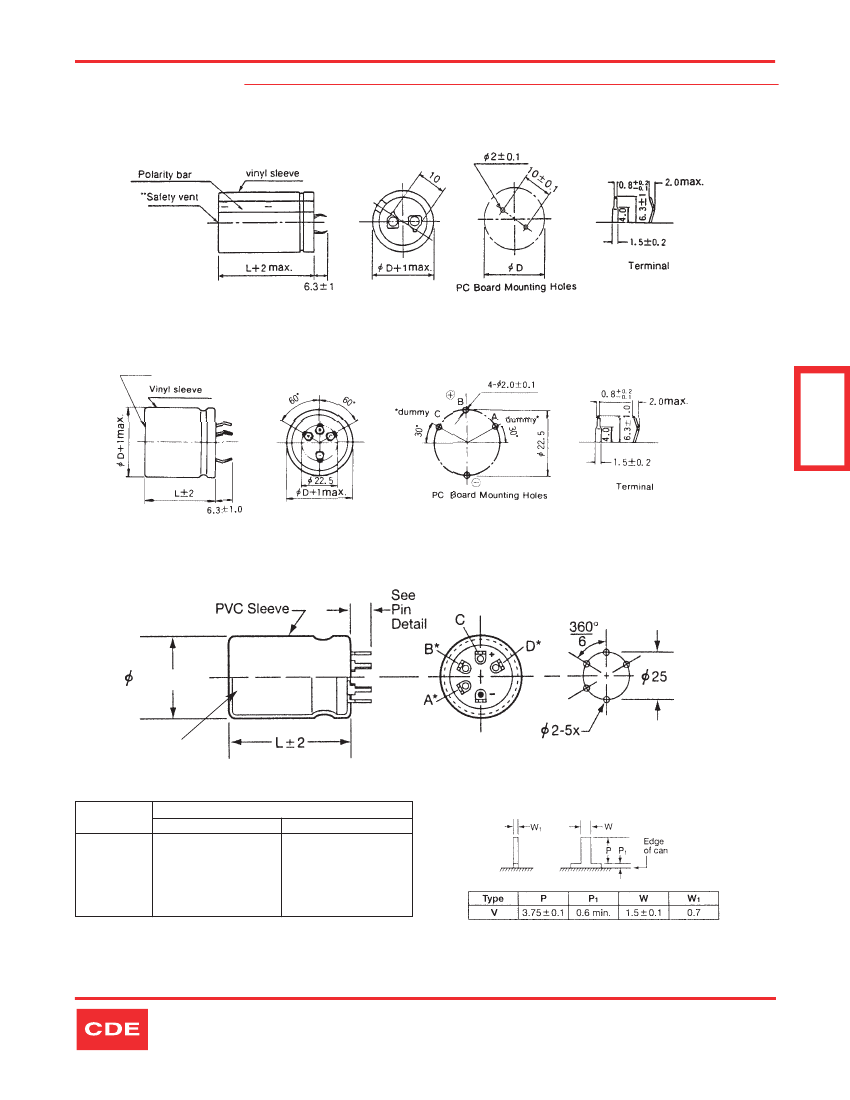

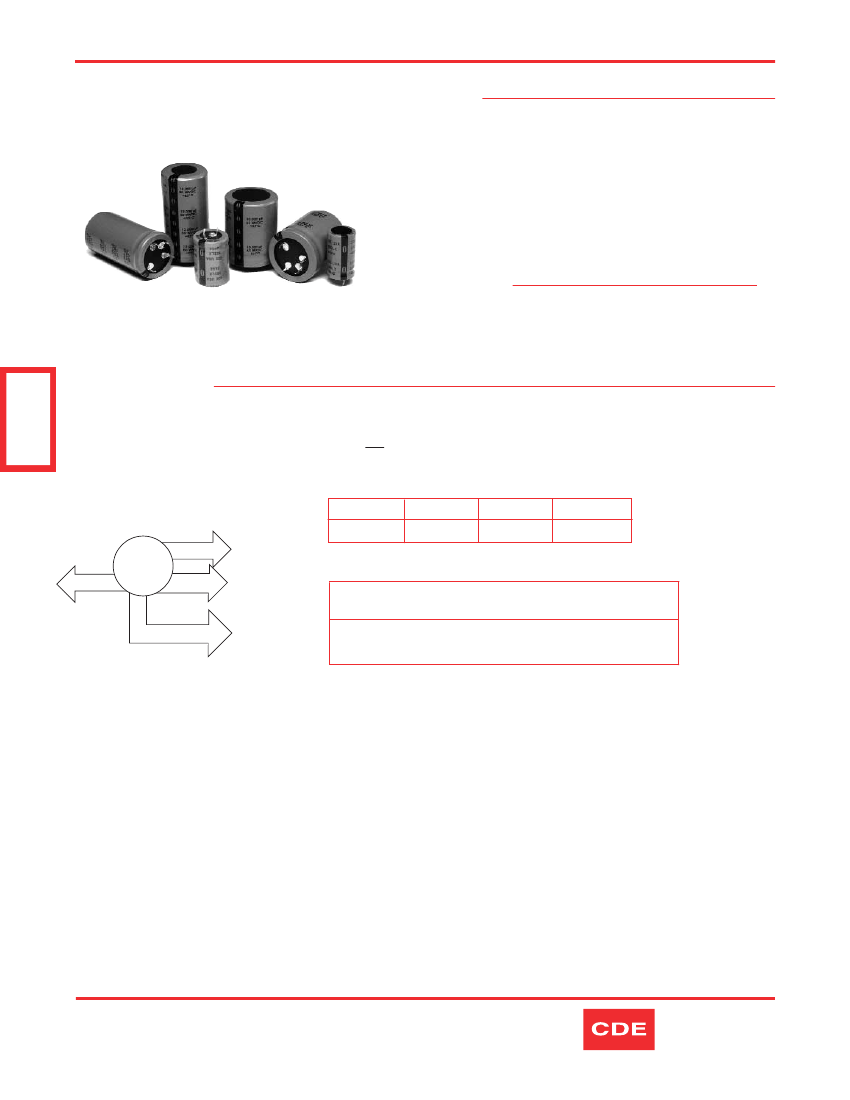

Types 380L, 382L, 380LX & 382LX, 85 C High-Capacitance Snap-In

Types 380L/LX & 4-pin Mount 382LX (85 °C)

The excellent value of Type 380L/LX capacitors finds

application in switching power supply input and output

circuits and even motor drives where the high surface area

of multiple units in parallel approaches the ripple capability

of our Type 520C computer-grade capacitor. Type 380LX

delivers more capacitance per can size while Type 380L

gives lower ESR for the same capacitance rating. Type 382L

gives the choice of 4 or 5 leads for stable, reverse proof

mounting. 382LX is available with 4 pins.

Highlights

Aluminum

Snap-In

Capacitors

Latest available ratings, worldwide

Top performance in power supplies and motor drives

Big selection of 46 case sizes

2, 4 and 5 leads available

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

Leakage Current:

Ripple Current Multipliers:

40 °C to 85 °C up to 300 V,

16 Vdc to 500 Vdc

µF

to 270,000 F 20%

3 CV A at 5 min.

Ambient Temperature

45 °C

1.5

Frequency

60 Hz 120 Hz

16-100 Vdc

160-450 Vdc

0.95

0.80

1.00

500 Hz

1.05

1.20

1 kHz 10 kHz

& up

1.08

1.25

1.15

1.40

60 °C

1.4

70 °C

1.3

85 °C

1.0

25 °C to 85 °C

315 V

Type 380LQ

p 2.054

Smaller

Life

Ripple

Type 381LX

p 2.074

Type 381LX

p 2.074

Type 381LX

p 2.074

Temp

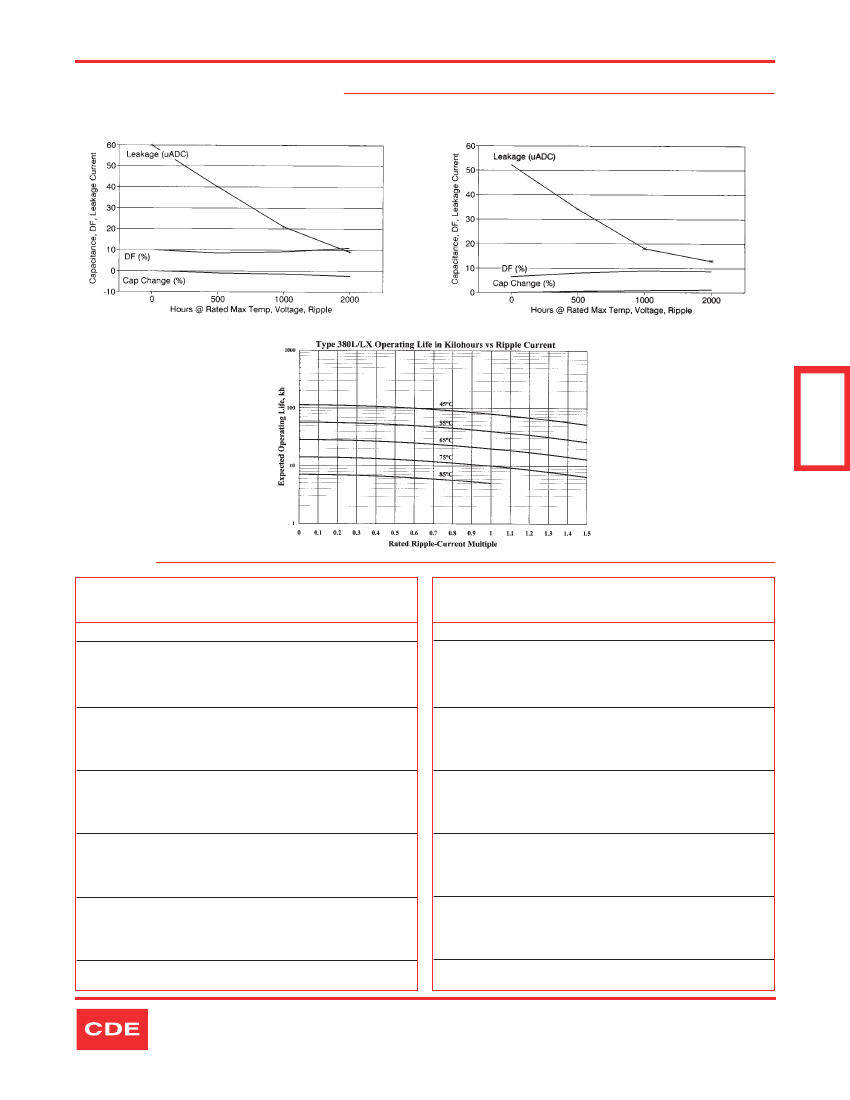

EIA Ripple Life:

Shelf Life:

Vibration:

3,000 h @ full load at +85 °C per EIA IS-749

Capacitance 20%

ESR 150% of limit

DCL 100% of limit

1000 h @ 85 °C, capacitance, ESR and DCL, initial requirements

10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane

Notice:

Type 380L is not for new design. Please substitute Type 380LX.

2.058

140 Technology Place

Liberty, SC 29657

(864) 843-2277, Fax (864) 843-3800

http://www.cornell-dubilier.com

E-mail: cde@cornell-dubilier.com

CORNELL

DUBILIER

Your Source For Capacitor Solutions
