ERC0805X7R273J100T

Description
Ceramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.027uF, 0805,
CategoryPassive components    capacitor
File Size271KB，12 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

ERC0805X7R273J100T Overview

Ceramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.027uF, 0805,

ERC0805X7R273J100T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid799778585
package instruction, 0805
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
capacitance0.027 µF
Capacitor typeCERAMIC CAPACITOR
Custom functionsPrecision and Pulse Applications
dielectric materialsCERAMIC
high0.85 mm
length2 mm
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, Paper, 7 Inch
positive tolerance10%
Rated (DC) voltage (URdc)100 V
seriesERC0805X7R(100VDC)
size code0805
Temperature characteristic codeX7R
Temperature Coefficient15% ppm/°C
width1.25 mm

ERC0805X7R273J100T Preview

Multilayer Ceramic Capacitors 2002-2003
SIZES
DO
WN
TO
02
01
Selection Guidelines For Surface Mount Capacitors

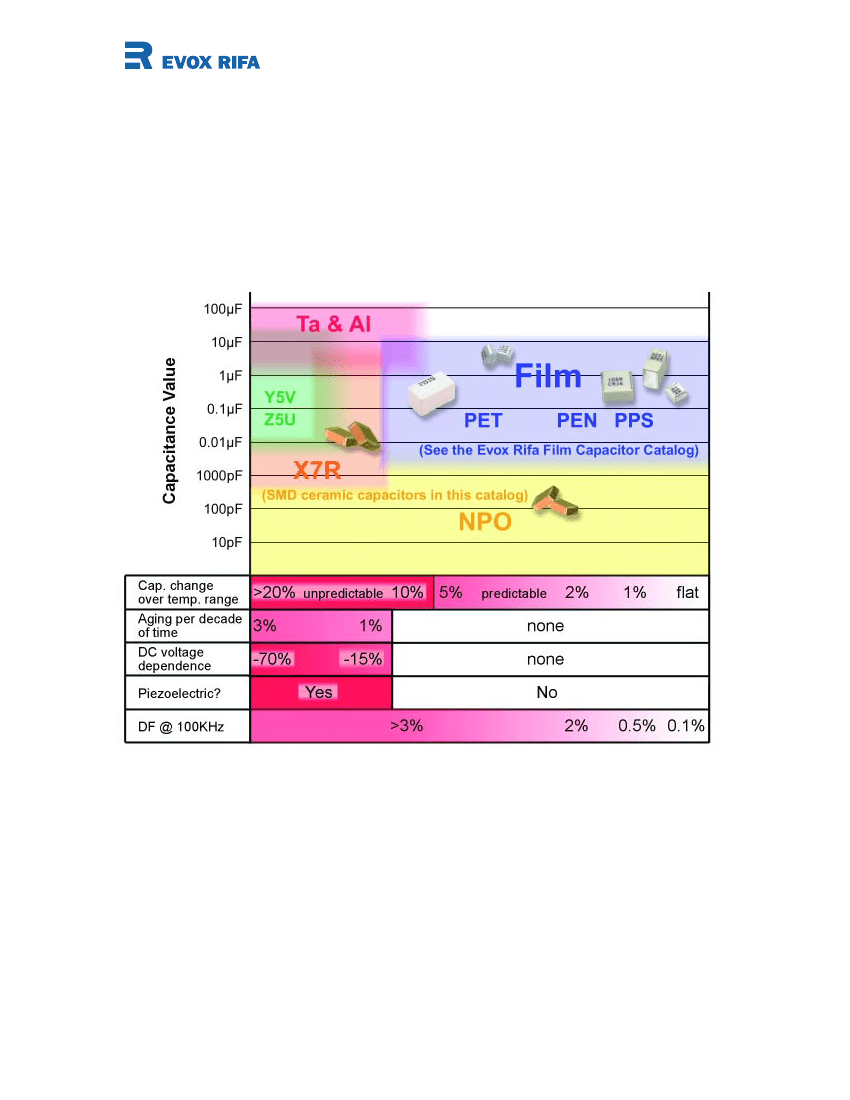

Surface Mount Capacitor Application Chart
While variations do exist, the chart below provides a general guideline for selecting the correct
surface mount capacitor. Begin at the left edge of the red stripes which denote the various
electrical properties. Move to the right until all the properties meet your design requirements.
Then move upward to the capacitance value of interest.
Film capacitors are recommended for all applications where transients or surges may occur.
“Self healing” metallized film capacitors are designed to recover from a transient overvoltage.
Complete specifications and tech notes for the entire line of Evox Rifa products are available
for download at
www.evoxrifa.com.
These include:
•
•
•
•
•
SMD and leaded film capacitors.
Agency approved X and Y capacitors including SMD.
Film capacitors for AC, precision and pulse applications.
Electrolytic capacitors including high-ripple screw terminal types.
Other regionally-specific products.
Evox Rifa
www.evoxrifa.com
Multilayer Ceramic Chip Capacitors
Contents
Standard Products and Thickness
NPO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
X7R
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
X5R & Y5V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Packaging
Paper and Embossed Tape Specifications
. . . . . . . . . . . . . . . . 5
Reel Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Soldering Guidelines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mechanical Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Handling and Storage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
General Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ordering Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Additional specifications, test methods and performance curves
plus updates to this catalog are available at
www.evoxrifa.com
Specifications subject to change without notice.
Evox Rifa
www.evoxrifa.com
NPO Standard Products and Thickness
T.C.
Type
Size
RV
