Tantalum Surface Mount Capacitors – MIL–PRF (CWR Style)
T409 Series MIL–PRF–55365/4 (CWR09 Style)
Overview
The KEMET T409 Series is approved to MIL–PRF–55365/4
(CWR09 Style) with Weibull failure rates of B level (0.1%
failures per 1,000 hours), C level (0.01% failures per 1,000
hours), D level (0.001% failures per 1,000 hours), or T level
(0.01% failures per 1,000 hours, Option C surge current,
DPA, Radiographic inspection, 100% visual inspection, DCL and
ESR measurements within +3 standard deviations, and Group C
inspection). This CWR09 product is a precision-molded device
with compliant terminations and indelible laser marking. Tape and
reeling per EIA 481 is standard.
Benefits
•
•
•
•
•
•
•
•
•
•
•
Established reliability options
Taped and reeled per EIA 481
Symmetrical, compliant terminations
Laser-marked case
100% surge current test available on all case sizes
Qualified to MIL–PRF–55365/4 (CWR09 Style)
Termination options B, C, H, K
Weibull failure options B, C, D, and T
Exponential failure rates M, P, R, S
Voltage rating of 4 – 50 VDC
Operating temperature range of −55˚C to +125˚C
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in Military and aerospace applications requiring CWR09 devices.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET K-SIM is
designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2001_T409 • 2/18/2016
1
Tantalum Surface Mount Capacitors – MIL–PRF (CWR Style)
T409 Series MIL–PRF–55365/4 (CWR09 Style)
KEMET Ordering Information
T
Capacitor
Class
409
Series
A
Case
Size
A, B,
C, D,
E, F,
G, H
225
Capacitance
Code (pF)
First two
digits
represent
significant
figures. Third
digit specifies
number of
zeros.
K
J = ±5%
K = ±10%
M = ±20%
004
004 = 4
006 = 6.3
010 = 10
015 = 15
020 = 20
025 = 25
035 = 35
050 = 50
A
Failure Rate/Design
Weibull
A = non-ER
B = (0.1%/1,000 hours)
C = (0.01%/1,000 hours)
D = (0.001%/1,000 hours)
T = (0.01%/1,000 hours)
Exponential
M = (1.0%/1,000 hours)
P = (0.1%/1,000 hours)
R = (0.01%/1,000 hours)
S =(0.001%/1,000 hours)
H
Termination
Finish
C = Hot Solder
Dipped
H = Standard
Solder Coated
(SnPb 5% Pb
minimum)
B = Gold Plated
K = Solder
Fused
4252
Surge
4250= 25ºC
after Weibull
4251 = −55ºC
and 85ºC after
Weibull
4252 = −55ºC
and 85ºC
before Weibull
TLVL = Weibull
Grade Level
"T"
7280
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
7610 = Bag
7005 = Moisture
bags
Capacitance
Rated Voltage
Tolerance
(VDC)
T=
CWR 09
Tantalum Established
Reliability
Ordering Information – Defense MIL–PRF–55365/4
CWR09
Capacitor Style
Per MIL–PRF–
55365/4
J
Rated Voltage
(VDC)
C=4
D = 6
F = 10
H = 15
J = 20
K = 25
M = 35
N = 50
H
Termination
Finish
B = Gold Plated
C = Hot solder
dipped
H = Solder
Plated
K = Solder
fused
105
Capacitance Code
(pF)
First two digits
represent significant
figures. Third digit
specifies number of
zeros.
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
C
Reliability Level
Weibull
A = non-ER
B = (0.1%/1,000 hours)
C = (0.01%/1,000 hours)
D =(0.001%/1,000 hours)
T= T Level* (0.01%/1,000 hours)
Exponential
M = (1.0%/1,000 hours)
P = (0.1%/1,000 hours)
R = (0.01%/1,000 hours)
S =(0.001%/1,000 hours)
A
Surge Current Option
A = +25°C after Weibull
B = −55°C +85°C after Weibull
C = −55°C +85°C before Weibull
Blank = No Surge
* When T Level is ordered, no Surge Current Option is needed
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.1 – 100 µF @ 120 Hz/25°C
J Tolerance (5%), K Tolerance (10%), M Tolerance (20%)
4 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2001_T409 • 2/18/2016
2
Tantalum Surface Mount Capacitors – MIL–PRF (CWR Style)
T409 Series MIL–PRF–55365/4 (CWR09 Style)
Qualification
Test
Endurance
Condition
Δ C/C
85°C @ rated voltage, 2,000 hours
125°C @ 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted,
−55°C to 125°C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +125°C, +25°C
+25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
−55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±15%
1.5 x IL
12 x IL
Storage Life
125°C @ 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
Mechanical Shock/Vibration
Additional qualification tests
per MIL–PRF–55365/4
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
Please contact KEMET for more information.
Certification
MIL–PRF–55365/4
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2001_T409 • 2/18/2016
3
Tantalum Surface Mount Capacitors – MIL–PRF (CWR Style)
T409 Series MIL–PRF–55365/4 (CWR09 Style)
Electrical Characteristics

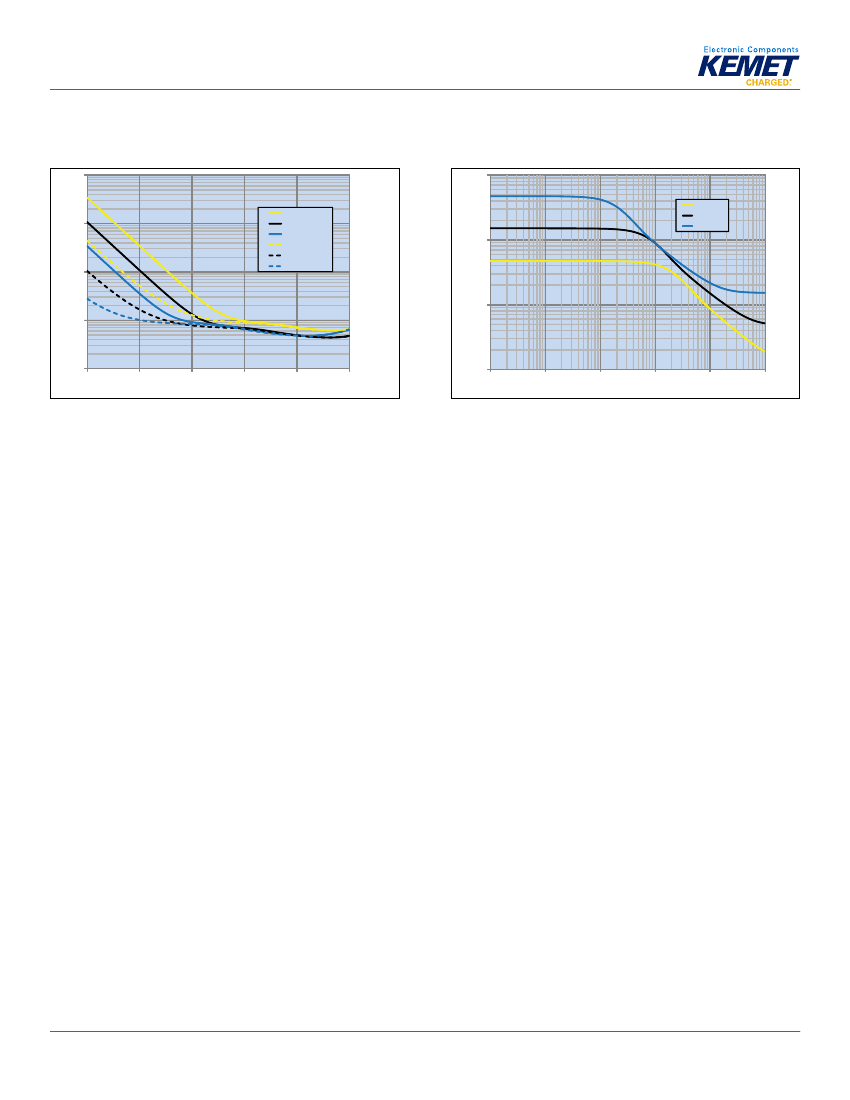

ESR vs. Frequency
1000
100
T409D475/010
Capacitance vs. Frequency
Impedance, ESR (Ohms)
T409D475/010_IMP
100
T409F156/010
T409H476/010
T409F156/010_IMP
T409H476/010_IMP
T409D475/010_ESR
T409F156/010_ESR
Capacitance (µF)
10,000,000
10
10
T409F476/010_ESR
1
1
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2001_T409 • 2/18/2016
4
Tantalum Surface Mount Capacitors – MIL–PRF (CWR Style)
T409 Series MIL–PRF–55365/4 (CWR09 Style)
Dimensions – Millimeters (Inches)
Metric will govern
SIDE VIEW
L
H
P
P
Termination cutout
at KEMET's option,
either end
END VIEW
W
Solderable
Surfaces
BOTTOM VIEW
H
2
W
2
½ H
2
Min.
Case Size
KEMET
A
B
C
D
E
F
G
H
L ±0.38 (0.015)
2.54 (0.100)
3.81 (0.150)
5.08 (0.200)
3.81 (0.150)
5.08 (0.200)
5.59 (0.220)
6.73 (0.265)
7.24 (0.285)
W ±0.38 (0.015)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
2.54 (0.100)
2.54 (0.100)
3.43 (0.135)
2.79 (0.110)
3.81 (0.150)
Component
H ±0.38 (0.015)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.78 (0.070)
2.79 (0.110)
2.79 (0.110)
P +0.25 (0.010),
-0.13 (0.005)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
1.27 (0.050)
1.27 (0.050)
W
2
1.27 ±0.13
(0.050 ±0.005)
1.27 ±0.13
(0.050 ±0.005)
1.27 ±0.13
(0.050 ±0.005)
2.41 +0.13, -0.25
(0.095 +0.005, -0.010)
2.41 +0.13, -0.25
(0.095 +0.005, -0.010)
3.30 ±0.13
(0.130 ±0.005)
2.67 ±0.13
(0.105 ±0.005)
3.68 +0.013, -0.51
(0.145 +0.005, -0.020)
H
2
Minimum
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
1.02 (0.040)
1.52 (0.060)
1.52 (0.060)
Total Weight
(mg)
39.91
68.73
146.5
264.12
421.63
173.63
266.42
349.01
Note: When option C is selected for lead material, add an additional 0.38 mm (0.015 inch) to the above tolerances for "L", "W", "H", "P", "W2" and "H2"
These weights are provided as reference. If exact weights are needed, please contact your KEMET Sales Representative
