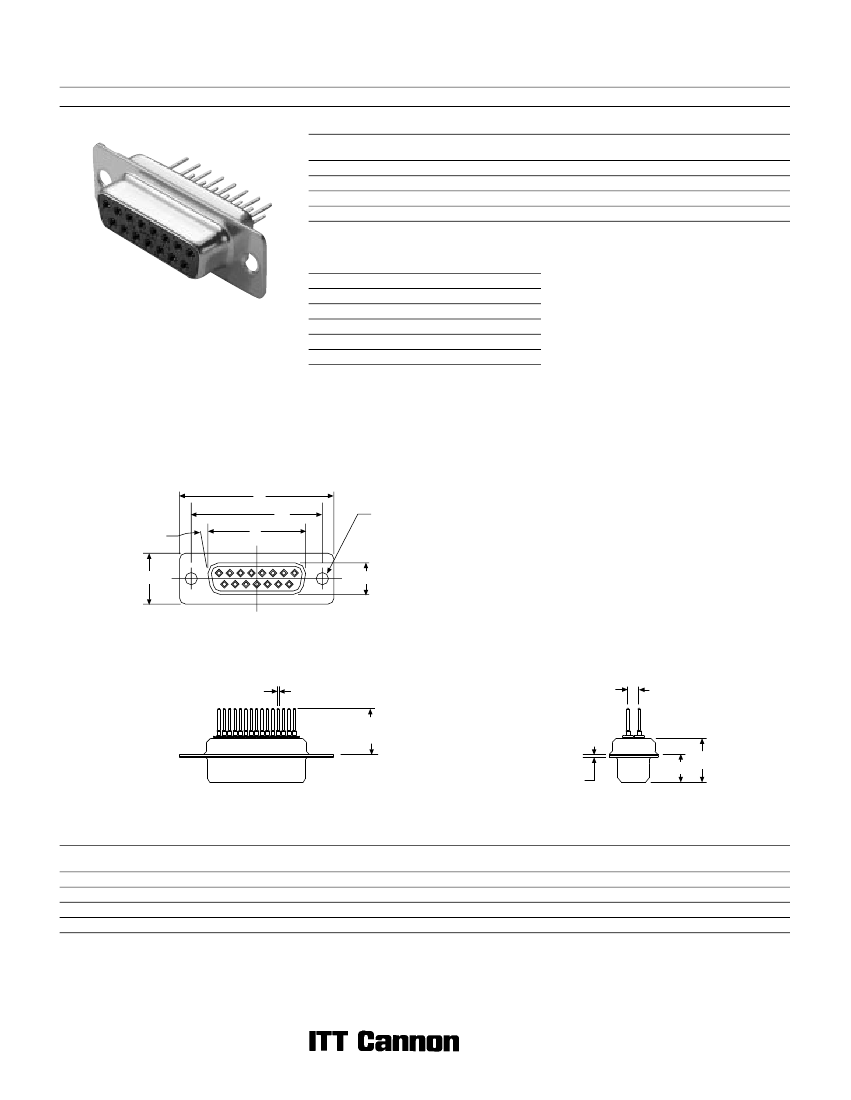

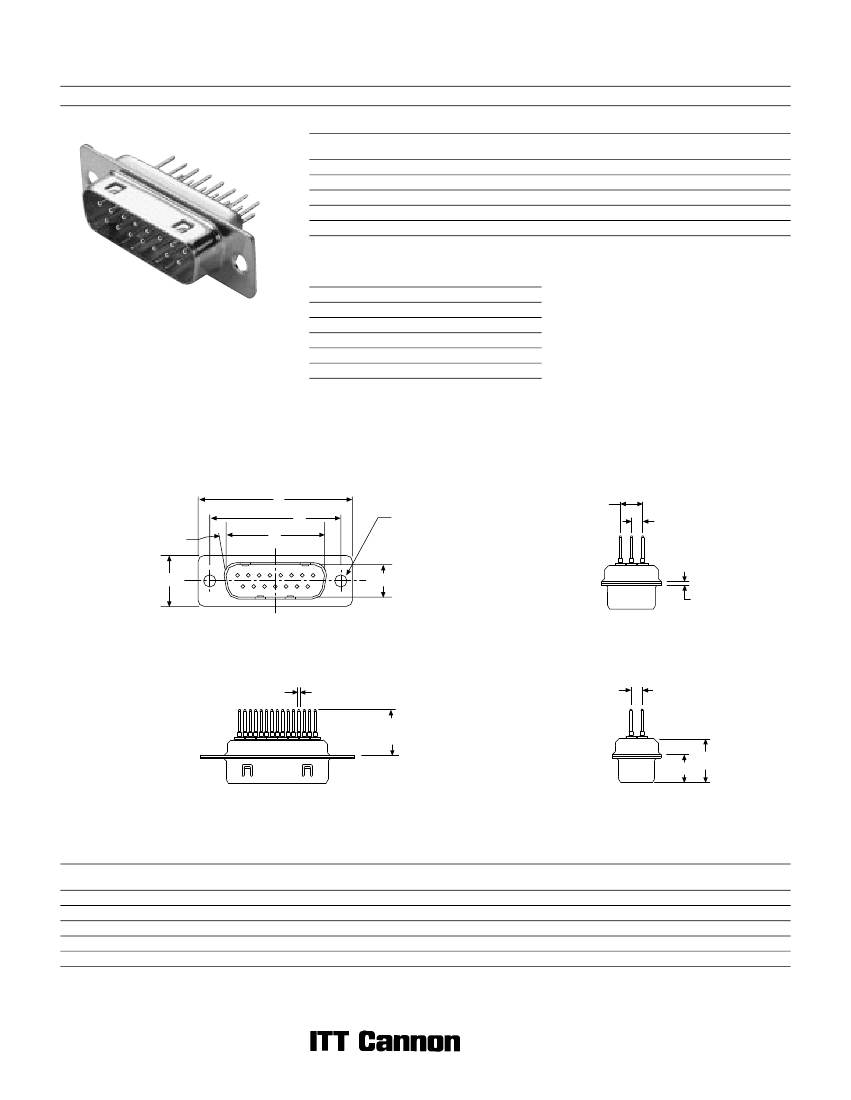

D Subminiature
D*JK — Straight P.C. Tails
Plug
Part Numbers
Shell Size
DE
DA
DB
DC
DD
Layout
9
15
25
37
50
Through Hole
DEJK9P*-OL4
DAJK15P*-OL4
DBJK25P*-OL4
DCJK37P*-OL4
DDJK50P*-OL4
Clinch Nut
#4-40 UNC
DEJKE9P*-OL4
DAJKE15P*-OL4
DBJKE25P*-OL4
DCJKE37P*-OL4
DDJKE50P*-OL4
Clinch Nut
M3
DEJKX9P*-OL4
DAJKX15P*-OL4
DBJKX25P*-OL4
DCJKX37P*-OL4
DDJKX50P*-OL4
Pushfit/Boardlock
#4-40 UNC
DEJKE9P*-OL4-146
DAJKE15P*-OL4-146
DBJKE25P*-OL4-146
DCJKE37P*-OL4-146
DDJKE50P*-OL4-146
Filter D
Pushfit/Boardlock
M3
DEJKX9P*-OL4-146
DAJKX15P*-OL4-146
DBJKX25P*-OL4-146
DCJKX37P*-OL4-146
DDJKX50P*-OL4-146
* Insert filter designator. Example: DEJK9P4-0L4 (for 1000 pF filter capacitance)
Note: For performance class 1 add -A190. Example: DEJK9P1-0L4-A190
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 274.
For panel cutouts, see page 221.
For Hardware views (European),
see page 227.
For pushfit/boardlock configuration,
see page 225.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
A
C
10°
1
DD Configuration
5,68 (.224)
Ø 3,05 (.120)
2,84 (.112)
B
8
E
9
15
D
L
Ø 0,60 (.024)
11,70
±
0,20
(.461
±
.008)
2,84 (.112)
W
F
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
52,81 (2.079)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
11,07 (.439)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.607)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
—
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
0,99 (.039)
120
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
D*JK — Straight P.C. Tails
Receptacle
Part Numbers
Shell Size
DE
DA
DB
DC
Layout
9
15
25
37
Through Hole
DEJK9S*-OL4
DAJK15S*-OL4
DBJK25S*-OL4
DCJK37S*-OL4
Clinch Nut
#4-40 UNC
DEJKE9S*-OL4
DAJKE15S*-OL4
DBJKE25S*-OL4
DCJKE37S*-OL4
Clinch Nut
M3
DEJKX9S*-OL4
DAJKX15S*-OL4
DBJKX25S*-OL4
DCJKX37S*-OL4
Pushfit/Boardlock
#4-40 UNC
DEJKE9S*-OL4-146
DAJKE15S*-OL4-146
DBJKE25S*-OL4-146
DCJKE37S*-OL4-146
Filter D
Pushfit/Boardlock
M3
DEJKX9S*-OL4-146
DAJKX15S*-OL4-146
DBJKX25S*-OL4-146
DCJKX37S*-OL4-146
* Insert filter designator. Example: DEJK9S4-OL4 (for 1000 pF filter capacitance)
Note: For performance class 1 add -A190. Example: DEJK9S1-OL4-A190
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 274.
For panel cutouts, see page 221.
For Hardware views (European),
see page 227.
For pushfit/boardlock configuration,
see page 225.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
A
C
10°
B
Ø 3,05 (.120)
8
E
1
9
15
D
Ø 0,60 (.024)
11,70
±
0,20
(.461
±
.008)
2,84 (.112)
W
L
F
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Dimensions are shown in mm (inch)
Dimensions subject to change
