2N1149 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N1149

2N1149: DescriptionSmall Signal Bipolar Transistor, 0.025A I(C), 1-Element, NPN, Silicon, TO-22VAR, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size92KB，1 Pages; ManufacturerSemiconductor Technology Inc

Download Datasheet Parametric Compare View All

2N1149 Overview

Small Signal Bipolar Transistor, 0.025A I(C), 1-Element, NPN, Silicon, TO-22VAR, 3 PIN

2N1149 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-22
package instruction	CYLINDRICAL, R-XBCY-W3
Contacts	3
Reach Compliance Code	compliant
Maximum collector current (IC)	0.025 A
Configuration	Single
Minimum DC current gain (hFE)	13
JESD-30 code	R-XBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	12 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

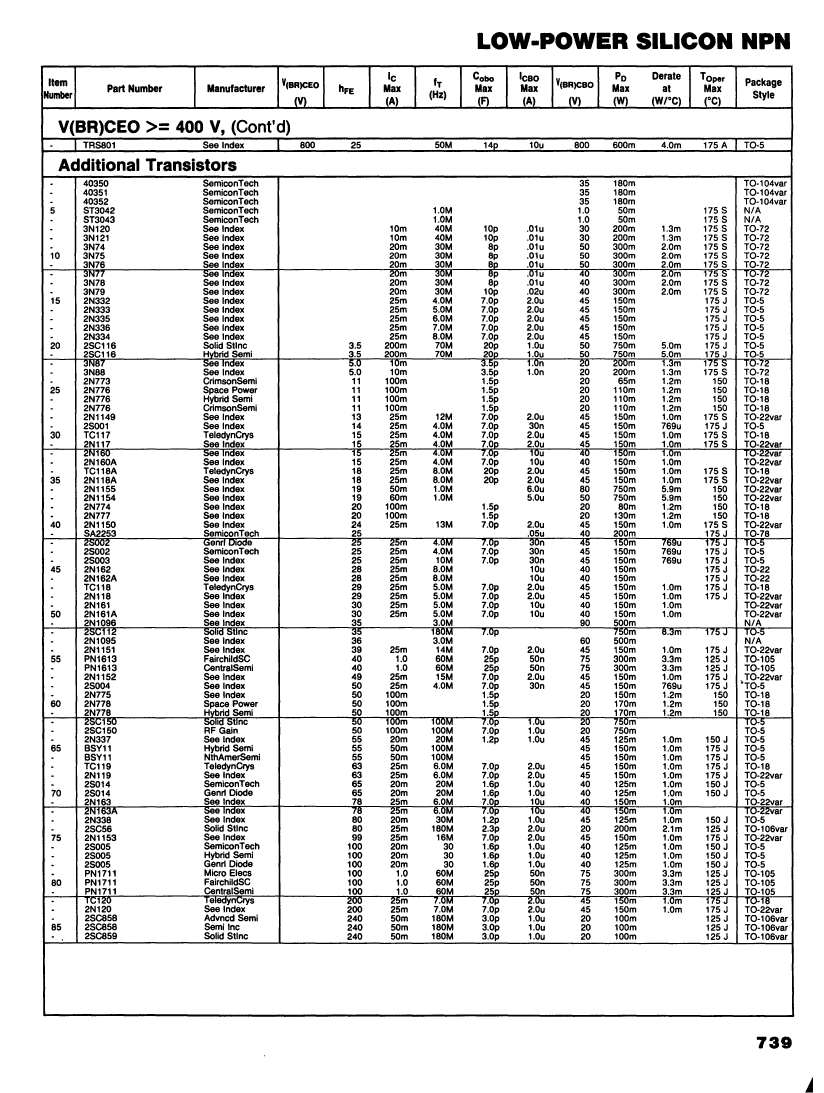

LOW-POWER SILICON NPN
