54S181/BKA datasheet, PDF - EEWORLD Datasheet

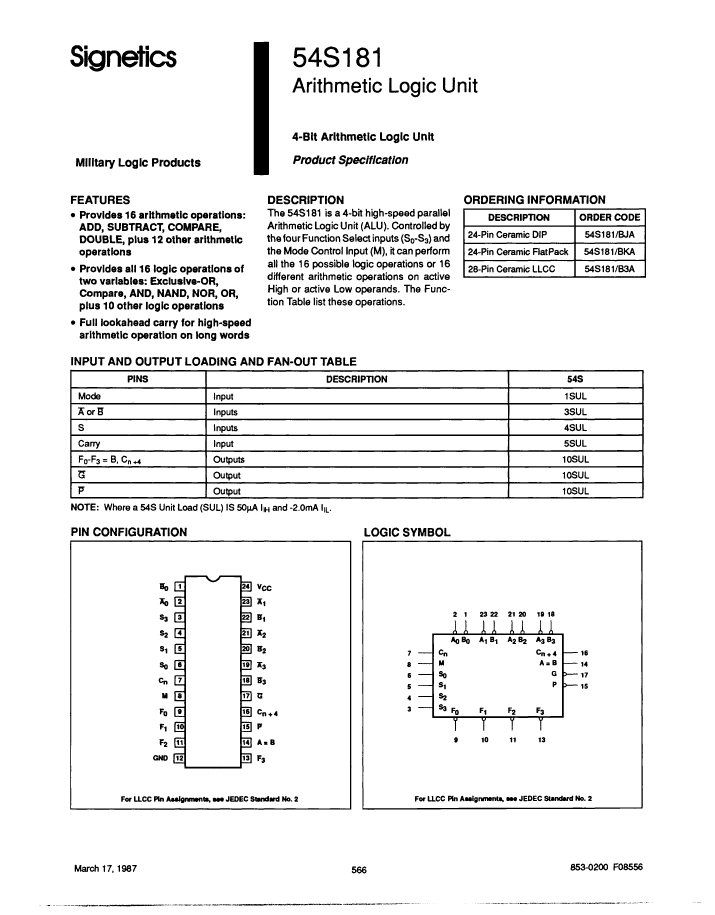

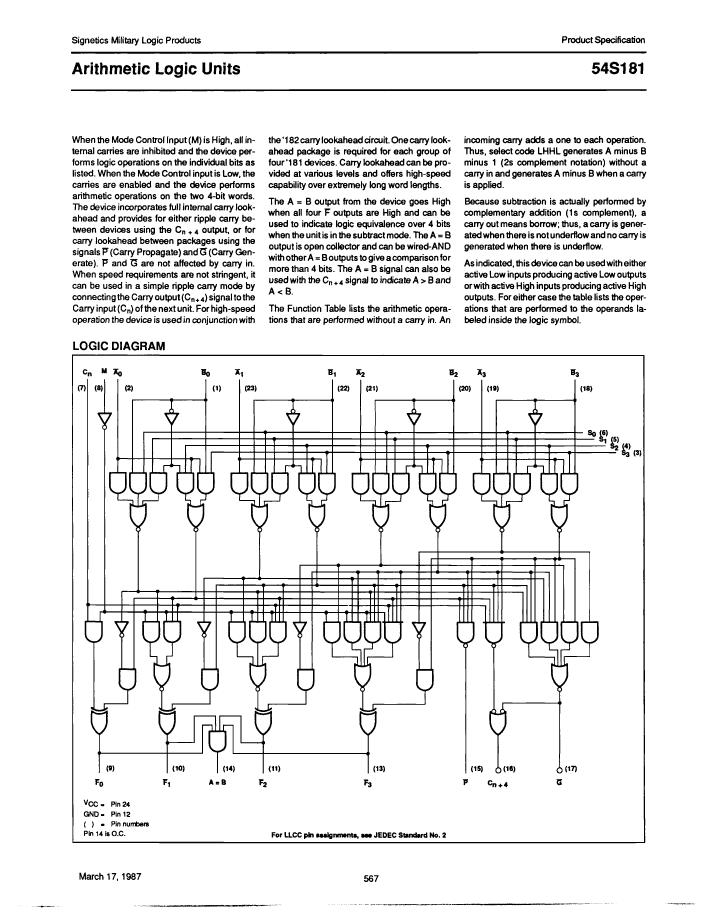

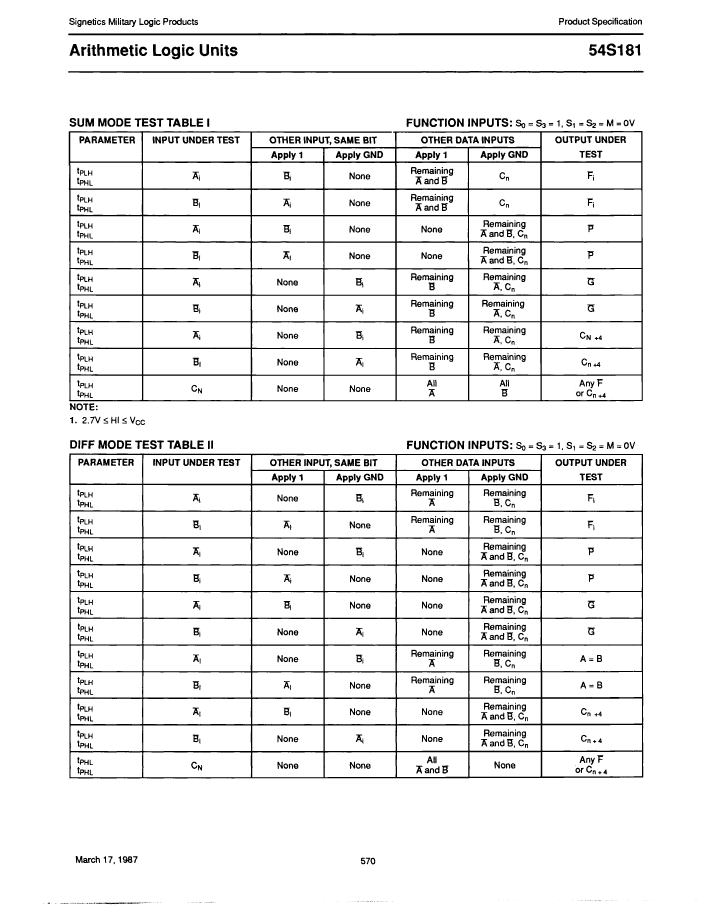

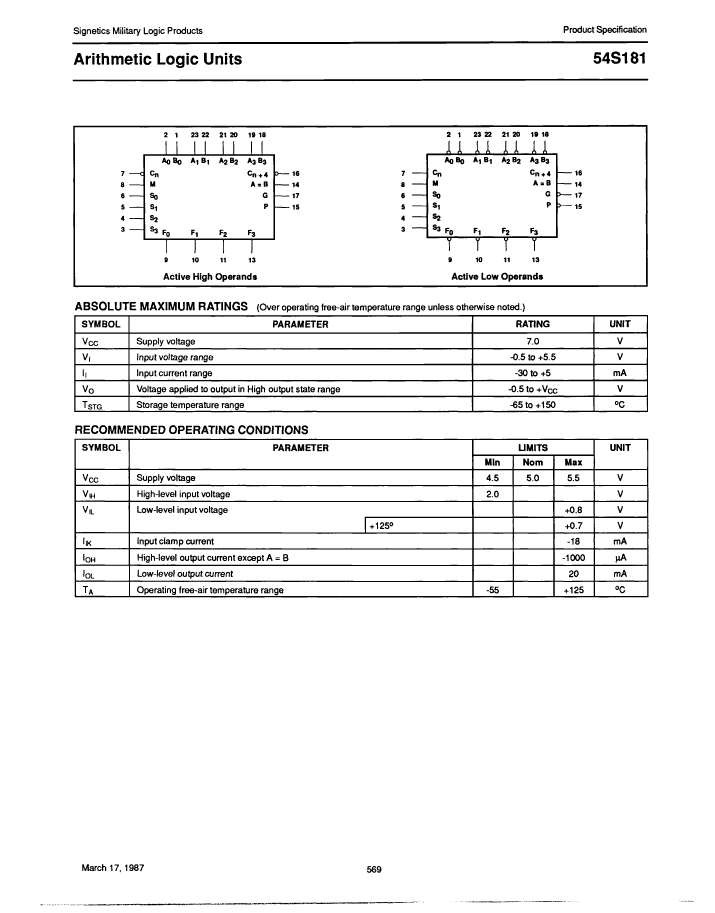

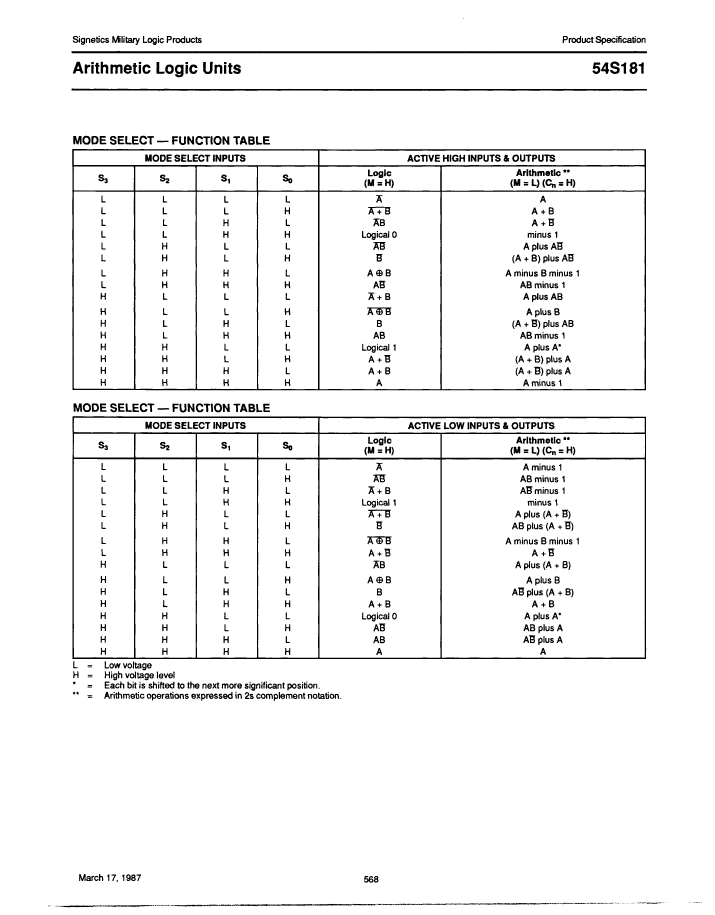

54S181/BKA: DescriptionArithmetic Logic Unit, S Series, 4-Bit, TTL, CDFP24; Categorylogic logic; File Size372KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54S181/BKA Overview

Arithmetic Logic Unit, S Series, 4-Bit, TTL, CDFP24

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS
series	S
JESD-30 code	R-CDFP-F24
Load capacitance (CL)	50 pF
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of digits	4
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	220 mA
propagation delay (tpd)	36 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

	54S181/BKA	54S181/BJA	54S181/B3A
Description	Arithmetic Logic Unit, S Series, 4-Bit, TTL, CDFP24	Arithmetic Logic Unit, S Series, 4-Bit, TTL, CDIP24	Arithmetic Logic Unit, S Series, 4-Bit, TTL, CQCC28
Reach Compliance Code	unknown	unknown	unknown
Other features	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS	CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS
series	S	S	S
JESD-30 code	R-CDFP-F24	R-CDIP-T24	S-CQCC-N28
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	24	24	28
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Maximum supply current (ICC)	220 mA	220 mA	220 mA
propagation delay (tpd)	36 ns	36 ns	36 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	-
Maker	-	YAGEO	YAGEO
