SHIELDED LOW DCR HIGH CURRENT POWER INDUCTOR
ASVC
FEATURES:
• Shielded construction, auto machine assembly
• High saturation point and high current
• High frequency up to 1.0 MHz
• Auto machine winding to low DC resistance
• All lead-free (ROHS - no Pb)
APPLICATIONS:
• PC servers and computer motherboards
• DC/DC converter in distributed power systems
• Different core materials for a variety of applications
Pb
RoHS
Compliant
Size varies
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Operating temperature:
Storage temperature:
Test Condition:
RI Core Material:
ASVC Series
-40°C to + 125°C
-40°C to + 125°C, 70% RH max.
1.0V/100KHz
P:Iron Core, T: Iron +Mn-Zn dual materials, C: Iron core with cover
DCR (mΩ)
max. @25ºC
Electrical Characteristics / ASVC-1310P
Part Number
ASVC-1310-R47
ASVC-1310-R60
ASVC-1310-R80
ASVC-1310-1R0
ASVC-1310-1R5
ASVC-1310-2R0
ASVC-1310-2R4
ASVC-1310-3R3
L (μH)*
0.47
0.60
0.80
1.00
1.50
2.00
2.40
3.30
IDC (A)
typ.**
50000
50000
50000
45000
42000
35000
25000
22000
I-sat(A)
max.***
40000
40000
39000
34000
31000
24000
20000
18000
0.90
0.90
0.90
1.40
2.30
3.50
3.50
5.00
Electrical Characteristics / ASVC-1108P
Part Number
ASVC-1108-R47
ASVC-1108-R60
ASVC-1108-R80
ASVC-1108-1R0
ASVC-1108-1R5
ASVC-1108-2R0
L (μH)*
0.47
0.60
0.80
1.00
1.50
2.00
DCR (mΩ)
max. @25ºC
0.95
0.95
1.60
1.60
2.20
4.00
IDC (A)
typ.**
50000
50000
45000
35000
25000
30000
I-sat(A)
max.***
38000
38000
33000
32000
31000
21000
Electrical Characteristics / ASVC-1108C
Part Number
ASVC-1108C-R47
ASVC-1108C-R60
ASVC-1108C-R80
ASVC-1108C-1R0
ASVC-1108C-1R5
ASVC-1108C-2R0
L (μH)*
0.47
0.60
0.80
1.00
1.50
2.00
DCR (mΩ)
max. @25ºC
0.95
0.95
1.60
1.60
2.20
4.00
IDC (A)
typ.**
50000
50000
45000
35000
25000
30000
I-sat(A)
max.***
43000
43000
38000
36000
34000
26000
Electrical Characteristics / ASVC-1108T
Part Number
ASVC-1108T-R25
ASVC-1108T-R35
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
L (μH)*
0.25
0.35
DCR (mΩ)
max. @25ºC
IDC (A)
typ.**
50000
40000
I-sat(A)
max.***
48000
48000
0.80
0.80
Revised: 10.10.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SHIELDED LOW DCR HIGH CURRENT POWER INDUCTOR
ASVC

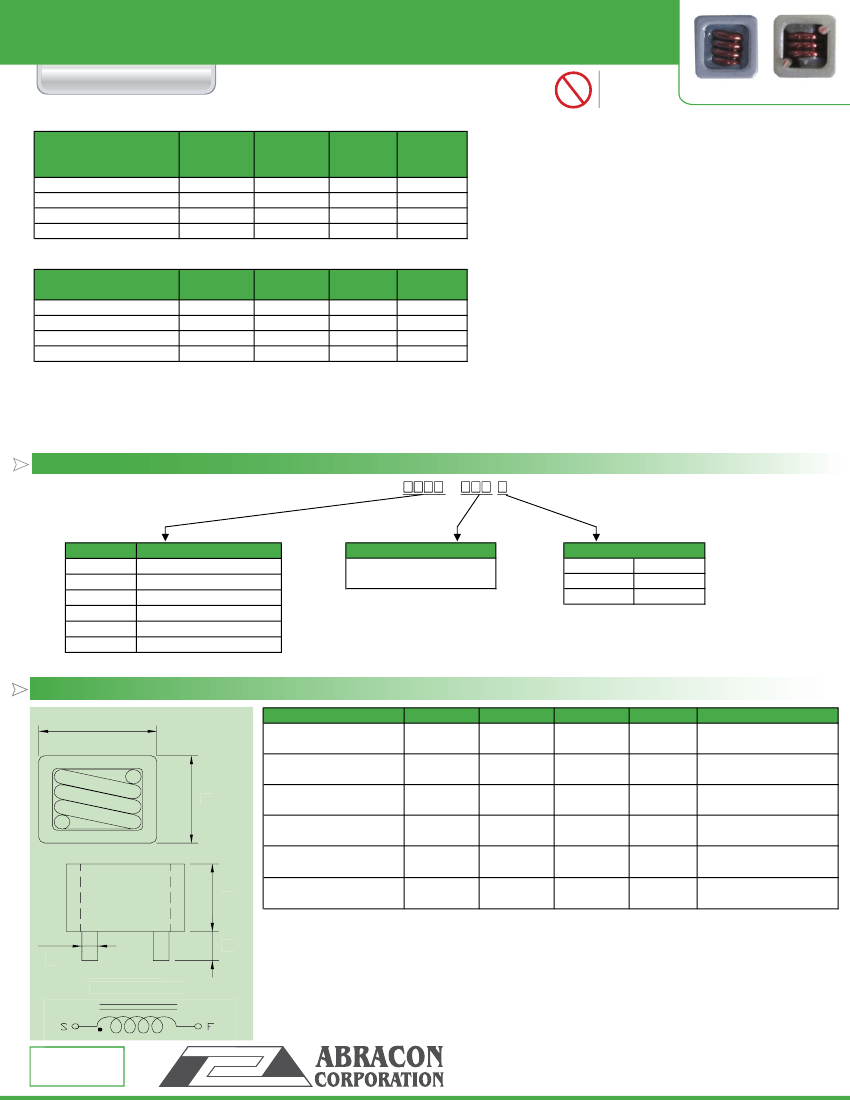

Electrical Characteristics / ASVC-0806P
Part Number
ASVC-0806-R47
ASVC-0806-R60
ASVC-0806-R80
ASVC-0806-1R0
L (μH)*
0.47
0.60
0.80
1.00
DCR (mΩ)
max. @25ºC
Pb
RoHS
Compliant
IDC (A)
typ.**
40000
35000
27000
22000
I-sat(A)
max.***
28000
28000
22000
18000
Size varies
| | | | | | | | | | | | | | |
2.30
2.30
3.50
5.20
Electrical Characteristics / ASVC-0806C
Part Number
ASVC-0806C-R56
ASVC-0806C-R68
ASVC-0806C-R82
ASVC-0806C-1R2
L (μH)*
0.56
0.68
0.82
1.20
DCR (mΩ)
max. @25ºC
2.30
2.30
3.50
5.20
IDC (A)
typ.**
23000
21000
17000
17000
I-sat(A)
max.***
25000
20000
17000
21000
Note:
(*) L Test parameters: 100KHz, 1.0Vrms, 0Adc.
(**) Idc: Heating current that will cause an approximate
∆T
of 40°C without core loss; please contact our sales department for details
(***) I-sat : saturation current that will cause L approximately 20% rolloff with 25°C ambient
P, C, T means core material code
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
ASVC -
-
Series
0806P
0806C
1108P
1108C
1108T
1310P
Dimension (max.)
8.2x8.2x6.0mm
8.2x8.2x7.0mm
11.7x11.7x8.5mm
11.7x11.7x9.5mm
11.7x9.7x8.5mm
13.5x12.5x10.0mm
Inductance Code
Please refer to the Tables
above.
Inductance Tolerance
J
±5%
K
±10%
M
±20%
OUTLINE DRAWING:
A
Dimensions: mm
Series
ASVC-1310P
ASVC-1108P
A (max)
0.531
(13.5)
0.461
(11.7)
0.461
(11.7)
0.461
(11.7)
0.323
(8.2)
0.323
(8.2)
B (max)
0.492
(12.5)
0.461
(11.7)
0.461
(11.7)
0.461
(9.7)
0.323
(8.2)
0.323
(8.2)
C
0.138 ± 0.020
(3.5 ±0.5)
0.138 ± 0.020
(3.5 ±0.5)
0.138 ± 0.020
ASVC-1108C
ASVC-1108T
ASVC-0806P
(3.5 ±0.5)
0.138 ± 0.020
(3.5 ±0.5)
0.138 ± 0.020
(3.5 ±0.5)
0.138 ± 0.020
D
ASVC-0806C
(3.5 ±0.5)
D (max)
0.394
(10)
0.335
(8.5)
0.374
(9.5)
0.335
(8.5)
0.236
(6.0)
0.276
(7.0)
E
Φ0.04~Φ0.07
(Φ1.0~Φ1.7)
Φ.003~Φ0.06
(Φ0.8~Φ1.5)
Φ.003~Φ0.06
(Φ0.8~Φ1.5)
Φ0.055
(Φ1.4)
Φ0.03~Φ0.04
(Φ0.7~Φ0.9)
Φ0.03~Φ0.04
(Φ0.7~Φ0.9)
B
E
Circuit Diagram
C
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 10.10.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SHIELDED LOW DCR HIGH CURRENT POWER INDUCTOR
ASVC

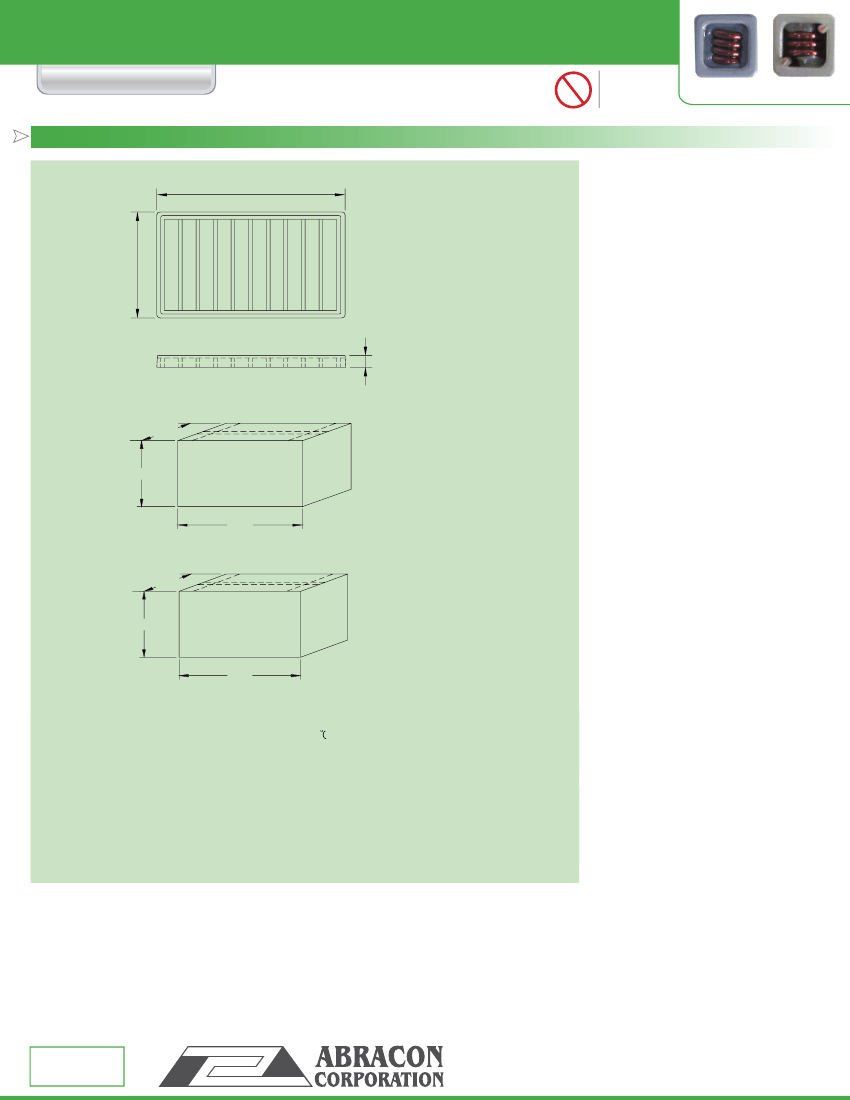

PACKING:
QUANTITY = 100PCS/PVC; PVC CASE = 230*150*15m/m
230
Pb
RoHS
Compliant
Size varies
| | | | | | | | | | | | | | |
150
156
INBOX SIZE 238*156*160m/m
E:
QUANTITY: 8PVC CASE/BOX
160
238
251
OUTBOX SIZE: 320*251*170m/m
S
QUANTITY: 2 INBOX/OUTBOX
170
328
Storage
1. Temperature and humidity conditions: Less than 40 and 70% RH.
℃
0
2. Recommended products should be used within 6 months form the time of delivery.
3. The packaging material should be kept where no chlorine or sulfur exists in the air.
Storage
1. Products should be handled with care to avoid damage or contamination from perspiration
and skin oils.
2. The use of tweezers or vacuum pick up is strongly recommended for individual components.
3. Bulk handling should ensure that abrasion and mechanical shock are minimized.
15
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 10.10.07
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
