AE83387R16109 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> AE83387R16109

Preview

AE83387R16109: DescriptionMIL Series Connector, 10 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size179KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html; Environmental Compliance

Download Datasheet Parametric View All

AE83387R16109 Overview

MIL Series Connector, 10 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

AE83387R16109 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83723 SERIES III, COMPATIBLE CONTACT: M39029/4-111
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	AE833
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	CRIMP
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

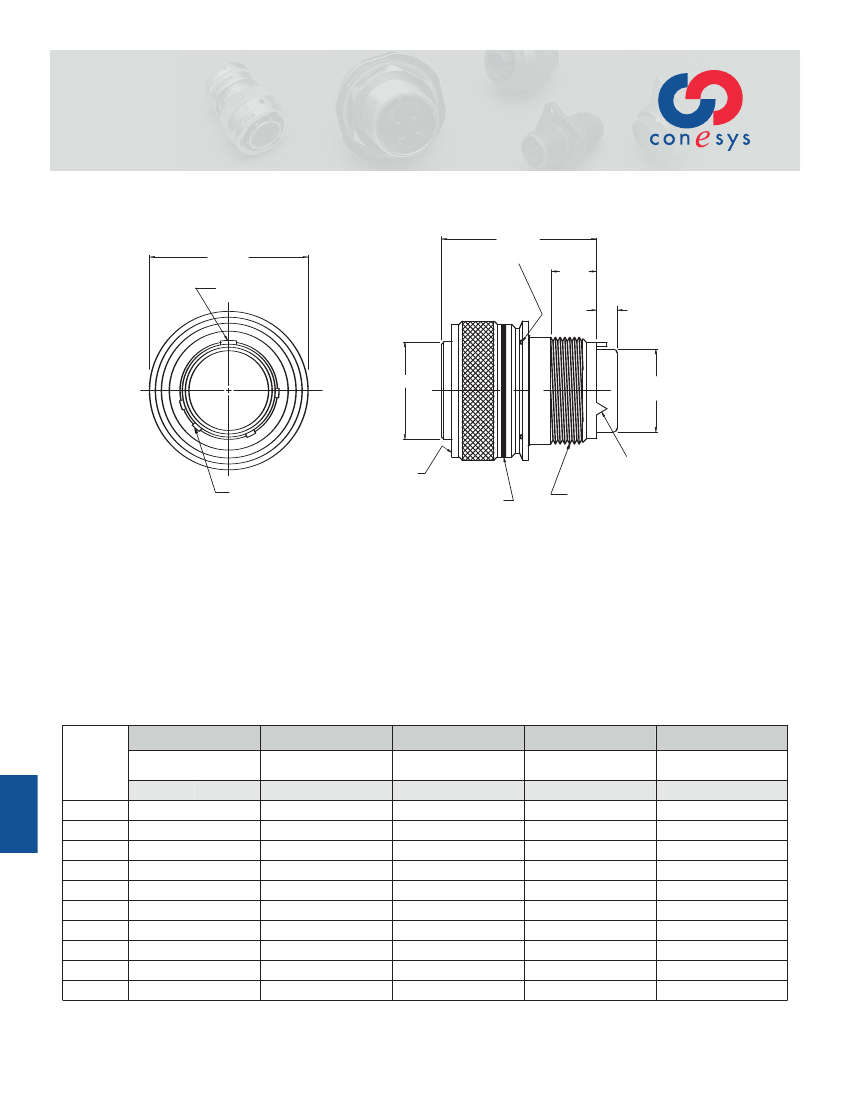

M83723/86, 87

Straight Plug

AE83386, 87

Threaded Coupling, Crimp Removable, Rear Release

1.180(29.97)

MAX

.290(7.37)

MIN

FULL

THREAD

.190(4.83)

.130(3.30)

GROMMET

EXTENSION

B

MAX

COUPLING NUT

MASTER KEY

3x .035(.89)

SAFETY WIRE HOLES

A

C

MAX GROMMET

D

MATING THREAD

4 MINOR KEYS

BLUE COLOR BAND

3 ACCESSORY TEETH

EQUALLY SPACED

E

ACCESSORY THREAD

Page 93

Page 104

Pages 107 108

,

Page 87

Page 106

Page 102

MIL–DTL–

83723 S III

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

A

Shell

Size

8

10

12

14

16

18

20

22

24

28

+.005

-.004

inch

.400

.521

.691

.760

.887

.993

1.118

1.243

1.368

1.618

+.13

-.10

mm

10.16

13.23

17.55

19.30

22.53

25.22

28.40

31.57

34.75

41.10

B

Maximum

inch

.776

.906

1.078

1.141

1.266

1.375

1.510

1.625

1.760

2.050

mm

19.71

23.01

27.38

28.98

32.16

34.93

38.35

41.28

44.70

52.07

C

Maximum

inch

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

1.475

mm

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

37.47

D

Mating Thread

Class 2B

9/16-24UNEF

11/16-24UNEF

7/8-20UNEF

15/16-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

1-9/16-18UNEF

1-13/16-16UN

E

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

1-3/4-18UNS

www.conesys.com

– 96 –

sales

@

aero-electric.com
