B
- Fillister Head Jackscrew
Cable Entry Code
Micro-D Backshells
Sample Part Number
Series
Shell Finish
Connector Size
Hardware Option
507T088
- Top Entry
XM -
Electroless Nickel
04
– .125 (3.2)
05
– .156 (4.0)
06
– .188 (4.8)
07
– .219 (5.6)
08
– .250 (6.4)
09
– .281 (7.1)
10
– .312 (7.9)
11
– .344 (8.7)
12
– .375 (9.5)
(See Table IV)
507-088

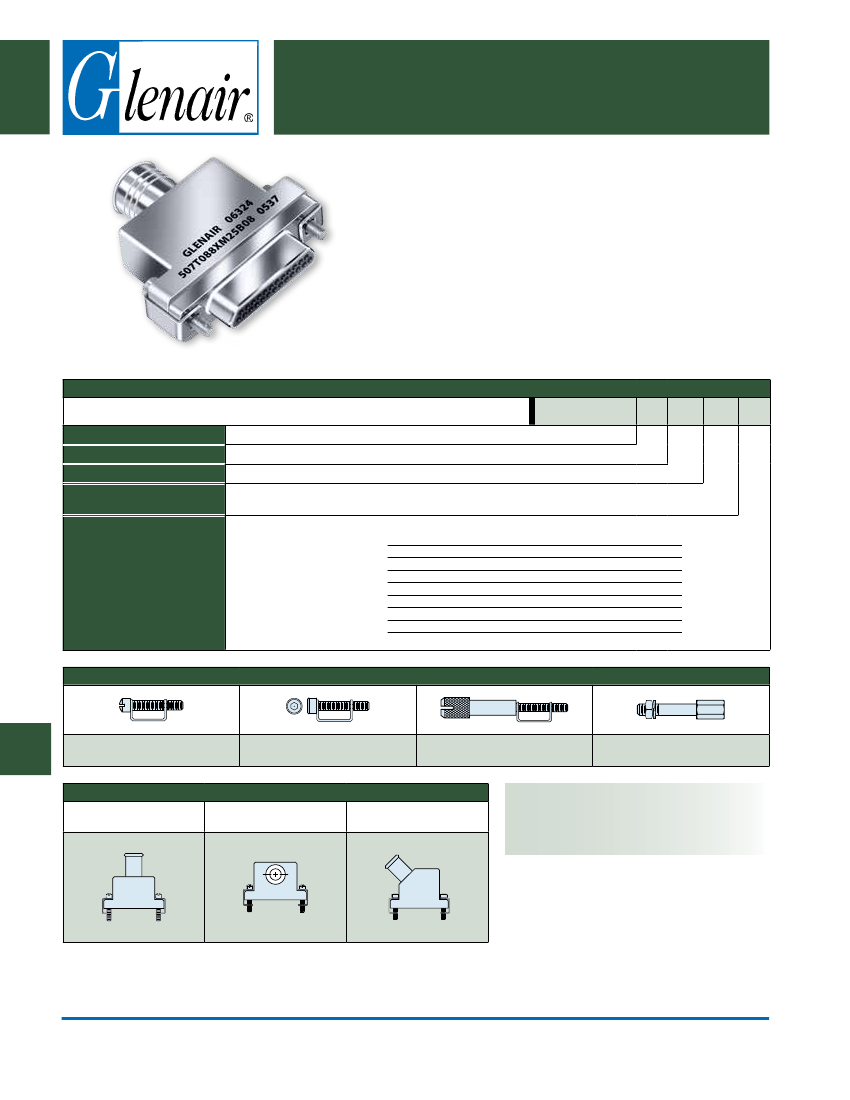

Composite EMI/RFI Banding Backshell
Round Cable Entry
Save Weight and Eliminate Corrosion Damage
with composite
Micro-D backshells. These round cable entry backshells are injection-
molded with high strength Ultem 2300 fiberglass-reinforced
thermoplastic.
Choose Top, Side or 45° Cable Entry.
Electroless Nickel Plated
for excellent EMI shielding effectiveness.
How To Order EMI/RFI Banding Backshells
507T088
507S088
- Side Entry
507E088
- 45° Entry
(See Table III)
H
– Hex Head Jackscrew
F
- Jackpost, Female
(See Table I)
(See Table II)
xM
25
h
08
09, 15, 21, 25, 31, 37 51, 100
B
– Fillister Head Jackscrew
E
– Extended Jackscrew (Not Available for 45° Cable Entry)
Maximum Cable Entry Per Entry Style and Shell Size Selections
Size
T Top Entry
E 45° Entry
S Side Entry
9
08
08
09
15
08
08
12
21
08
08
12
25
08
08
12
31
09
09
12
37
09
09
12
51
10
10
12
100
12
12
12
Table I: Hardware Option
H
- Hex Head Jackscrew
E
- Extended Jackscrew
(Not for 45° Entry)
F
- Jackpost, Female
Table II: Entry Styles
507T088
Top Entry
507S088
Side Entry
507E088
45° Entry
Materials
• Shell: Ultem 2300
• Clips: 17-7PH Stainless Steel
• Hardware: 300 Series Stainless Steel
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
M-12
E-Mail: sales@glenair.com
507-088
Composite EMI/RFI Banding Backshell
Round Cable Entry

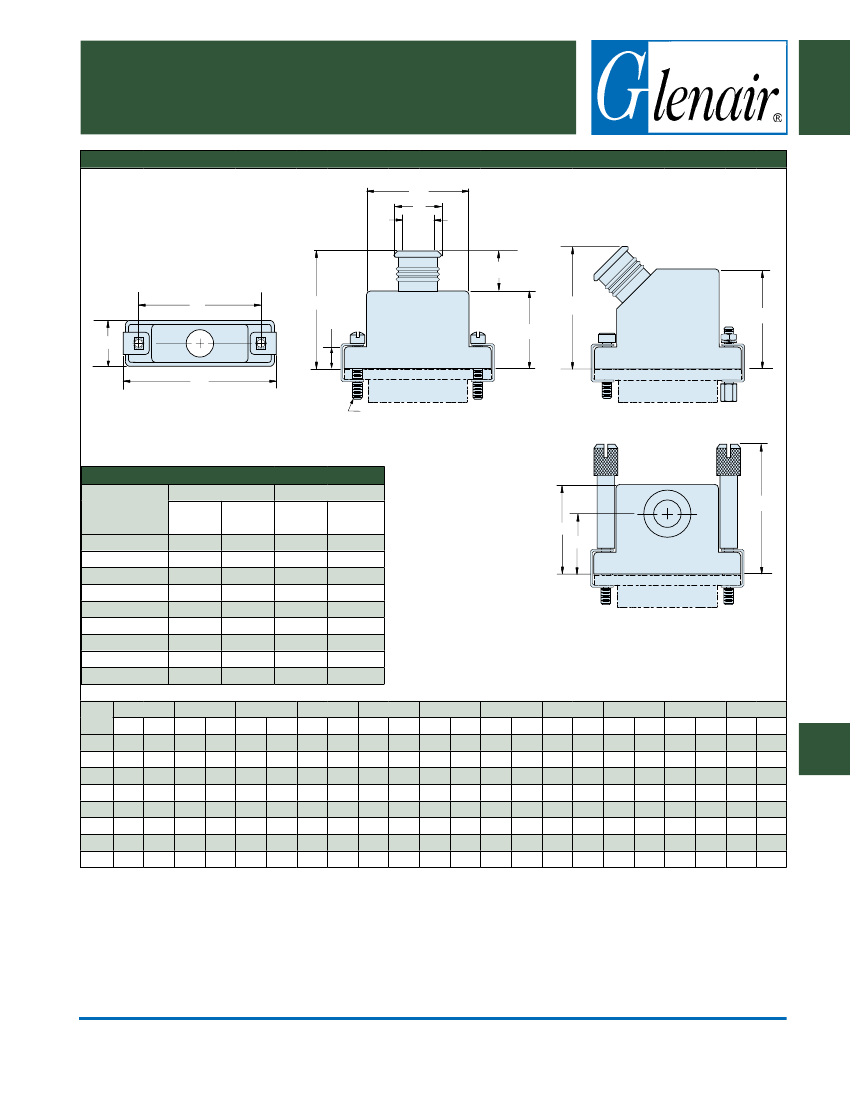

Table III: Dimensions
E
G
F
A
B
C
N
.32 (8.1)
C
B
A
D
.175 (4.4)
M
H
SHOWN WITH B FILLISTER HEAD
JACKSCREW
CONNECTOR ORDERED
SEPARATELY
T - TOP ENTRY
E - 45º ENTRY
SHOWN WITH H HEX HEAD
JACKSCREW AND F FEMALE POST
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
CONNECTOR ORDERED
SEPARATELY
#2-56 UNC THDS. 9-51 PIN
#4-40 UNC THDS. 100 PIN
Table IV: Cable Entry Codes
Cable
Entry Code
04
05
06
07
08
09
10
11
12
A Max.
In. mm.
F
In.
± .010
.125
.156
.188
.219
.250
.281
.312
.344
.375
B Max.
In. mm.
9.40
9.40
9.40
mm.
± 0.25
3.18
3.96
4.78
5.56
6.35
7.14
7.92
8.74
9.53
C
In.
mm.
In.
.219
.250
.281
.313
.344
.375
.406
.438
.469
G
mm.
5.56
6.35
7.14
7.95
8.74
9.53
10.31
11.13
11.92
E Max.
In. mm.
H Max.
In. mm.
J Max.
In. mm.
K
In.
mm.
L Max.
In. mm.
M Max.
In. mm.
N Max.
In. mm.
J
L
K
S - SIDE ENTRY
SHOWN WITH E EXTENDED
JACKSCREW
CONNECTOR ORDERED
SEPARATELY
Size
09
15
21
25
31
37
D Max.
In. mm.
.850 21.59 .370
1.000 25.40 .370
1.150 29.21 .370
1.250 31.75 .370
1.400 35.56 .370
1.550 39.37 .370
.565 14.35 .780 19.81 .410 10.41 .460 8.89 .680 17.27 .435 11.05 1.040 26.42 1.000 25.40 .680 17.27
.715 18.16 .790 20.07 .580 14.73 .470 11.94 .730 18.54 .440 11.2 1.170 29.72 1.030 26.16 .730 18.54
.865 21.97 .910 23.11 .740 18.80 .590 14.99 .765 19.43 .458 11.63 1.290 32.77 1.050 26.67 .765 19.43
9.40 .965 24.51 .970 24.64 .850 21.59 .650 16.51 .830 21.08 .483 12.27 1.350 34.29 1.090 27.69 .830 21.08
9.40 1.115 28.32 1.030 26.16 .980 24.89 .710 18.03 .890 20.32 .476 12.09 1.420 36.07 1.130 28.70 .890 22.61
9.40 1.265 32.13 1.070 27.18 1.130 28.70 .750 19.05 .955 24.26 .478 12.14 1.450 36.83 1.230 31.24 .955 24.26
51
1.500 38.10 .410 10.41 1.215 30.86 1.100 27.94 1.080 27.43 .780 19.81 1.005 25.53 .548 13.91 1.480 37.59 1.250 31.75 1.005 25.53
100
2.235 56.77 .460 11.68 1.800 45.72 1.160 29.46 1.470 37.34 .810 21.34 1.080 27.43 .687 17.45 1.580 40.13 1.320 33.53 1.080 27.43
