415XBX24VDC

Description
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.146A (COIL), 24VDC (COIL), 3500mW (COIL), 15A (CONTACT), 28VDC (CONTACT), PANEL MOUNT
CategoryMechanical and electronic products    relay
File Size140KB,3 Pages
ManufacturerStruthers-Dunn
Download Datasheet Parametric View All

415XBX24VDC Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.146A (COIL), 24VDC (COIL), 3500mW (COIL), 15A (CONTACT), 28VDC (CONTACT), PANEL MOUNT

415XBX24VDC Parametric

Parameter NameAttribute value
MakerStruthers-Dunn
Reach Compliance Codeunknown
body width47.4 mm
Body length or diameter69.8 mm
Maximum coil current (DC)0.146 A
Coil operating voltage (DC)19.2 V
Coil power3500 mW
Coil release voltage (DC)2.4 V
Coil resistance164.38 Ω
Maximum coil voltage (DC)24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load15A@240VAC
Maximum contact current (AC)15 A
Maximum contact current (DC)15 A
Contact (DC) maximum rated R load15A@28VDC
Maximum contact voltage (AC)240 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life200000 Cycle(s)
Manufacturer's serial number415
Installation featuresPANEL MOUNT
operating hours25 ms
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
GuidelineUL
Relay actionMOMENTARY
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
release time10 ms
surface mountNO
Terminal surfaceNOT SPECIFIED
Termination typeSCREW
Base Number Matches1
Struthers-Dunn
407 East Smith Street - Suite B
Timmonsville, South Carolina
29161
Telephone: (843)346-4427 Fax: (843)662-8862
Email: info@struthers-dunn.com Website: www.struthers-dunn.com

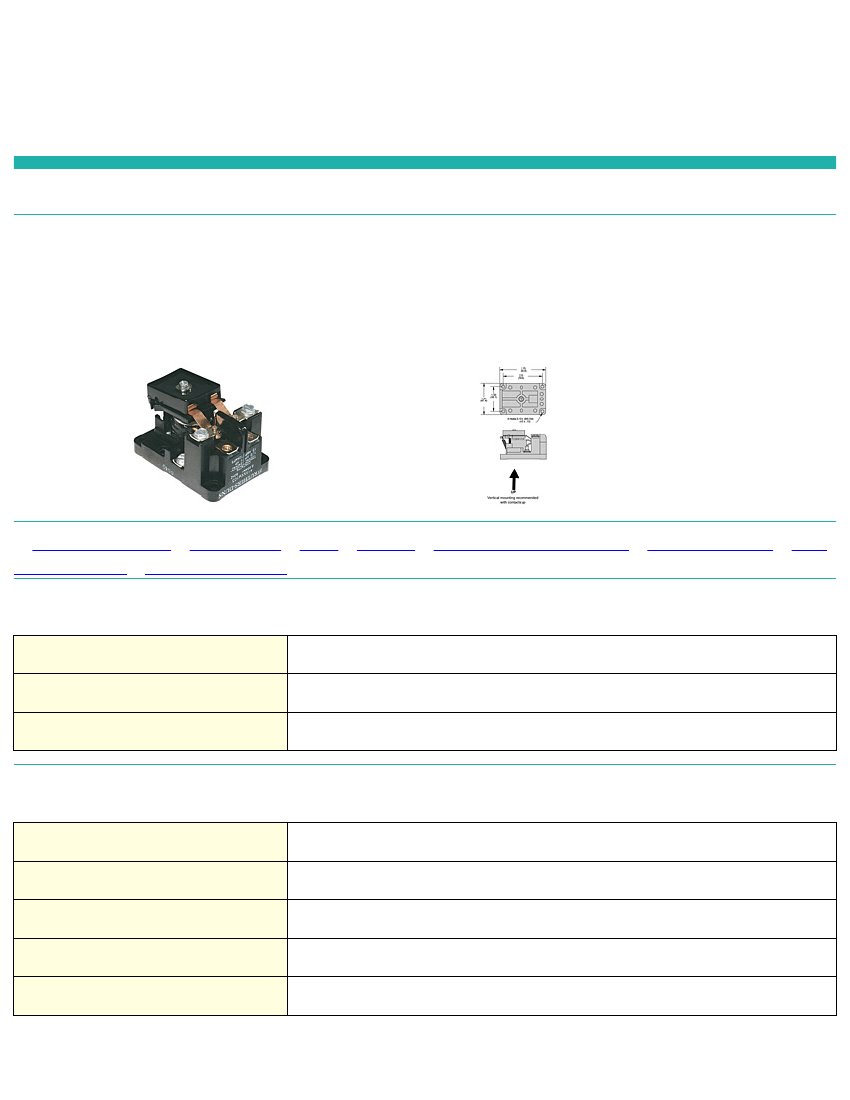

Item # 415XBX-24VDC, 415 Series - Screw Terminals
415 Series - Screw Terminals
The 415 series is a compact, 15 Amp base mounted industrial relay. It is a versatile relay that offers a variety of contact configurations and options. Excellent contact
life assures long mechanical life and contact reliability on low level loads. Screw terminals are standard. Options include: high voltage or high inrush contacts, quick
connect terminals, permanent magnet blowout and low power DC coils.
For Additional Configuration please contact the manufacturer.
·
SPECIFICATIONS
·
CONTACTS
·
COIL
·
TIMING
·
DIELECTRIC STRENGTH
·
TEMPERATURE
·
LIFE
EXPECTANCY
·
MISCELLANEOUS
SPECIFICATIONS
Series
415
Contact Arrangement
XBX (DPDT)
Coil Voltage
24 VDC
CONTACTS
Contact Configuration
DPDT
Contact Material
Silver Alloy
Contact Rating
15 A
Contact Rating 120 / 240VAC Resistive
15 A
Contact Rating 28VDC Resistive
15 A
9/16/2010 | Page 1 of 3
