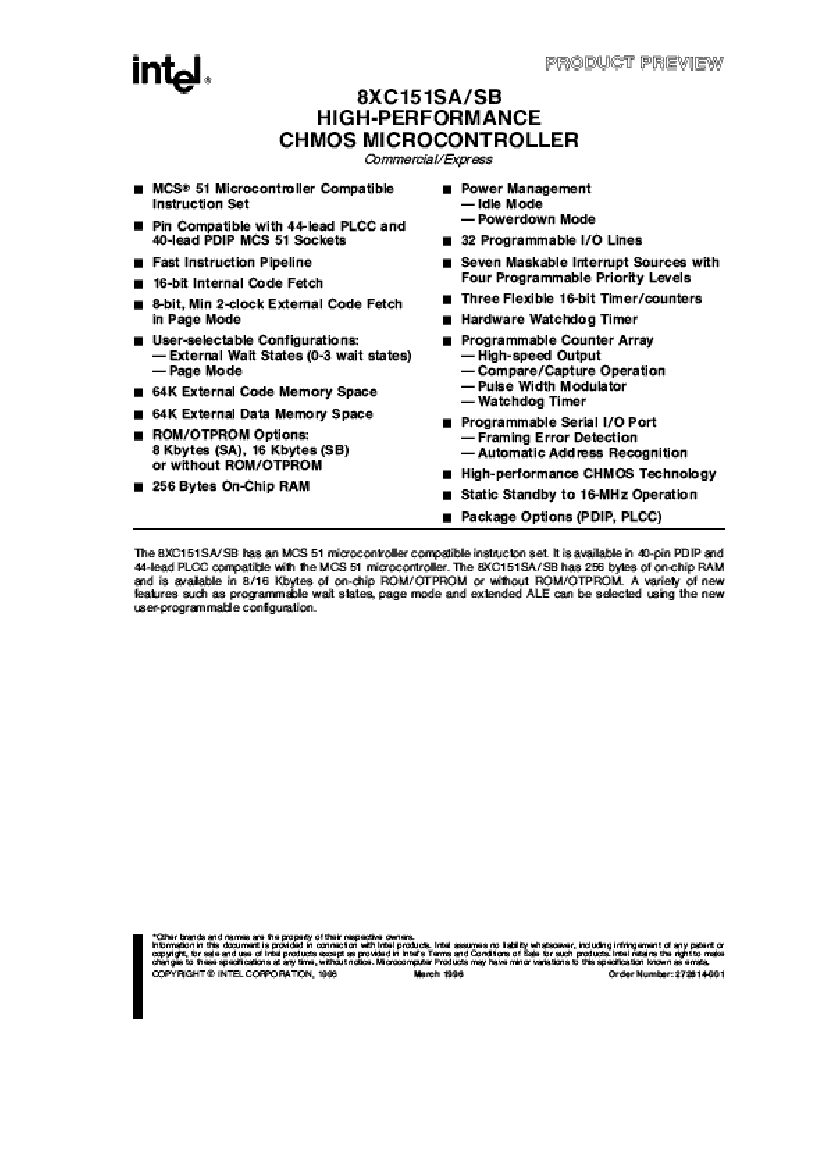

8XC151SA SB HIGH-PERFORMANCE CHMOS MICROCONTROLLER
TEMPERATURE RANGE
With the commercial (standard) temperature option
the device operates over the temperature range 0 C
to
a
70 C The express temperature option provides
b
40 C to
a
85 C device operation
PROCESS INFORMATION
This device is manufactured on a complimentary
high-performance
metal-oxide
semiconductor
(CHMOS) process Additional process and reliability
information is available in Intel’s
Components Quali-
ty and Reliability Handbook
(order number 210997)
All thermal impedance data is approximate for static
air conditions at 1 watt of power dissipation Values
change depending on operating conditions and ap-
plication requirements The Intel
Packaging Hand-
book
(order number 240800) describes Intel’s ther-
mal impedance test methodology
Table 2 Thermal Characteristics
Package Type
44-Lead PLCC
40-Pin PDIP
i
JA
46 C W
45 C W
i
JC
16 C W
16 C W
PROLIFERATION OPTIONS
Table 1 lists the proliferation options See Figure 2
for the 8XC151SA SB family nomenclature
Table 1 Proliferation Options
8XC151SA SB
(0 MHz– 16 MHz 5V
g
10%)
80C151SB
83C151SA
83C151SB
87C151SA
87C151SB
CPU-only
8K ROM
16K ROM
8K OTPROM
16K OTPROM
PACKAGE OPTIONS
Table 3 lists the 8XC151SA SB packages
Table 3 Package Information
Pkg
N
P
TN
TP
Definition
44-Lead PLCC
40-Pin Plastic DIP
44-Lead PLCC
40-Pin Plastic DIP
Temperature
0 C to
a
70 C
0 C to
a
70 C
b
40 C to
a
85 C
b
40 C to
a
85 C
3
8XC151SA SB HIGH-PERFORMANCE CHMOS MICROCONTROLLER
272814 –2
Figure 2 The 8XC151SA SB Family Nomenclature
Table 4 Description of Product Nomenclature
Parameter
Temperature and Burn-in
Options
Options
no mark
T
Packaging Options
N
P
Program Memory
Options
0
3
7
Process Information
Product Family
Device Memory Options
Device Speed
C
151
SA SB
16
Description
Commercial operating temperature range (0 C to 70 C) with Intel
standard burn-in
Express operating temperature range (
b
40 C to 85 C) with Intel
standard burn-in
44-lead Plastic Leaded Chip Carrier (PLCC)
40-pin Plastic Dual In-line Package (PDIP)
Without ROM OTPROM
ROM
User programmable OTPROM
CHMOS
8-bit controller architecture
256 bytes RAM 8 16 Kbyte ROM OTPROM or without ROM
OTPROM
External clock frequency
4
