P8749H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P8749H

P8749H: Description8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size708KB，13 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

P8749H Overview

8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40

P8749H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	compli
Has ADC	NO
Address bus width	12
bit size	8
boundary scan	NO
CPU series	8048
maximum clock frequency	11 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.26 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	24
Number of serial I/Os
Number of terminals	40
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
RAM (number of words)	128
rom(word)	2048
ROM programmability	OTPROM
Maximum seat height	5.08 mm
speed	3.67 MHz
Maximum slew rate	110 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

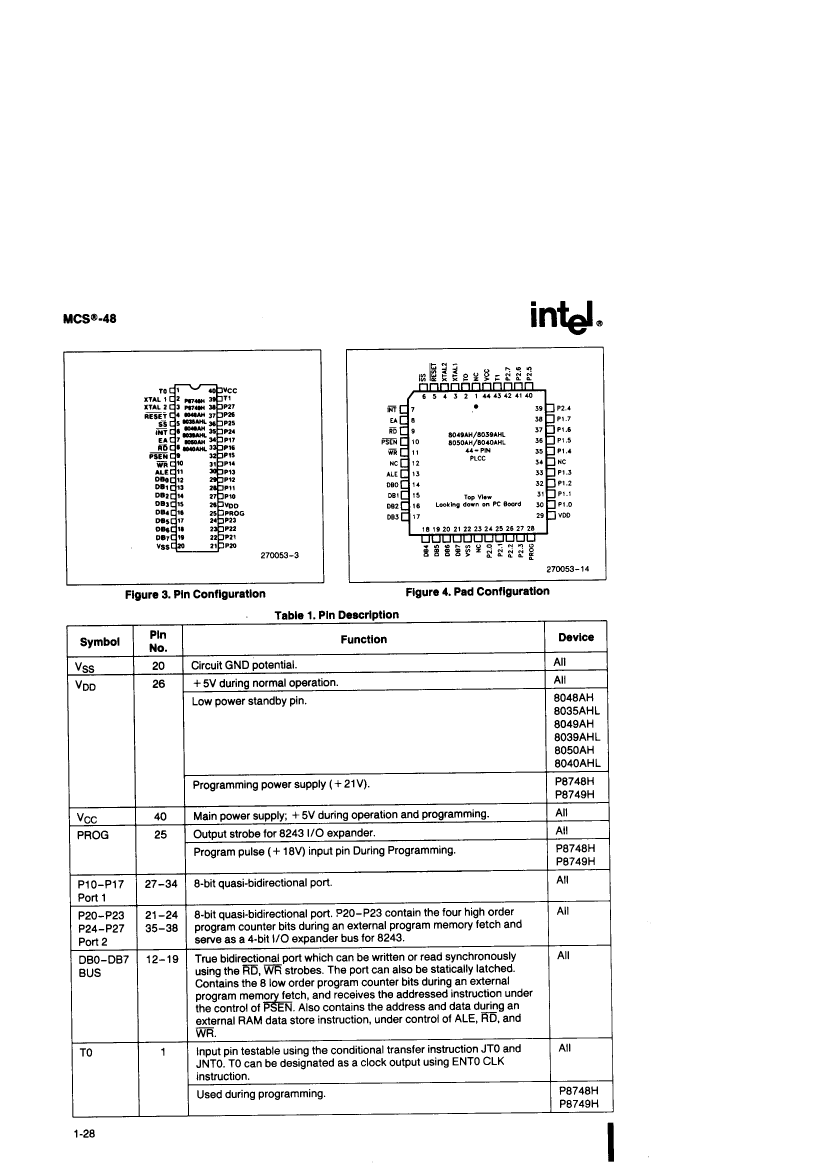

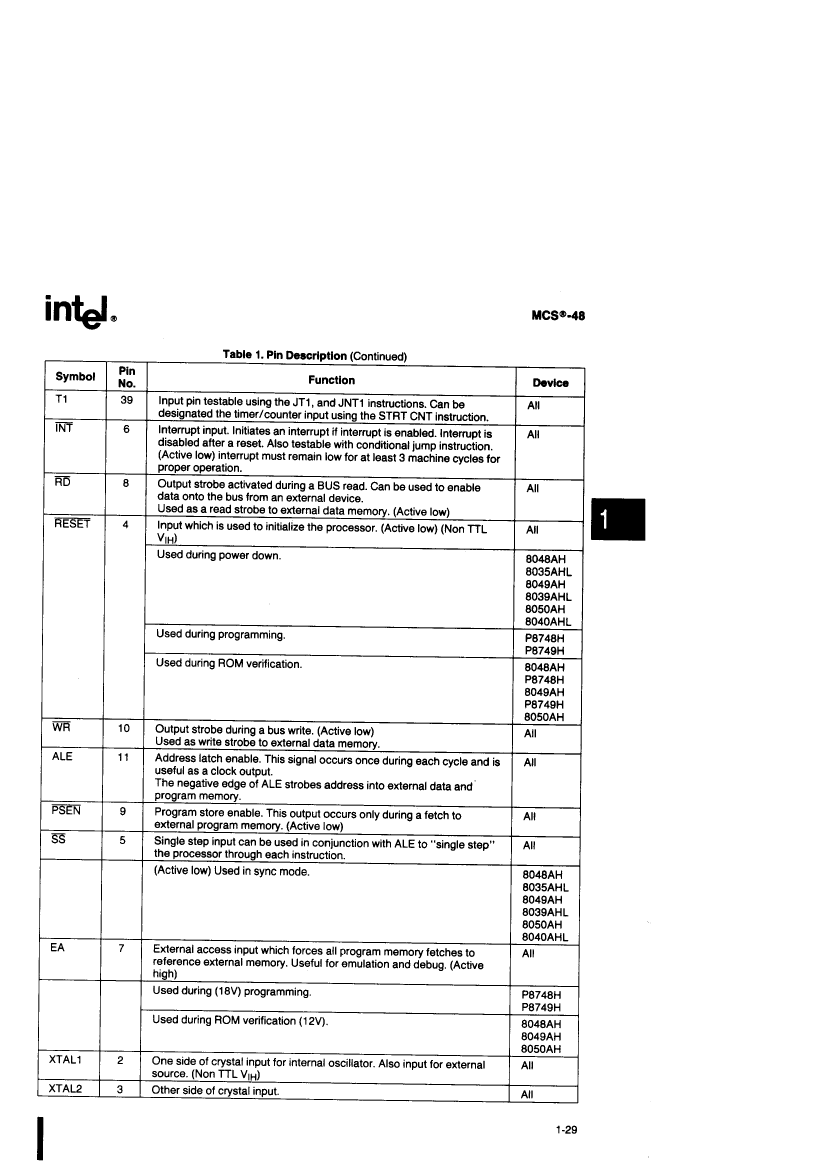

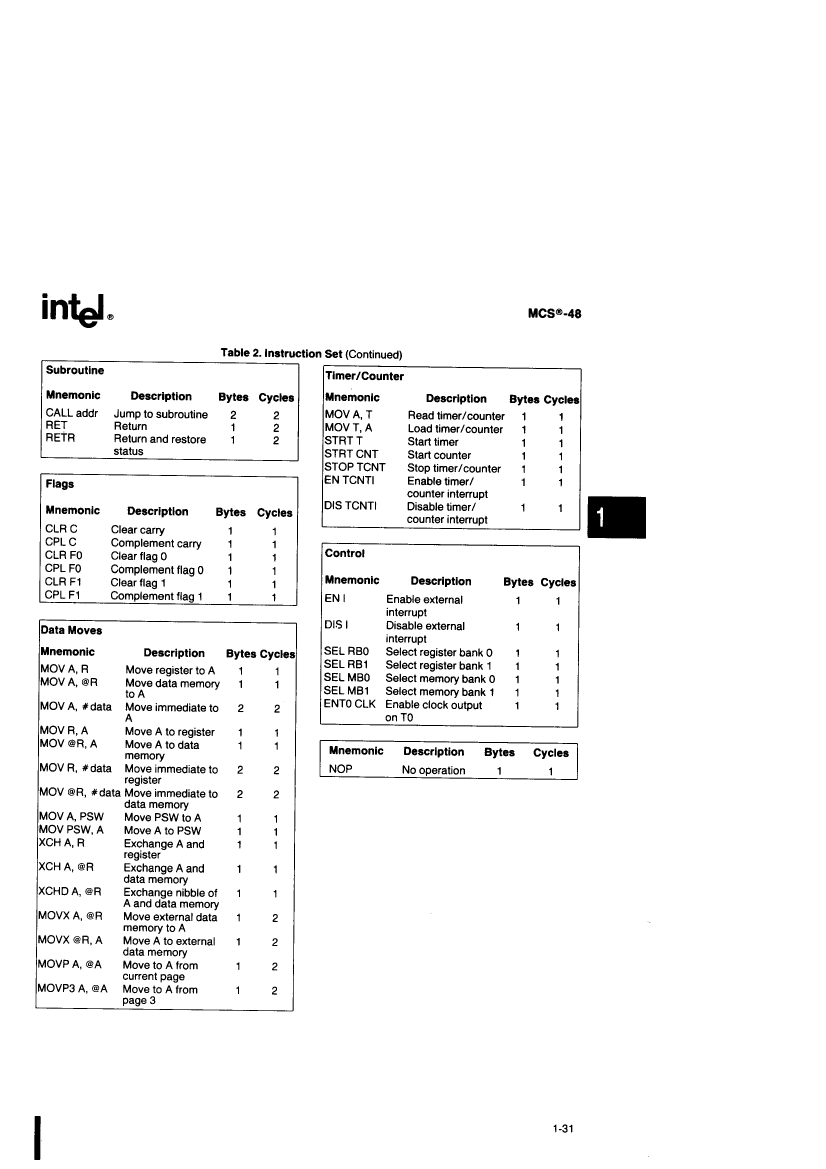

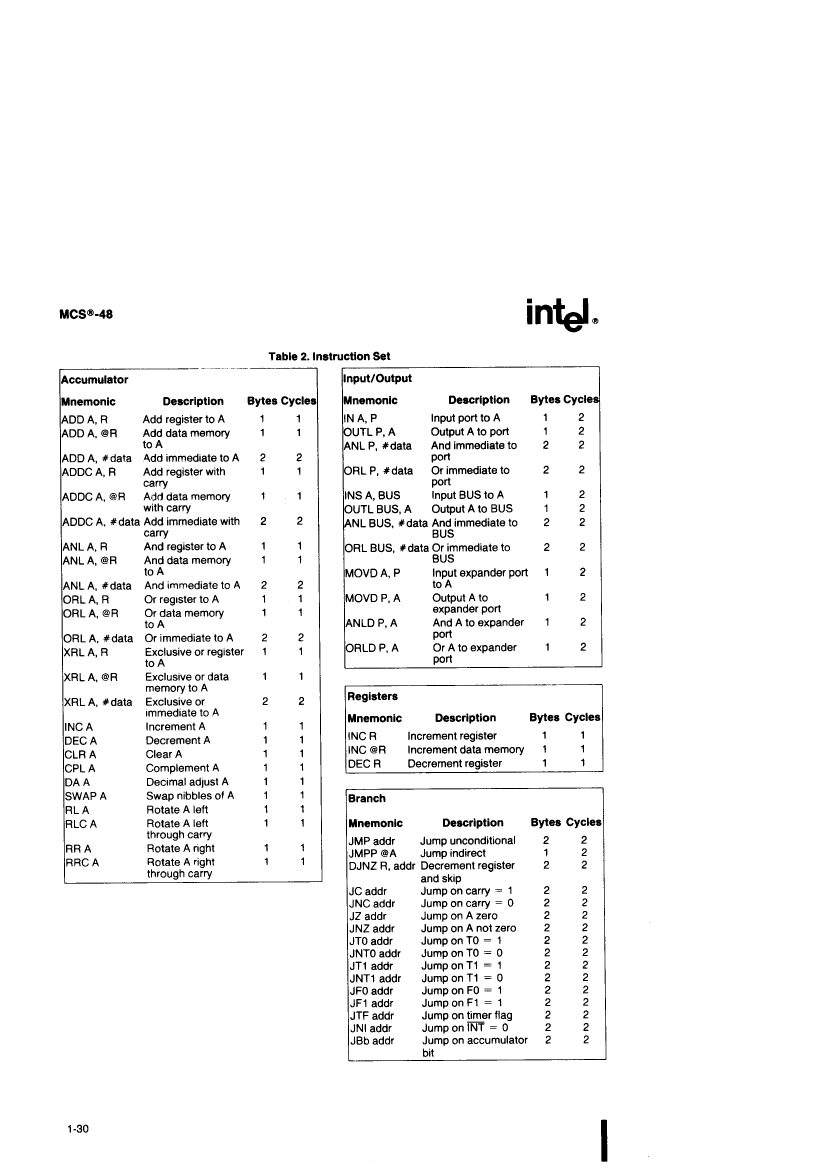

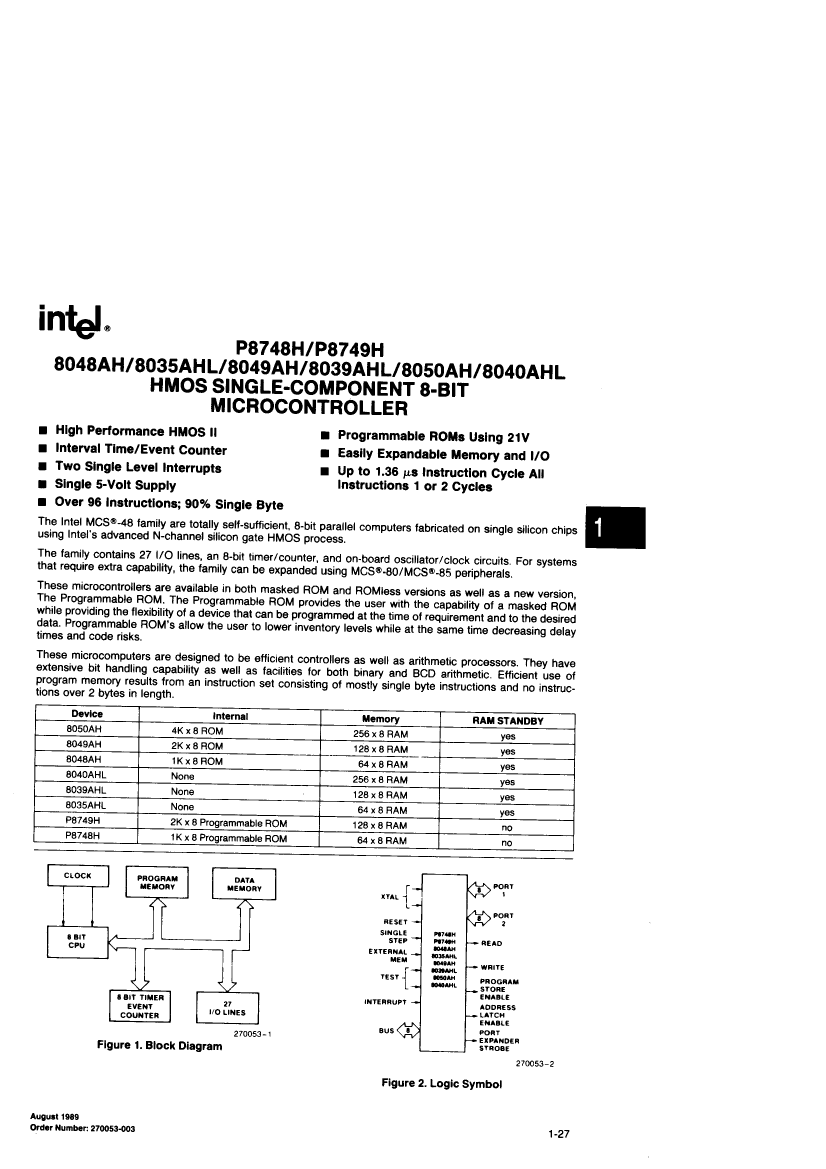

Preview

Download Datasheet

View All

P8749H Related Products

	P8749H	8035AHL	8039AHL	8040AHL	8049AH	8048AH	8050AH	P8748H
Description	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40	8-BIT, OTPROM, 3.67 MHz, MICROCONTROLLER, PDIP40
Address bus width	12	12	12	12	12	12	12	12
External data bus width	8	8	8	8	8	8	8	8
Number of terminals	40	40	40	40	40	40	40	40
Maximum operating temperature	70 °C	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel
Minimum operating temperature	-	0.0 Cel	0.0 Cel	0.0 Cel	0.0 Cel	0.0 Cel	0.0 Cel	0.0 Cel
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Number of functions	-	1	1	1	1	1	1	1
Maximum supply/operating voltage	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply/operating voltage	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Rated supply voltage	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Number of input and output buses	-	24	24	24	24	24	24	24
Line speed	-	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz	3.67 MHz
Processing package description	-	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, DIP-40
state	-	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED
Craftsmanship	-	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
packaging shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Terminal spacing	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
terminal coating	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Packaging Materials	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Number of digits	-	8	8	8	8	8	8	8
Maximum FCLK clock frequency	-	11 MHz	11 MHz	11 MHz	11 MHz	11 MHz	11 MHz	11 MHz
Microprocessor type	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
ROM programming	-	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM
