1206SFF800FM/32 datasheet, PDF

Datasheet> All Categories > Circuit protection> Circuit protection> 1206SFF800FM/32

1206SFF800FM/32: DescriptionElectric Fuse, 8A, 24VDC, Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size74KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

1206SFF800FM/32 Overview

Electric Fuse, 8A, 24VDC, Surface Mount, ROHS COMPLIANT

1206SFF800FM/32 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 24 VDC: 45A
body width	1.8 mm
body height	1.3 mm
Body length or diameter	3.4 mm
Circuit protection type	ELECTRIC FUSE
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	3.4mm x 1.8mm x 1.3mm
Rated current	8 A
Rated voltage (DC)	24 V
Guideline	UL
surface mount	YES
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

Tyco / Electronics

Raychem Circuit Protection

308 Constitution Drive

Menlo Park, CA 94025-1164

Phone: 800-227-4856

Fax: 800-227-4866

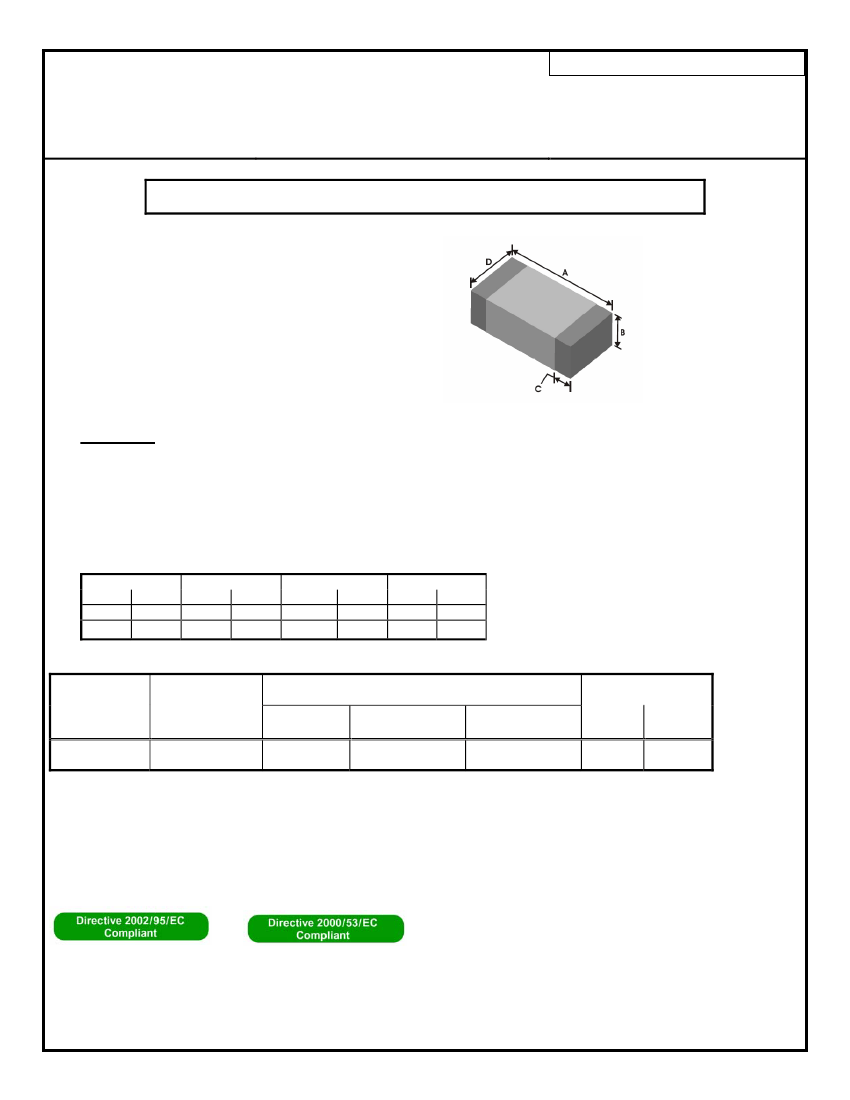

PRODUCT: 1206SFF800FM/24

Surface Mount Fuse

Marked

DOCUMENT: SCD26144

PCN: D90664

REV LETTER: C

REV DATE: NOVEMBER 18, 2005

PAGE NO.: 1 OF 1

Specification Status:

Released

Max Electrical Rating at 25°C

Max Voltage: 24V

Max Interrupt Current: 45A

Termination Material: Silver, Nickel, Tin

Fuse Element: Silver

Body Material: Glass Ceramic

Marking:

Part Identification

Indicates 8A device

TABLE I. DIMENSIONS:

mm:

in:

MIN

3.00

MAX

3.40

MIN

0.90

MAX

1.30

MIN

0.26

(0.010)

MAX

0.76

MIN

1.40

MAX

1.80

(0.118) (0.134) (0.035) (0.051)

(0.030) (0.055) (0.071)

TABLE II. PERFORMANCE RATINGS @ 25°C (unless otherwise noted):

CLEAR TIME

RATED

CURRENT (A)

8.0

NOMINAL COLD

DCR (Ω)*

0.008

100% of rated

current

4 hours min

250% of rated

current

5 seconds max

400% of rated

current

0.05 seconds max

OPERATING

TEMPERATURE (°C)

MIN

-55

MAX

125

* Measured at 10% of rated current and 25

Agency Recognition:

Precedence:

Effectivity:

UL, File E197536

This specification takes precedence over documents referenced herein.

Reference documents shall be the issue in effect on the date of invitation for bid.

Materials Information

ROHS Compliant

ELV Compliant

1206SFF800FM/32 Related Products

	1206SFF800FM/32
Description	Electric Fuse, 8A, 24VDC, Surface Mount, ROHS COMPLIANT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 24 VDC: 45A
body width	1.8 mm
body height	1.3 mm
Body length or diameter	3.4 mm
Circuit protection type	ELECTRIC FUSE
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	3.4mm x 1.8mm x 1.3mm
Rated current	8 A
Rated voltage (DC)	24 V
Guideline	UL
surface mount	YES
Terminal shape	END CAP
Base Number Matches	1
