AMM36DRMT-S273: DescriptionCard Edge Connector, 72 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, #4-40; CategoryThe connector The connector; File Size92KB，2 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

AMM36DRMT-S273 Overview

Card Edge Connector, 72 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, #4-40

AMM36DRMT-S273 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	309416584
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6
Board mount options	HOLE .12- .126
body width	0.47 inch
subject depth	0.61 inch
body length	6.464 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Filter function	NO
insulator material	POLYPHENYLENE SULFIDE
JESD-609 code	e4
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.35 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Terminal length	0.56 inch
Terminal pitch	3.9624 mm
Termination type	WIRE WRAP
Total number of contacts	72

Preview

Download Datasheet

View All

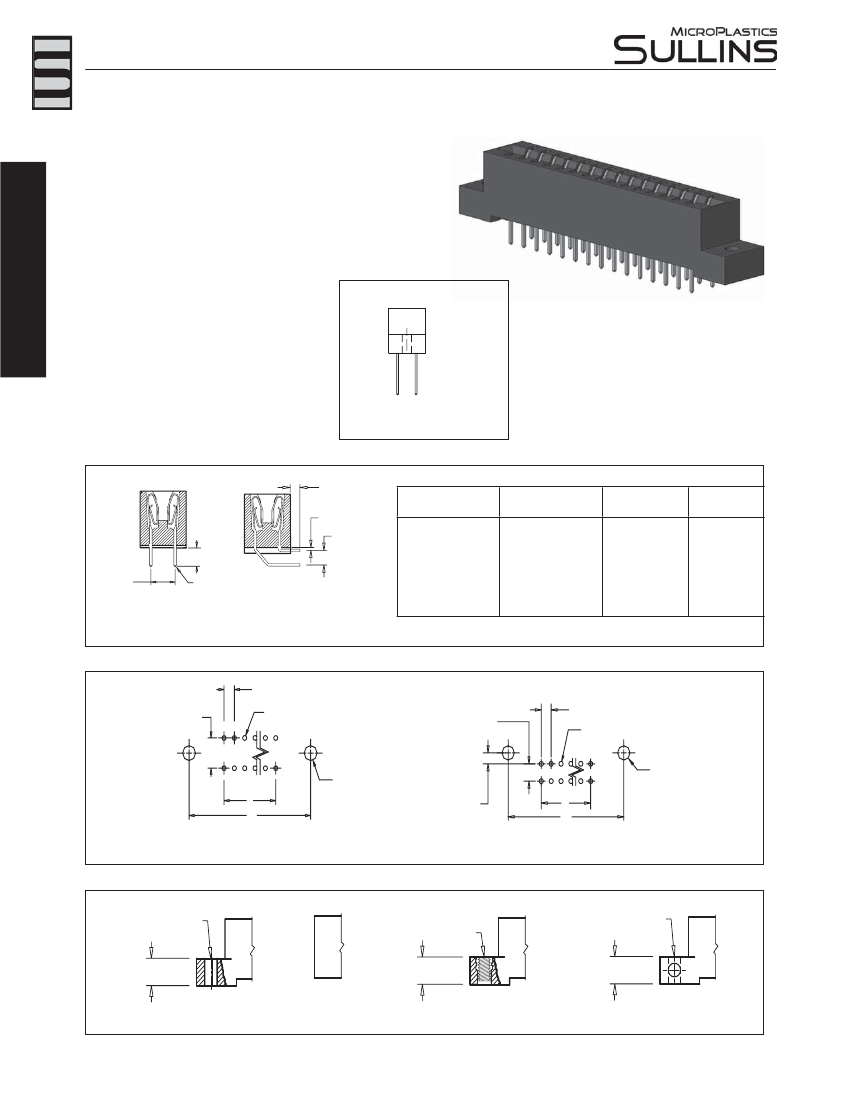

Sullins Edgecards

.156” [3.96mm] Contact Centers, .610” Insulator Height

Dip Solder/Wire Wrap/Right Angle for .093”[2.36] or .125”[3.18] Mating PCB

SPECIFICATIONS

• Accommodates .093” ± .008” [2.36 ± .20] or .125” ± .008”

[318 ± .20] mating PCB (Consult factory for .031” ± .008”

[.79 ± .20] boards)

• PBT, PPS or PA9T insulator

• Molded-in key available

• 3 amp current rating per contact

• 30 milli ohm maximum at rated current

Sullins Edgecards

READOUT

DUAL (D)

TERMINATION TYPE

L

.030±.015

[.75±.38]

.150±.010

[3.81±.25]

TERMINATION

TYPE

RS

RM

TA

TB

Dip Solder

Wire Wrap

Right Angle

POST CROSS

SECTION (K)

.025[.64] SQUARE

POST LENGTH

L ±.025[.64]

.190 [4.83]

.560 [14.20]

.100 [2.54]

.180 [4.57]

.250 [6.35]

FITS MIN.

HOLE SIZE

.040 [1.02]

.043 [1.09]

L

.250

[6.35]

LOOP

BELLOWS

(RS, RM)

K

RIGHT ANGLE

DIP SOLDER

(TA, TB, TM)

TM

PCB LAYOUT

.250 [6.35]

.156 [3.96] CC

Ø .040 [1.02]

.150 [3.81]

COMPONENT SIDE

.156 [3.96] CC

Ø .043 [1.09]

Ø .125 [3.18],

2 PLS.

.094 [2.40]

A

D

RIGHT ANGLE TERMINATIONS

(TA, TB, TM)

A

D

STRAIGHT PIN TERMINATIONS

(RS, RM)

Ø .125 [3.18],

2 PLS.

MOUNTING STYLE

Ø.125 [3.18]

#4-40

T = .250 [6.35]

NO MOUNTING

EARS (N)

FLUSH MOUNTING WITH

THREADED INSERT (T)

Z = .250 [6.35]

FLUSH MOUNTING WITH

SIDE HOLES (Z)

D = .250 [6.35]

FLUSH MOUNTING

(D)

64

www.sullinscorp.com

|

760-744-0125

|

toll-free 888-774-3100

|

fax 760-744-6081

|

info@sullinscorp.com
