SPECIFICATION FOR APPROVAL
REF. :
PROD.
NAME
ABC'S DWG NO.
SS1210□□□□F□-□□□
PAGE
1
Shielded SMD Power Inductor
REV.
20170316-D

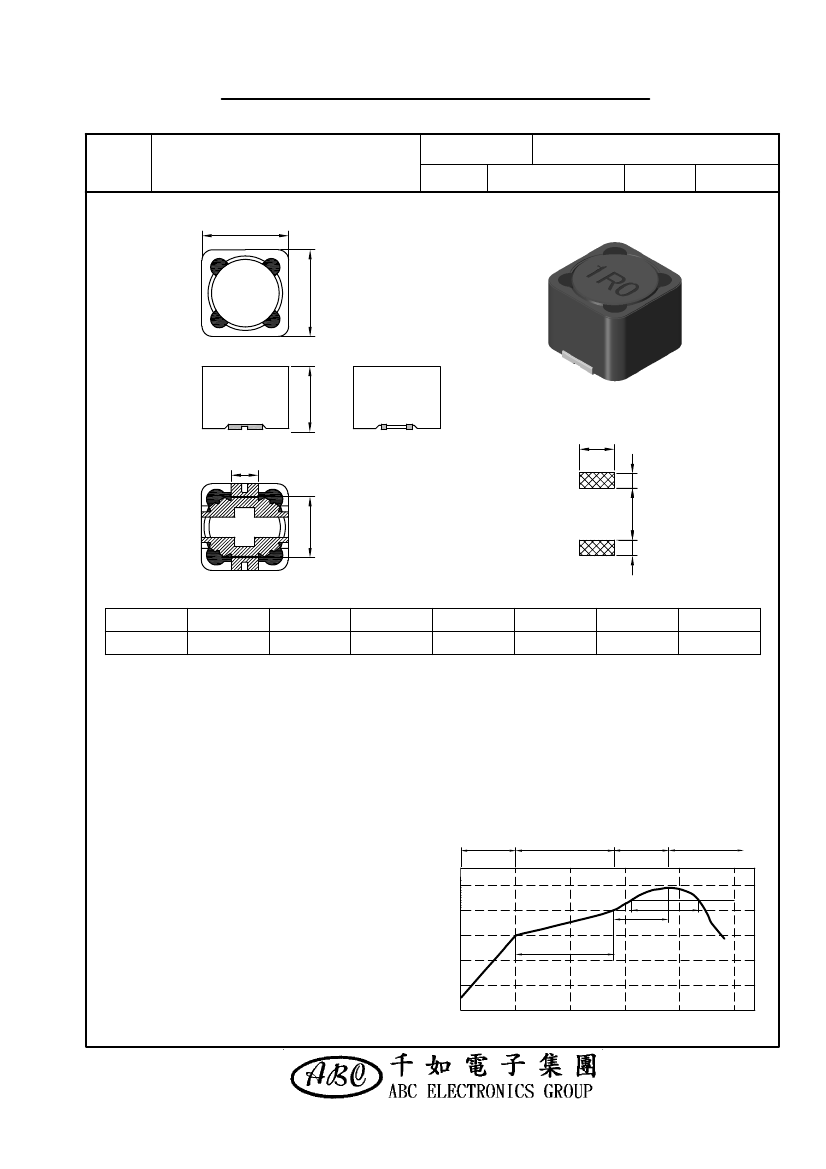

Ⅰ﹒Configuration
and dimensions：
A
1R0
C
B
G
H
D
( PCB Pattern )
Unit：m/m
A
12.00
±0.5
B
12.00
±0.5
C
10.00 max.
D
7.90 ref.
E
4.90 ref.
F
7.30 ref.
G
5.30 ref.
H
2.80 ref.
Peak Temp：245℃ max.
Max. Peak Temp - 5℃：30sec max.
Max time above 217℃
：60sec~150sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
Forced Cooling Area
+3.0
℃
/ sec max. -(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
245℃
217℃
E
Ⅱ﹒Description：
a﹒Ferrite drum core construction.
b﹒Magnetically shielded.
c﹒Enamelled copper wire：F class
d﹒Product weight： 4.50g（ref.）
e﹒Moisture sensitivity Level 1
f﹒Products comply with RoHS' requirements
g﹒Halogen free available
250
Temperature (
℃
)
H
F
Ⅲ﹒General
specification：
a﹒Storage temp.：-40℃ ----+125℃
b﹒Operating temp.：-40℃----+125℃
(Temp. rise included)
c﹒Resistance to solder heat：245℃.10 secs.
AR-001C
200
150
60sec~120sec
60sec~150sec
60sec max.
100
50
0
50
100
150
Time ( seconds )
200
250
SPECIFICATION FOR APPROVAL
REF. :
PROD.
NAME
ABC'S DWG NO.
SS1210□□□□F□-□□□
PAGE
2
Shielded SMD Power Inductor
REV.
20170316-D
Ⅳ﹒Electrical
characteristics：
DWG No.
SS12101R0YFB-□□□
SS12101R8YFB-□□□
SS12102R2YFB-□□□
SS12103R3YFB-□□□
SS12104R7YFB-□□□
SS12105R6YFB-□□□
SS12106R8YFB-□□□
SS12108R2YFB-□□□
SS1210100MFB-□□□
SS1210120MFB-□□□
SS1210150MFB-□□□
SS1210180MFB-□□□
SS1210220MFB-□□□
SS1210270MFB-□□□
SS1210330MFB-□□□
SS1210390MFB-□□□
SS1210470MFB-□□□
SS1210560MFB-□□□
SS1210680MFB-□□□
Inductance
(
μH
)
1.0
±
30%
1.8
±
30%
2.2
±
30%
3.3
±
30%
4.7
±
30%
5.6
±
30%
6.8
±
30%
8.2
±
30%
10.0
±
20%
12.0
±
20%
15.0
±
20%
18.0
±
20%
22.0
±
20%
27.0
±
20%
33.0
±
20%
39.0
±
20%
47.0
±
20%
56.0
±
20%
68.0
±
20%
Q
ref.
10
10
10
15
8
12
12
11
16
14
16
13
16
16
16
16
16
8
12
Test Freq.
(MHz)
7.960
7.960
7.960
7.960
7.960
7.960
7.960
7.960
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
SRF
( MHz )
typ.
85.00
56.00
54.00
44.00
35.00
28.00
20.00
16.00
12.00
18.00
10.50
8.00
8.00
6.50
6.50
4.50
4.50
4.00
3.80
RDC
( mΩ )
max.
6.0
7.5
9.0
10.0
12.0
13.5
15.0
17.0
18.0
22.0
32.0
35.0
38.0
40.0
52.0
66.0
72.0
90.0
102.0
Irms
(A)
typ.
11.00
10.20
9.50
9.00
8.50
8.00
7.85
7.25
6.50
6.30
5.80
5.50
5.20
5.00
4.40
4.20
3.80
3.40
3.00
Isat
(A)
max.
16.50
13.20
12.20
10.50
9.60
8.50
8.30
7.55
6.50
6.10
5.30
5.10
4.50
4.20
3.70
3.50
3.10
2.90
2.70
AR-001C
SPECIFICATION FOR APPROVAL
REF. :
PROD.
NAME
ABC'S DWG NO.
SS1210□□□□F□-□□□
PAGE
3
Shielded SMD Power Inductor
REV.
20170316-D
DWG No.
SS1210820MFB-□□□
SS1210101MFB-□□□
SS1210121MFB-□□□
SS1210151MFB-□□□
SS1210181MFB-□□□
SS1210221MFB-□□□
SS1210271MFB-□□□
SS1210331MFB-□□□
SS1210391MFB-□□□
SS1210471MFB-□□□
SS1210561MFB-□□□
SS1210681MFB-□□□
SS1210821MFB-□□□
Inductance
(
μH
)
82.0
±
20%
100.0
±
20%
120.0
±
20%
150.0
±
20%
180.0
±
20%
220.0
±
20%
270.0
±
20%
330.0
±
20%
390.0
±
20%
470.0
±
20%
560.0
±
20%
680.0
±
20%
820.0
±
20%
Q
ref.
15
16
13
12
14
15
16
14
16
12
12
11
6
22
Test Freq.
(MHz)
2.520
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
SRF
( MHz )
typ.
3.50
3.00
2.60
2.20
1.80
1.80
1.80
1.80
1.30
0.85
0.85
0.85
0.85
0.85
RDC
( mΩ )
max.
112.0
135.0
170.0
190.0
250.0
315.0
410.0
450.0
600.0
820.0
900.0
1200.0
1320.0
1650.0
Irms
(A)
typ.
2.80
2.50
2.30
2.20
1.90
1.70
1.50
1.40
1.30
1.20
1.10
1.00
0.85
0.75
Isat
(A)
max.
2.50
2.20
1.90
1.80
1.60
1.50
1.30
1.20
1.10
1.00
0.95
0.85
0.75
0.70
SS1210102MFB-□□□ 1000.0
±
20%
1).
2). "-
□□□
"：Reference code
：Packaging
information：
Code
3). Electrical specifications at 25℃
4). Inductance Test Freq.：1kHz / 0.25V
5). Irms base on Temp. rise 40
℃
typ.
6). Isat base on
△L/L0A=20%
max.
AR-001C
SPECIFICATION FOR APPROVAL
REF. :
PROD.
NAME
ABC'S DWG NO.
SS1210□□□□F□-□□□
PAGE
4
Shielded SMD Power Inductor
REV.
20170316-D
Ⅴ﹒Curve：
SS12104R7YF□
120%
50.0
100%
40.0
80%
30.0
60%
△
T(
℃
)
0.0
2.0
4.0
IDC(A)
6.0
8.0
10.0
L/L0A
20.0
40%
10.0
20%
0%
0.0
0.0
2.0
4.0
IDC(A)
6.0
8.0
10.0
SS1210220MF□
120%
60.0
100%
50.0
80%
△
T(
℃
)
0.0
1.0
2.0
3.0
IDC(A)
4.0
5.0
6.0
L/L0A
40.0
60%
30.0
40%
20.0
20%
10.0
0%
0.0
0.0
1.0
2.0
3.0
IDC(A)
4.0
5.0
6.0
SS1210101MF□
120%
70.0
60.0
50.0
80%
△
T(
℃
)
L/L0A
40.0
30.0
20.0
20%
10.0
0.0
0.0
0.5
1.0
1.5
2.0
IDC(A)
2.5
3.0
3.5
0.0
0.5
1.0
1.5
2.0
IDC(A)
2.5
3.0
3.5
100%
60%
40%
0%
SS1210102MF□
120%
80.0
70.0
60.0
80%
△
T(
℃
)
L/L0A
50.0
40.0
30.0
20.0
20%
10.0
0.0
0.0
0.2
0.4
IDC(A)
0.6
0.8
1.0
0.0
0.2
0.4
IDC(A)
0.6
0.8
1.0
100%
60%
40%
0%
AR-001C
SPECIFICATION FOR APPROVAL
REF. :
PROD.
NAME
ABC'S DWG NO.
SS1210□□□□F□-□□□
PAGE
5
Shielded SMD Power Inductor
REV.
20170316-D

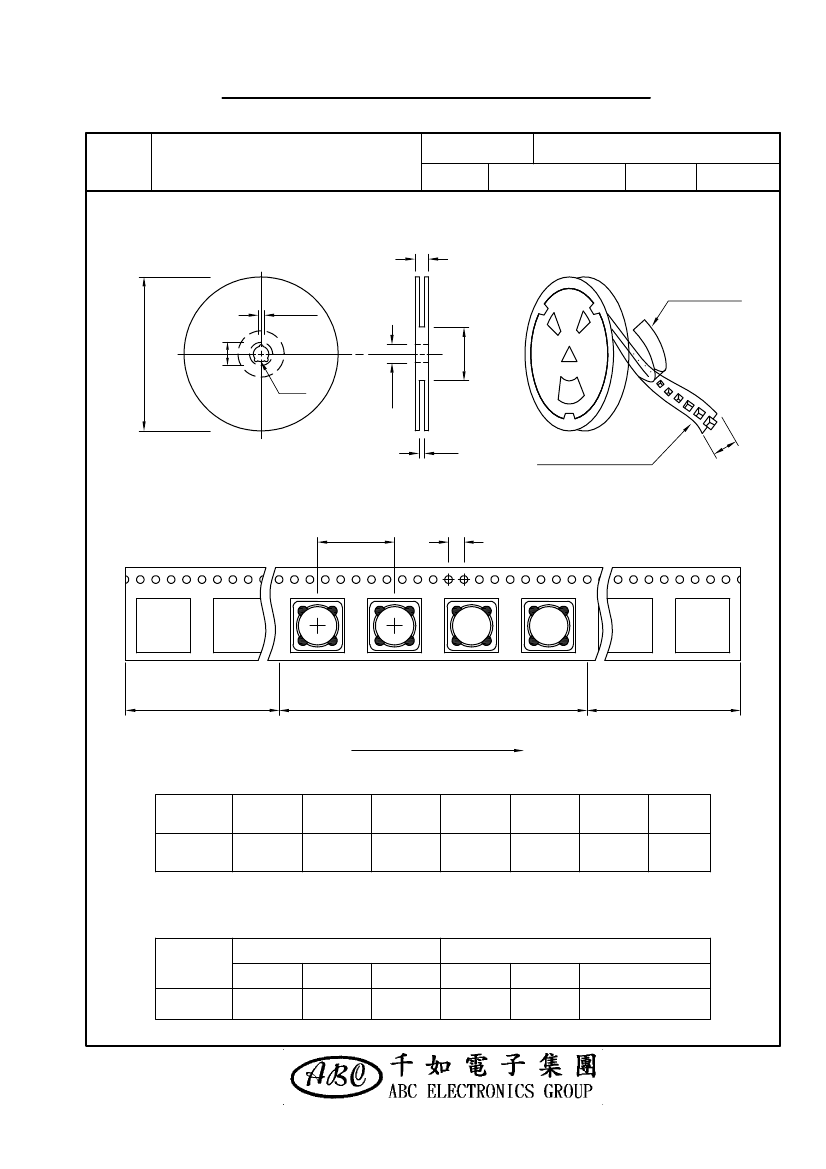

Ⅵ﹒Packaging
information：
( 1 ) Configuration
T
Cover Tape
2.0±0.5
A
N
∮C
∮C
B
G
D
Embossed carrier
※Carrier
tape width : D
P:20 m/m
end
4 m/m
start
1R0
Leader
no component
200 m/m Min.
1R0
1R0
1R0
Trailer
no component
400 m/m Min.
Components
User direction of feed
( 2 ) Dimensions
Style
13 - 24
A
330
B
21±0.8
C
13±0.5
D
24
G
26
+0
N
60
-0
Unit:m/m
T
30.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Code
B
Q'TY (pcs)
G.W. (g)
Style
Q'TY (PCS)
Outer : Carton
G.W. (Kg)
Size (cm)
250
1710
13 - 24
1,000
8.1
38 x 37 x 22
AR-001C
