8440K2: DescriptionPushbutton Switch, SPST, Momentary, 5A, 12VDC, Solder Terminal, Panel Mount-threaded,; CategoryMechanical and electronic products switch; File Size110KB，1 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

8440K2 Overview

Pushbutton Switch, SPST, Momentary, 5A, 12VDC, Solder Terminal, Panel Mount-threaded,

8440K2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body height	17.27 mm
Body length or diameter	15.75 mm
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@12VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	12 V
Installation features	PANEL MOUNT-THREADED
Maximum operating force	11.12 N
Maximum operating temperature	66 °C
Minimum operating temperature	-16 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

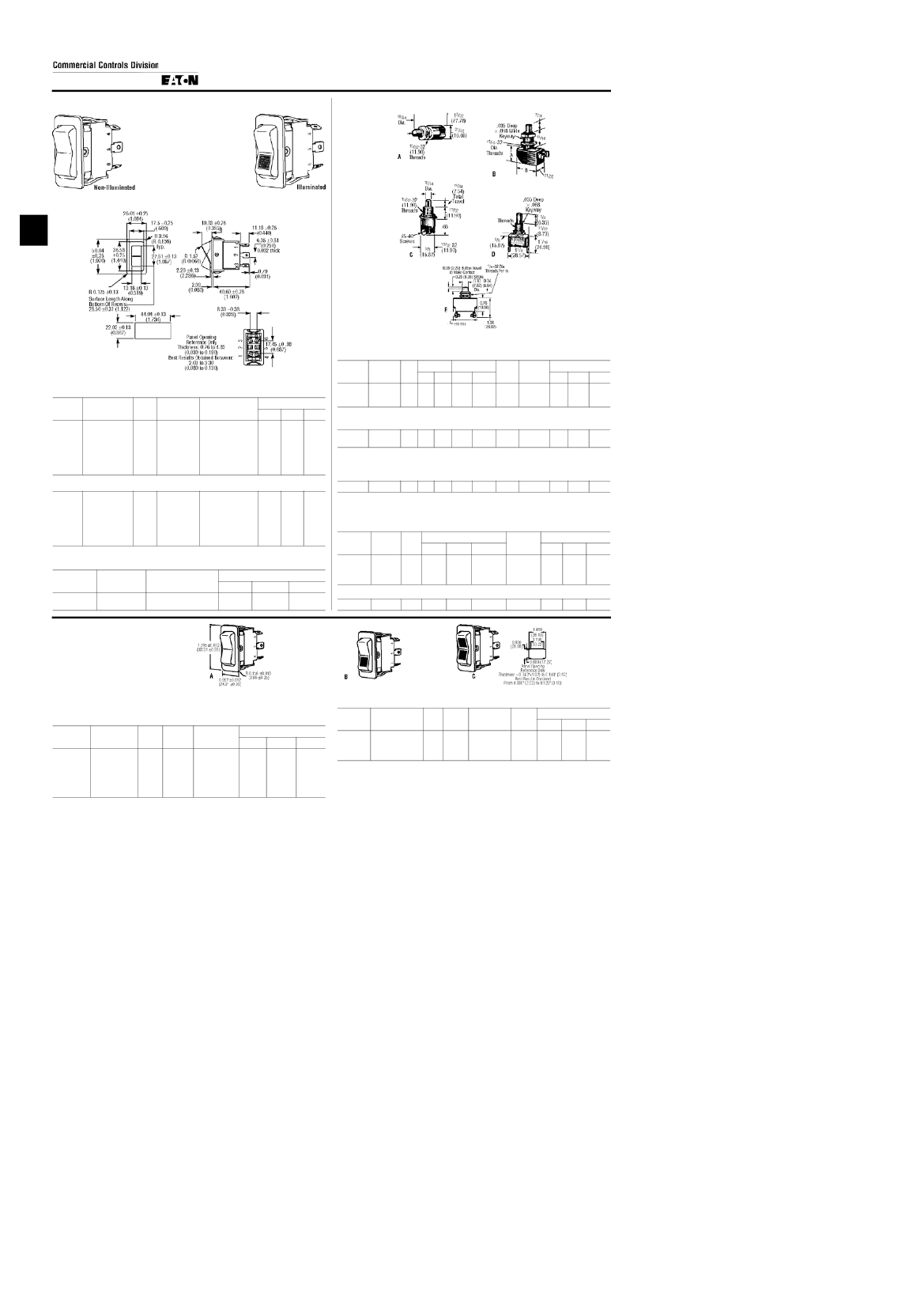

Preview
