22-55-3261 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 22-55-3261

Preview

22-55-3261: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

22-55-3261 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-55-3261	-	-	View	Buy Now

22-55-3261 Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking Mech, Black Insulator, Plug

22-55-3261 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SL, COMPATIBLE CONTACTS: 16-02-0088; 16-02-0104; 16-02-1111, POLARIZED
body width	0.319 inch
subject depth	0.6 inch
body length	1.499 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	70450
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

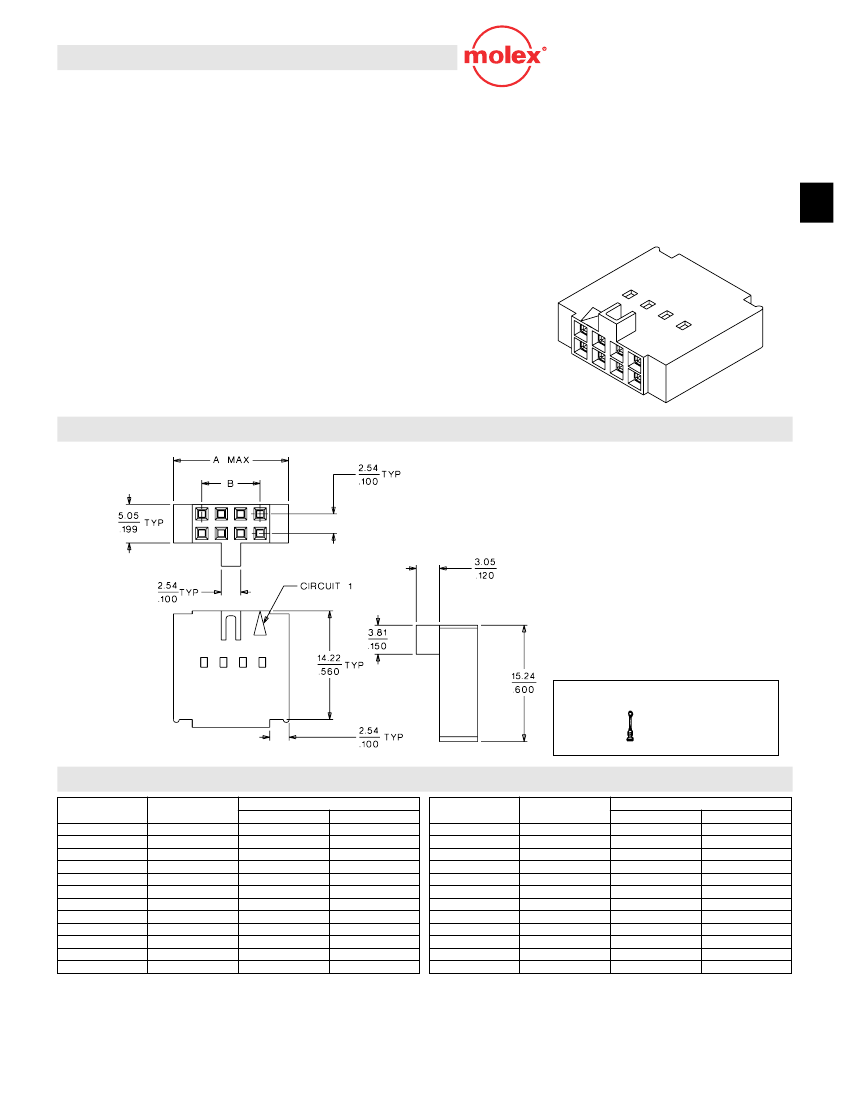

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 4 to 50 circuits

s

Designed to mate with industry standard headers utilizing

short latch/eject levers

Reference Information

Product Speciﬁcation: PS-70058

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With: QF-50 Latching Headers

Use With: 70058 and 71851 crimp terminals

Designed In: Inches

Physical

Housing: Black glass-filled polyester, UL 94V-O

Operating Temperature: -40 to +105˚C

2.54mm (.100")

SL

™

Crimp Housing

70450

Dual Row

Version E

C

2.54mm (.100") Pitch

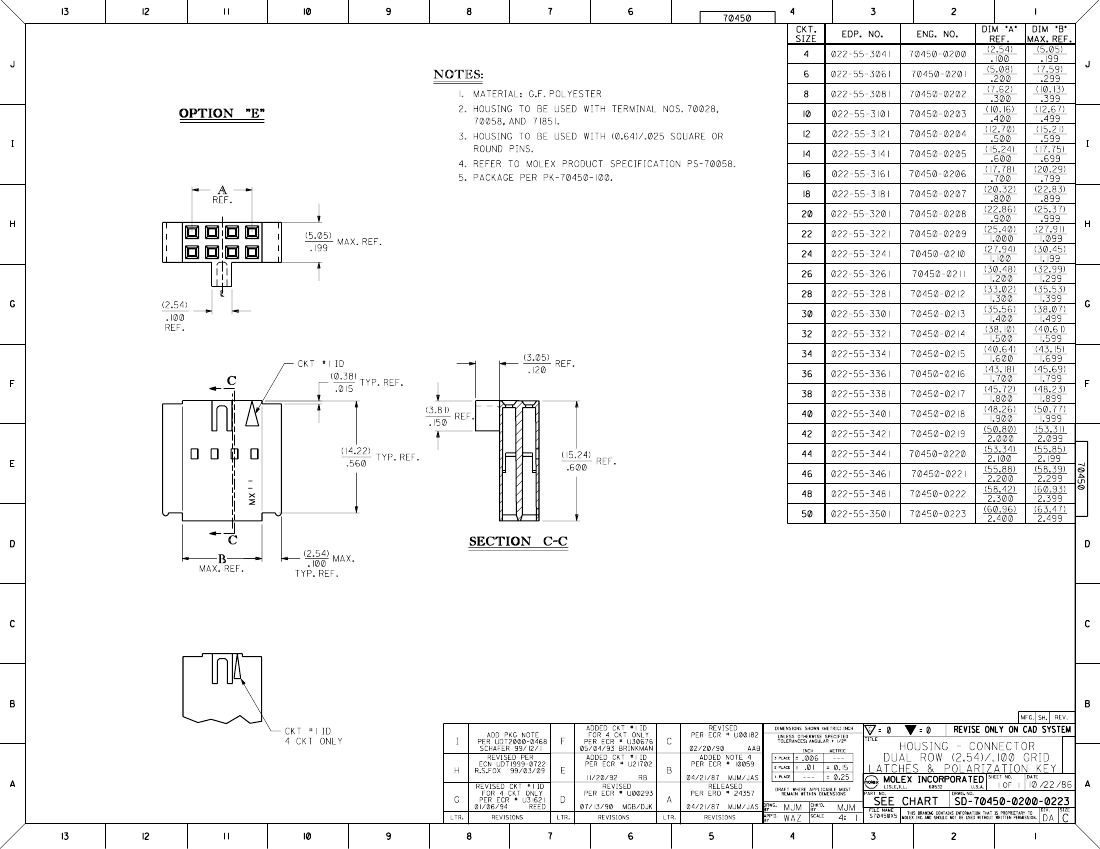

CATALOG DRAWING (FOR REFERENCE ONLY)

Not For Use With C-Grid III

™

Components

Delivered on a carrier with 20 pieces per strip.

Actual

Size

Universal Polarizing Pin

40713-1

Order No. 15-04-0292

ORDERING INFORMATION AND DIMENSIONS

Circuits

4

6

8

10

12

14

16

18

20

22

24

26

Order No.

• 22-55-3041

• 22-55-3061

• 22-55-3081

• 22-55-3101

• 22-55-3121

• 22-55-3141

• 22-55-3161

• 22-55-3181

• 22-55-3201

• 22-55-3221

• 22-55-3241

• 22-55-3261

10.13

12.67

15.21

17.75

20.29

22.83

25.37

27.91

30.45

32.99

35.53

38.07

Dimension

A

(.399)

(.499)

(.599)

(.699)

(.799)

(.899)

(.999)

(1.099)

(1.199)

(1.299)

(1.399)

(1.499)

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

B

(.100)

(.200)

(.300)

(.400)

(.500)

(.600)

(.700)

(.800)

(.900)

(1.000)

(1.100)

(1.200)

Circuits

28

30

32

34

36

38

40

42

44

46

48

50

Order No.

• 22-55-3281

• 22-55-3301

• 22-55-3321

• 22-55-3341

• 22-55-3361

• 22-55-3381

• 22-55-3401

• 22-55-3421

• 22-55-3441

• 22-55-3461

• 22-55-3481

• 22-55-3501

40.61

43.15

45.69

48.23

50.77

53.31

55.85

58.39

60.93

63.47

66.01

68.55

Dimension

A

(1.599)

(1.699)

(1.799)

(1.899)

(1.999)

(2.099)

(2.199)

(2.299)

(2.399)

(2.499)

(2.599)

(2.699)

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

B

(1.300)

(1.400)

(1.500)

(1.600)

(1.700)

(1.800)

(1.900)

(2.000)

(2.100)

(2.200)

(2.300)

(2.400)

• US Standard Product, available through Molex franchised distributors

MX01

C-19

Recommended Resources

Automatic sprinkler irrigation control circuit

Delay circuits controlled by single-junction transistors and thyristors

Circuit diagram of a regulated power supply with a current output of 10A using thyristors

GEL-Cell Charger Circuit

Fax machine circuit diagram

24 LED driver circuit diagram
