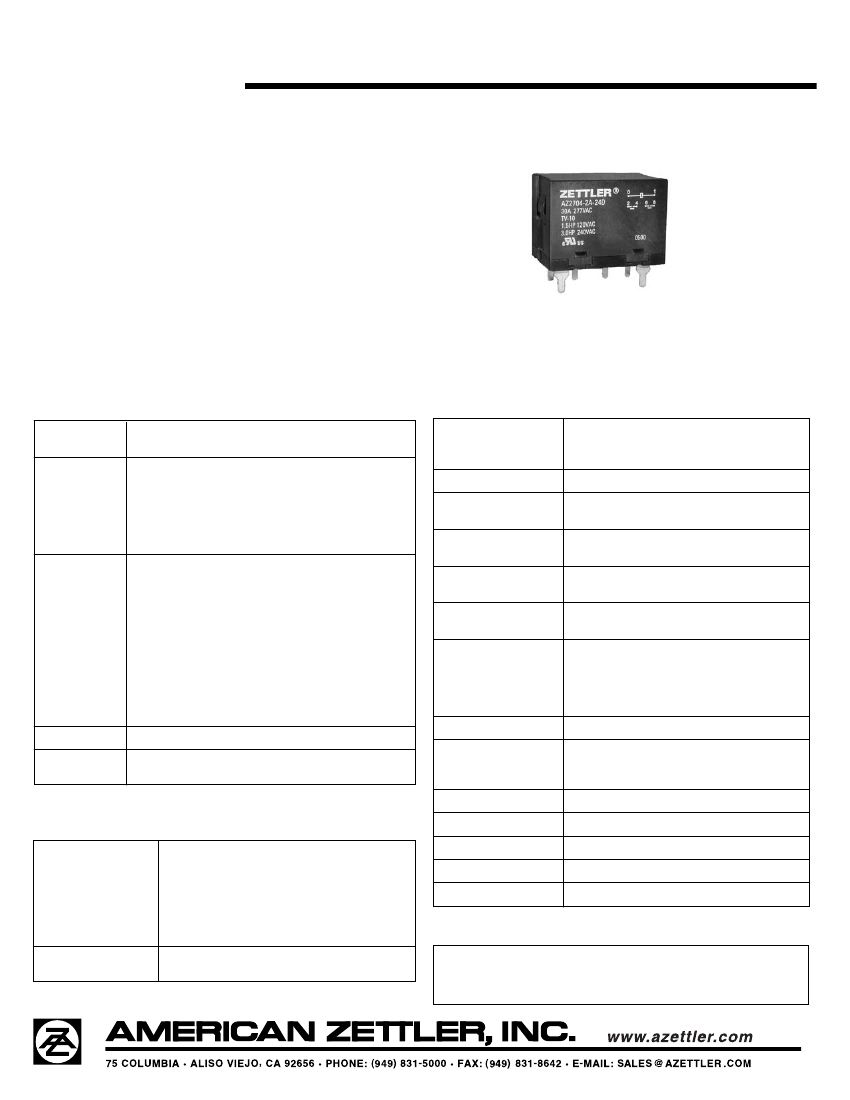

AZ2704
30 AMP POWER RELAY
FEATURES
•
•
•
•
•
•
Low cost
30 Amp switching
Class B insulation system standard, Class F available
PC mount
4 kV dielectric
Standard (2.4 mm) and wide contact
gap (3.0 mm) available
•
UL, CUR file E44211
•
TÜV R50164753
CONTACTS
Arrangement
Ratings
SPST (1 Form X)
DPST (2 Form X)
Resistive load:
Max. switched power: 840 W or 8310 VA
Max. switched current: 30 A
Max. switched voltage: 150* VDC or 400 VAC
*
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (max)
Release Time (max)
Minimum operations
1 x 10
6
1 x 10
5
at 30 A 120 VAC Res.
30 ms at nominal coil voltage
30 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
4000 Vrms coil to contact
(at sea level for 1 min.)
2000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 5% of nominal coil voltage (DC)
Greater than 15% of nominal coil voltage (AC)
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F) - Class B
-40°C (-40°F) to 105°C (221°F) - Class F
-40°C (-40°F) to 130°C (266°F) - Class B
-40°C (-40°F) to 155°C (311°F) - Class F
0.062" DA at 10–55 Hz
Rated Load
UL, CUR
30 A at 277 VAC res. 30k cycles [1]
1.5 HP at 120 VAC [1]
3 HP at 240 VAC [1]
TV-10 at 120 VAC [1]
30 A at 277 VAC res. 70k cycles [2]
3 HP at 240 VAC 100k cycles [2]
10 A at 120 VAC tungsten load, 10k cycles [2]
27 A at 240 VAC, cos phi = .8, 50k cycles
[1] silver cadmium oxide,
[2] silver tin oxide
TÜV
Material
Resistance
Silver cadmium oxide, silver tin oxide
< 100 milliohms initially
(24 V, 1 A voltage drop method)
Vibration
Shock
Operating
10 g, 11 ms,
1
/
2
sine (no false operation)
Non-Operating
100 g, 11 ms,
1
/
2
sine (no damage)
Enclosure
P.B.T. polyester
Tinned copper alloy, PC mount
270°C (518°F)
5 seconds
120 grams
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
1.08 W (DC)
1.2 VA (AC)
3.8 W at 20°C (68°F) ambient
50°C (90°F) at nominal coil voltage
Max. 130°C (266°F) - Class B
Max. 155°C (311°F) - Class F
Terminals
Max. Solder Temp.
Max.
Solder Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.

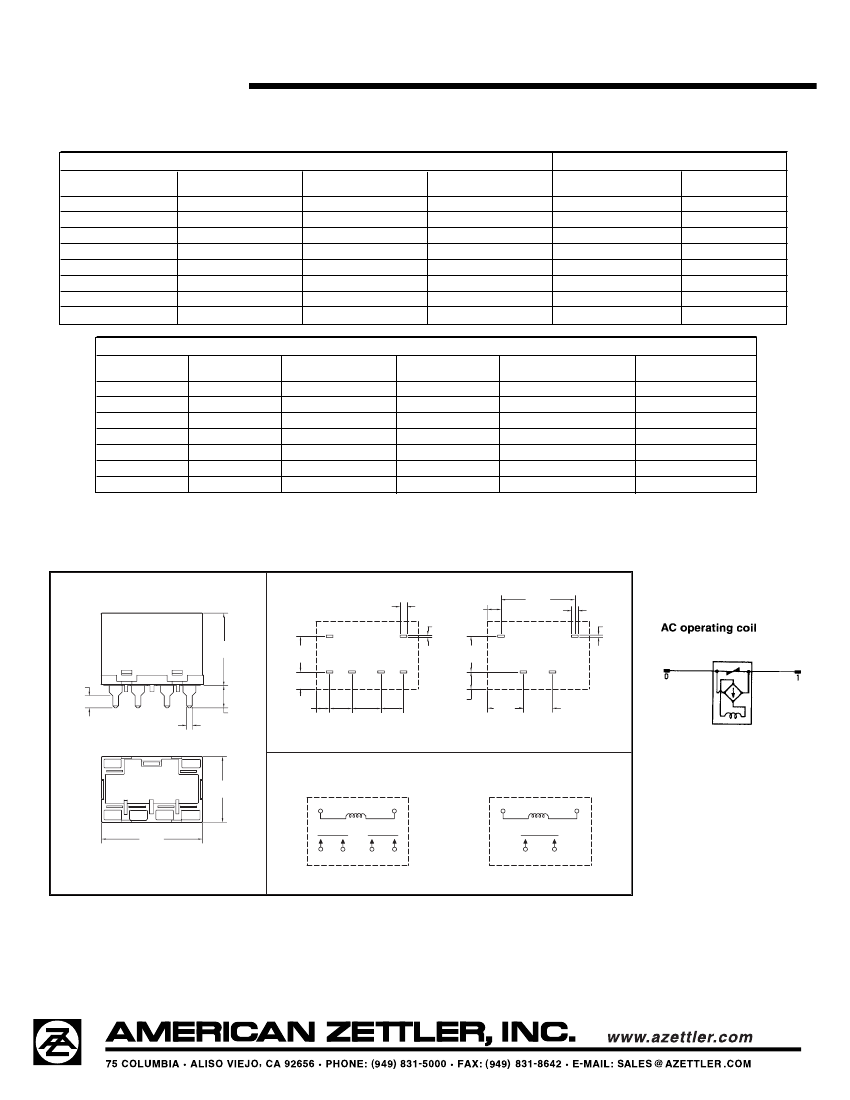

7/6/11
