533425-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 533425-2

533425-2: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,405 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL; CategoryThe connector The connector; File Size139KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

533425-2 Overview

HEADER CONNECTOR,PCB MNT,PLUG,405 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL

533425-2 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Board mount options	#2-56 THD HOLE
body width	0.36 inch
subject depth	0.724 inch
body length	14.85 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	405
Base Number Matches	1

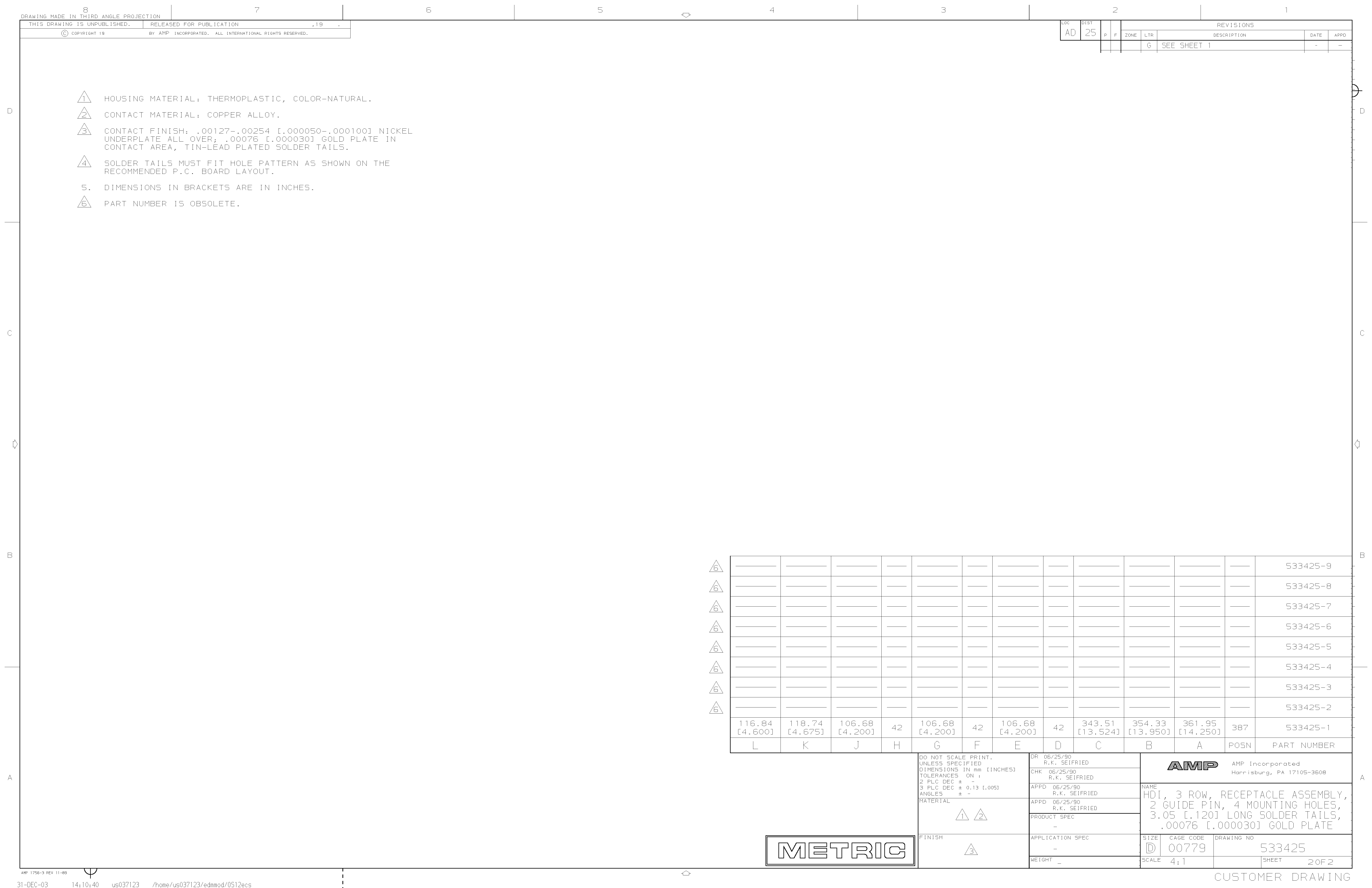

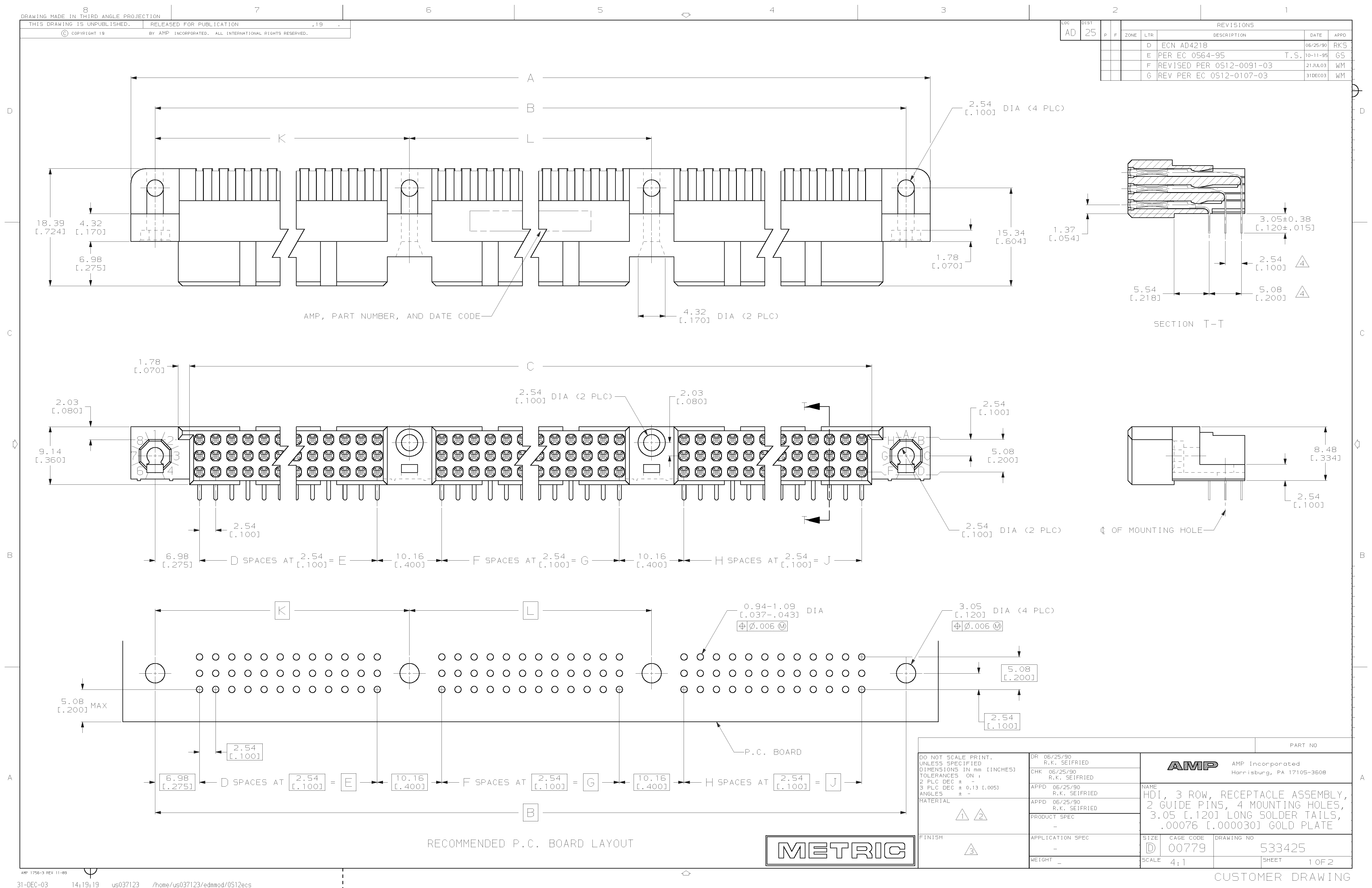

Preview

Download Datasheet

View All

533425-2 Related Products

	533425-2	533425-3	533425-4	WBC-T0303AG-06-2290-DC	533425-6	533425-7	533425-8	533425-9
Description	HEADER CONNECTOR,PCB MNT,PLUG,405 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	CONNECTOR, FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	Array/Network Resistor, Center Tap, Thin Film, 0.25W, 229ohm, 100V, 0.5% +/-Tol, -50,50ppm/Cel, 0303,	CONNECTOR, FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown	unknown	unknown
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	-	3	3	3	3
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	-	-	1	-	1
DIN compliance	-	NO	NO	-	NO	NO	NO	NO
Filter function	-	NO	NO	-	NO	NO	NO	NO
IEC compliance	-	NO	NO	-	NO	NO	NO	NO
MIL compliance	-	NO	NO	-	NO	NO	NO	NO
Manufacturer's serial number	-	533425	533425	-	533425	533425	533425	533425
Plug information	-	NO	NO	-	NO	NO	NO	NO
Mixed contacts	-	NO	NO	-	NO	NO	NO	NO
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
