CM23-060N Overview

AC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid,

CM23-060N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Semiconductor Circuits Inc
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	110 V
Minimum input voltage	90 V
JESD-30 code	R-XSMA-X5
Maximum load regulation	0.1%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.15 V
Minimum output voltage	14.85 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	UNSPECIFIED
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	6 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

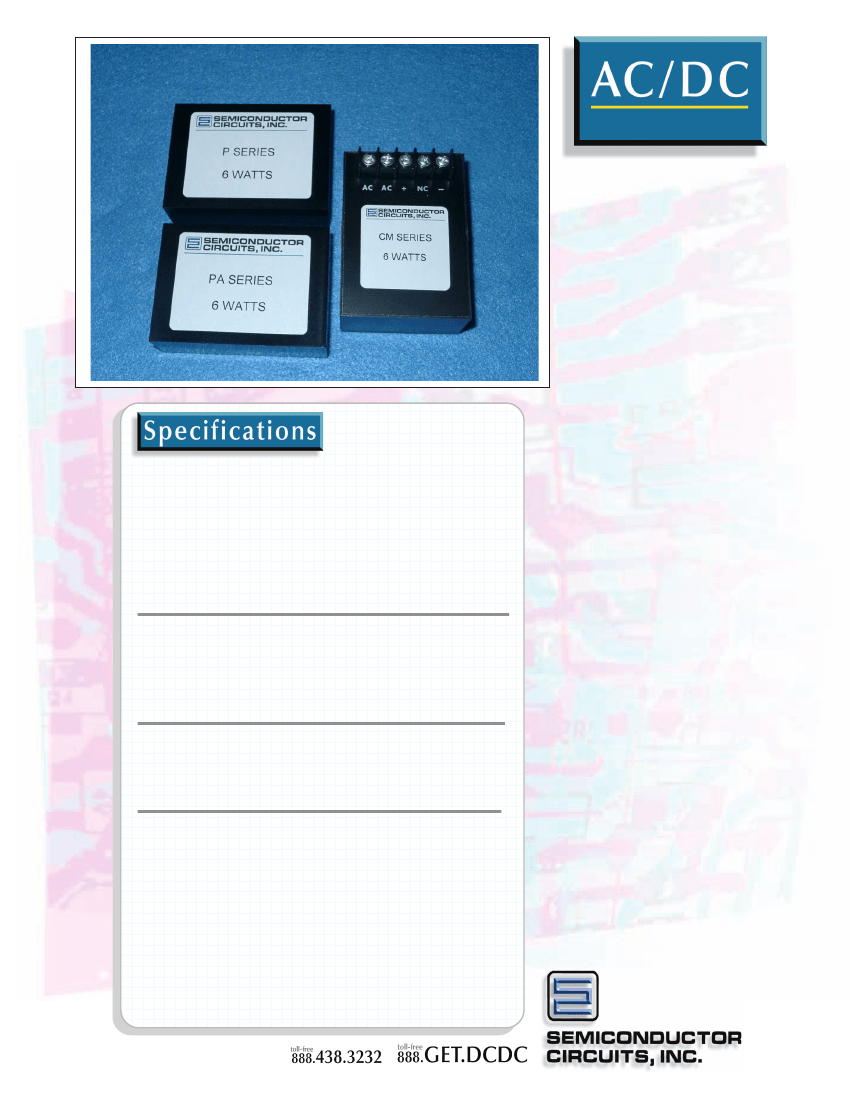

Preview

Download Datasheet

View All

765432121098765432109876543210987654321

GENERAL

OUTPUT

INPUT

All specifications are typical at nominal line and full load at 25°C unless

otherwise noted and are subject to change without notice.

ENVIRONMENTAL

Voltage Tolerance

Ripple and Noise (PARD)

Short Circuit Protection

Temperature Coefficient

Voltage and Frequency

Standard

105 to 125 Vac - 50 to 440 Hz

Suffix I

200 to 252 Vac - 50 to 60 Hz

Suffix N

90 to 110 Vac - 50 to 60 Hz

Suffix K

200 to 252 Vac - 50 to 60 Hz

Suffix K2

105 to 125/210 to 250 Vac

I/O Isolation

Suffix I

Operating Temperature

Storage Temperature

Cooling

CM, P, PA Series

1500 Vac

2500 Vac

± 1%

1mV RMS

Current Limiting

0.02% / °C

-25°C to +71°C No Derating

-25°C to +85°C

Free-air Convection

The CM Series are high performance

chassis mount versions employing a

top-mounted, five terminal barrier strip

for power entry and exit. These units

are ideal for systems that are best

implemented with “hard wire” power

cabling techniques. Features include

MTBF’s of greater than 150,000 hours,

lower case temperature rise (to 18°C

cooler) and the high in-circuit perfor-

mance. This higher efficiency results in

lower ambient temperatures and

greater system reliability. Dual output

tracking is standard.

he CM, P and PA Series boast

over a decade of reliable, field

proven service and are the

recognized industry standard for high

performance AC/DC power supplies.

The PA Series is equipped with industry

standard 2.2” pin spacing while the P

Series is 2.0”.

Single/Dual Outputs

6 Watts

High performance design

Ultra-low noise

Continuous short circuit

protection
