Part Number

Search

151.5155.4506

Description
Electric Fuse, 5A, 36VDC, Inline/holder, ROHS COMPLIANT
CategoryCircuit protection    Circuit protection
File Size100KB,1 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric Compare View All

151.5155.4506 Overview

Electric Fuse, 5A, 36VDC, Inline/holder, ROHS COMPLIANT

151.5155.4506 Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
ECCN codeEAR99
body width5 mm
body height6 mm
Body length or diameter25 mm
Circuit protection typeELECTRIC FUSE
Manufacturer's serial number151.51
Installation featuresINLINE/HOLDER
method of packingBULK
physical size25mm x 5mm x 6mm
Rated current5 A
Rated voltage (DC)36 V
surface mountNO
Terminal shapeEND CAP
Base Number Matches1

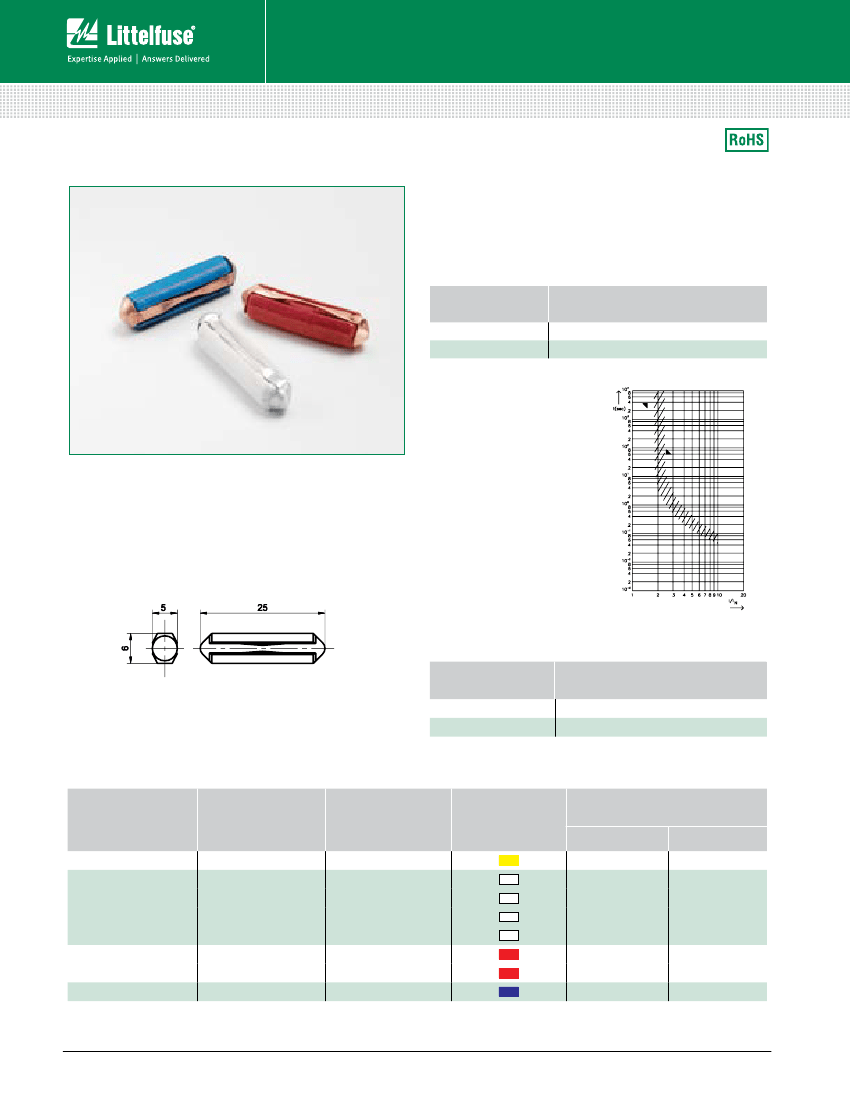

Specialty Products
ATS CerAmiC FuSe rATed 36V
Specifications
Insulating Body:
Melting Element:
Complies with:
Out of ceramic
See chart below
DIN 72581-1
Ordering Information
Part Number
151.51xx.xx6
151.51xx.xx2
Package Size
100
5000
Pre-Arcing Time-Limits
Description
36 VDC Torpedo-style fuse links with current rating 5A to 25A.
Dimensions
Dimensions in mm
FI = 1.00 (max. operating current:
1.0 x I
rat
at 23°C)
Time-Current Characteristics
% of Rating
150
250
Opening Time Min / Max (s)
1h/–
– / 60 s
Ratings
Part Number
151.5155.450_
151.5112.4806
151.5152.4802
151.5162.4802
151.5173.4802
151.5182.516_
151.5182.5162
151.5182.525_
Current Rating
5A
8A
8A
8A
8A
16 A
16 A
25 A
Melting Element
Zn, gal. SN
Zn
Zn, gal. SN
CuZn
CuZn
Cu
Zn, gal. SN
Cu
Housing Color
Typ. Voltage Drop
Standard DIN max.
100 mV
100 mV
100 mV
100 mV
100 mV
100 mV
100 mV
100 mV
Littelfuse max.
50mV
50mV
50mV
50mV
50mV
50mV
50mV
50mV
Corresponding holder see Section “Fuse Holders.”
www.littelfuse.com
174
© 2012 Littelfuse • Transportation Products Catalog

151.5155.4506 Related Products

151.5155.4506 151.5112.4806 151.5182.5166 151.5152.5162 151.5182.5162 151.5182.5252 151.5162.4802
Description Electric Fuse, 5A, 36VDC, Inline/holder, ROHS COMPLIANT Electric Fuse automotive fuses 36v 16a ats ceramic torpedo automotive fuses 36v 16a ats ceramc din72581/1 znsn automotive fuses 36v 16a ceramc E-Cu din72581/1 ats automotive fuses 36v 25a ceramc E-Cu din72581/1 ats automotive fuses 36v 8A ats ceramic din72581/1 znsn
package instruction ROHS COMPLIANT - ROHS COMPLIANT - ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code unknow unknown unknow - unknow unknow unknow
ECCN code EAR99 EAR99 EAR99 - EAR99 EAR99 EAR99
body height 6 mm 6 mm 6 mm - 25 mm 25 mm 25 mm
Body length or diameter 25 mm 25 mm 25 mm - 5 mm 5 mm 5 mm
Circuit protection type ELECTRIC FUSE ELECTRIC FUSE ELECTRIC FUSE - ELECTRIC FUSE ELECTRIC FUSE ELECTRIC FUSE
Manufacturer's serial number 151.51 - 151.51 - 151.51 151.51 151.51
Installation features INLINE/HOLDER INLINE/HOLDER INLINE/HOLDER - INLINE/HOLDER INLINE/HOLDER INLINE/HOLDER
method of packing BULK BULK BULK - BULK BULK BULK
physical size 25mm x 5mm x 6mm - 25mm x 5mm x 6mm - 5mm x 25mm 5mm x 25mm 5mm x 25mm
Rated current 5 A 8 A 16 A - 16 A 25 A 8 A
Rated voltage (DC) 36 V 36 V 36 V - 36 V 36 V 36 V
surface mount NO NO NO - NO NO NO
