NH-DIN 3 - DIN 3C 400V

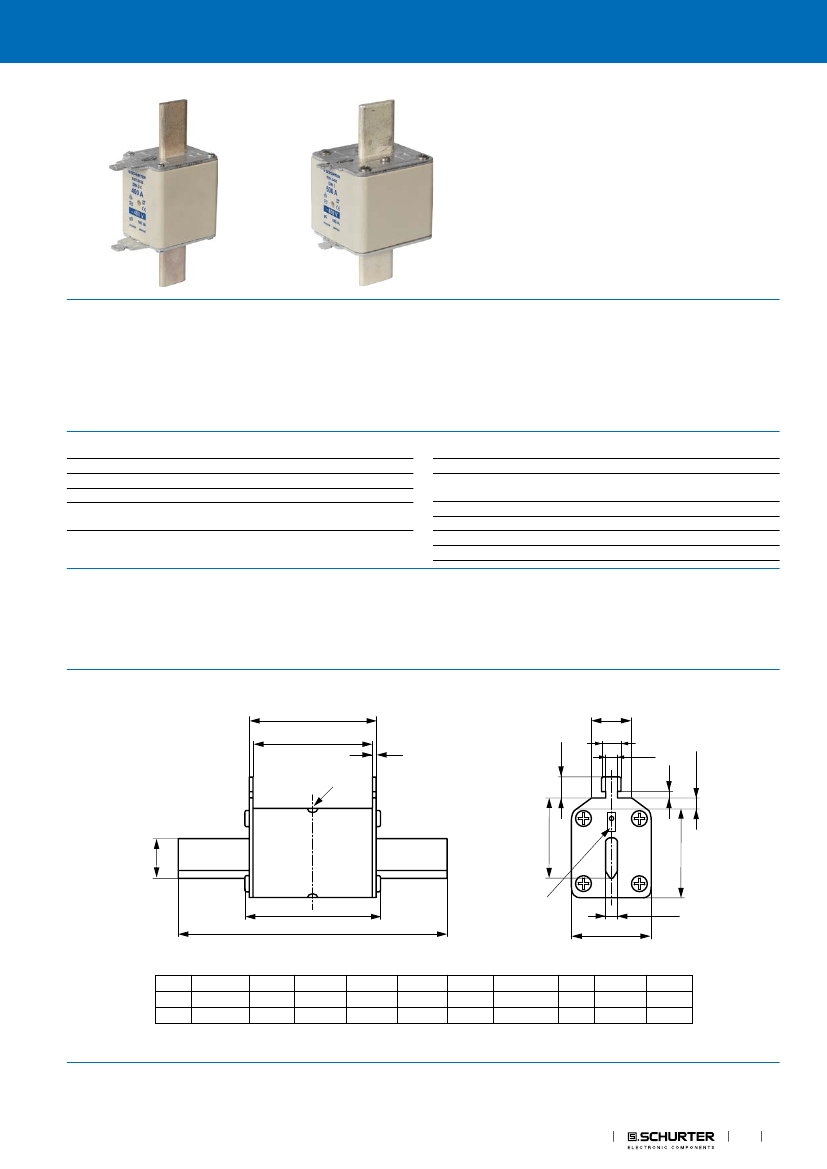

Fuse NH-DIN3-DIN3C 400V
Description
-
-
-
-
-
-
-
Characteristic gG (gL)
According to IEC 269
According VDE 0636
energy saving
Selectivity 1:1.25
Removal tags energized
Dimensions accroding to DIN 43620
Weblinks
pdf-datasheet, html-datasheet, CE declaration of conformity, RoHS,
REACH, CAD-Drawings, Detailed request for product
Technical Data
Rated Current In
Rated Voltage
Breaking Capacity
Rated Power Operating Fre-
quency fe
315- 630 A
400 VAC
100 kA
50 Hz
Contact blade
Characteristic resistance
Indicator
Basic Design
Insulator
Metal components
Full contact blades, Cu silvered
even with alternating load
nonagin to VDE 0636
Combi indicator
Ceramic
corrosion-resistant (rustproof)
Power Dissipation (Watt) operating temperature max.
The power dissipation is the so called power loss at rated current load and operation temeperature acc. VDE 0636 . It is to be measeured in Watt at
AC condition. The voltage tap is to be assured that the power dissipation of the blade contacts are included. This means the measure contact need
to be applied at the ends of the blade contacts. The standard VDE 0636 part 1 and 2 requires that following maximal permissiable power losses are
not exceeded.
Dimension
a4
10
-1
a3
d
1)
e3
10
-0.3
3
-0.5
c1
2)
e2
6
±0.2
a4
68 ±2,5
68 ±2,5
b1
32 +0,2
25 +0,2
c1
60 ±0,8
60 ±0,8
d
2,5 +1,5/-0,5
2,5 +1,5/-0,5
e1
72
59
e2
72 -2,8
50 ±0,70
e3
20 +5/-2
20 +5/-2
b1
a2
a1
DIN
3
3C
a1
150 ±2,5
150 ±2,5
a2
75 -10
75 -10
a3
62 ±2,5
62 ±2,5
1) Centre indicator
2) Flat indicator
other products
e1
2 min.
6
-0.3
1
NH-DIN 3 - DIN 3C 400V
All Variants
Rated current
[A]
315
355
400
500
630
Style
[Compact]
C
C
C
-
-
Power Loss
[W]
18.9
22.1
24.8
31.0
33.3
1301.0423
1301.0424
1301.0425
1301.0420
1301.0421
Order Number
E-No
www.schurter.com /PG13_14_15
Heavy current
840403289
840403299
840403309
840603319
840603339
Availability for all products can be searched real-time:http://www.schurter.com/Stock-Check/Stock-Check-SCHURTER
Packaging Unit
3 Pcs
2
