8747504/10 | 5ES4 BLACK REEL
Datapipe® 5ES4 Category 5e F/UTP Cable, plenum, black jacket, 4 pair
count, 1000 ft (305 m) length, reel
Product Classification
Portfolio
Brand
Product Type
Regional Availability
Uniprise®
Datapipe®
Twisted pair cable
North America

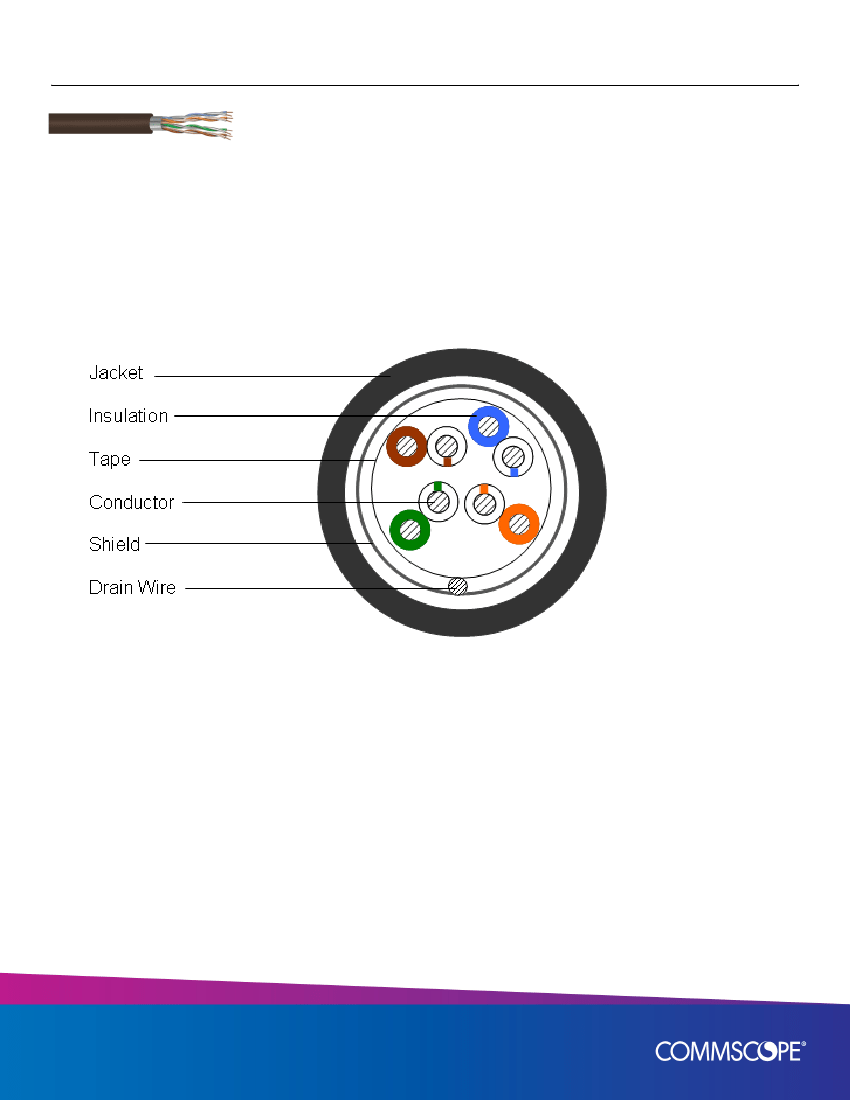

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Drain Wire Material
Insulation Material
Shield (Tape) Material
PVC
Bare copper
Tinned copper
FEP
Aluminum/Polyester
Dimensions
Cable Length
Cable Weight
Diameter Over Jacket, nominal
Jacket Thickness
page 1 of 4
March 25, 2019
305 m | 1000 ft
29.58 lb/kft
5.969 mm | 0.235 in
0.457 mm | 0.018 in
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
8747504/10 | 5ES4 BLACK REEL
Electrical Specifications
ANSI/TIA Category
Characteristic Impedance
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
Note
5e
100 ohm
5%
9.38 ohms/100 m
15 ns
5.6 nF/100 m @ 1 kHz
100 MHz
ANSI/TIA-568-C.2 | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
300 V
1500 Vac | 2500 Vdc
All electrical transmission tests include swept frequency measurements
Nominal Velocity of Propagation (NVP)
73 %
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Operating Temperature
Plenum
CMP
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Drain Wire Gauge
Drain Wire Type
F/UTP (shielded)
Reel
4
Horizontal
Black
5ES4
24 AWG
Solid
8
24 AWG
Solid
Mechanical Specifications
Pulling Tension, maximum
11 kg | 25 lb
Regulatory Compliance/Certifications
Agency
Classification
page 2 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
8747504/10 | 5ES4 BLACK REEL
ISO 9001:2015
Designed, manufactured and/or distributed under this quality management system
page 3 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
8747504/10 | 5ES4 BLACK REEL
Electrical Performance
Std
Typ
IL
NEXT
ACR
PSNEXT
PSACR
ACRF
PSACRF
RL
Freq.
MHz
1
4
8
10
16
20
25
31.25
62.5
100
155
200
250
300
350
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Typical
Insertion Loss (dB/100m)
Near End Crosstalk (dB/100m)
Attenuation to Crosstalk Ratio (dB/100m)
Power Sum Near End Crosstalk (db/100m)
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
Attenuation to Crosstalk Ratio - Far End (dB/100m)
Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
Return Loss (dB)
IL
Std
2.0
4.1
5.8
6.5
8.2
9.3
10.4
11.7
17.0
22.0
Typ
1.9
3.7
5.2
5.8
7.4
8.2
9.2
10.3
14.7
18.6
23.4
26.7
29.9
32.9
35.7
Std
65.3
56.3
51.8
50.3
47.2
45.8
44.3
42.9
38.4
35.3
NEXT
Typ
83.1
73.4
69.0
67.2
64.1
62.6
60.9
59.6
54.4
51.0
46.9
45.1
44.8
43.0
41.6
Std
63.3
52.2
46.0
43.8
39.0
36.5
33.9
31.2
21.4
13.3
ACR
Typ
81.2
69.8
63.9
61.4
56.8
54.4
51.6
49.2
39.8
32.4
23.5
18.4
14.9
10.1
5.9
PSNEXT
Std
62.3
53.3
48.8
47.3
44.2
42.8
41.3
39.9
35.4
32.3
Typ
80.8
71.3
67.0
65.1
62.0
60.5
58.8
57.4
52.4
48.9
45.1
43.2
42.7
40.9
39.7
Std
60.3
49.2
43.0
40.8
36.0
33.5
30.9
28.2
18.4
10.3
PSACR
Typ
78.9
67.6
61.8
59.3
54.7
52.2
49.6
47.1
37.7
30.2
21.7
16.5
12.8
8.0
3.9
Std
63.8
51.8
45.7
43.8
39.7
37.8
35.8
33.9
27.9
23.8
ACRF
Typ
84.4
73.3
67.4
65.4
61.3
59.4
57.6
55.6
49.5
45.5
41.3
39.1
37.1
35.6
34.1
PSACRF
Std
60.8
48.8
42.7
40.8
36.7
34.8
32.8
30.9
24.9
20.8
Typ
82.4
71.4
65.5
63.5
59.4
57.4
55.5
53.5
47.4
43.3
39.3
37.0
35.1
33.4
31.8
Std
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
RL
Typ
33.0
30.6
31.5
32.4
31.8
33.0
33.1
33.4
32.9
29.9
28.0
26.0
25.1
25.0
25.6
page 4 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 21, 2019
