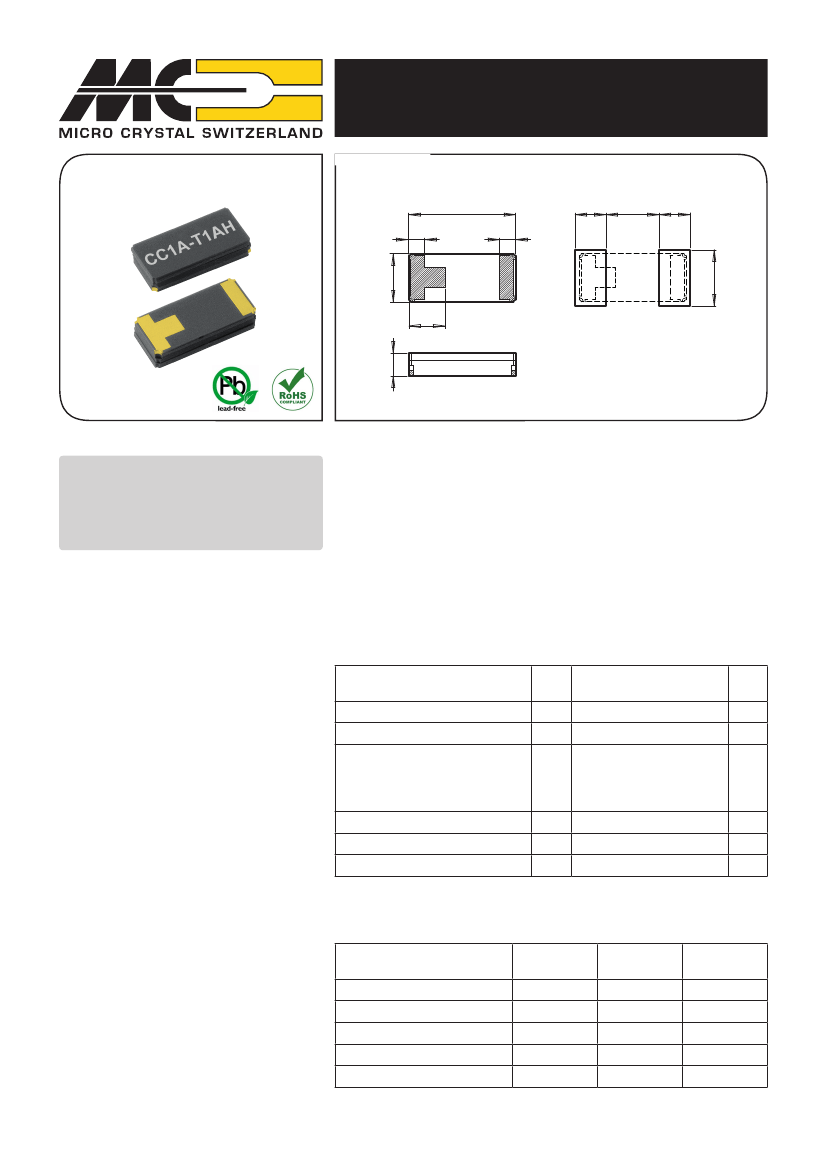

AT-Cut Crystal 8 MHz – 24 MHz
DIMENSIONS
Package:
CC1A-T1AH
up to 200°C
Recommended Solder Pad:
8,0
1,2
1,2
2,3
4,0
2,3
3,7
2,7
1,75 max
All dimensions in mm typical
APPLICATIONS
Telemetry
Optical Network
Airborne Equipment
Geothermal Equipment
Radio Communications
Down Hole and Well Drilling
DESCRIPTION
The CC1A-T1AH is a high frequency SMT Quartz Crystal Unit that
incorporates an AT-cut Quartz Crystal Resonator. It operates under
vacuum in a hermetically sealed ceramic package with ceramic lid.
FEATURES
Outstanding hermetic sealing with gold-tin preform.
High stability and low aging guaranteed by hermetic sealing.
For extreme operating temperature ranges up to 200°C.
Operates in fundamental mode.
High shock and vibration resistant.
100% Pb-free, RoHS-compliant.
ELECTRICAL CHARACTERISTICS
AT 25
o
C
Frequency Range
Load capacitance
Frequency tolerance at +25°C
Frequency vs. temperature
TC: –55 to +125°C
TD: –55 to +175°C
TG: –55 to +200°C
Drive level typ./max.
Insulation resistance min.
Aging first year max.
1)
2)
3)
F
L
C
L
ΔF/F
ΔF/F
0
P
R
i
ΔF/F
8 – 24
20.0
±50
±100
±150
±250
100 / 250
500
±3
4,2
MHz
pF
ppm
ppm
μW
MΩ
ppm
1) Other load capacitances on request; e.g. C
L
: 9,0 pF.
2) Tighter frequency tolerances on request; e.g. ±20 ppm.
3) Tighter thermal stability on request; e.g. ±10 ppm from 0°C to +55°C.
Frequency
8.000 MHz to 9.999 MHz
10.000 MHz to 11.999 MHz
12.000 MHz to 15.999 MHz
16.000 MHz to 19.999 MHz
20.000 MHz to 24.000 MHz
R
S
typ./max.
100
Ω
/ 150
Ω
70
Ω
/ 120
Ω
60
Ω
/ 120
Ω
50
Ω
/ 100
Ω
50
Ω
/ 100
Ω
C
1
typ./max.
4 fF / 7 fF
5 fF / 8 fF
6 fF / 10 fF
8 fF / 11 fF
9 fF / 13 fF
C
0
typ.
2.0 pF
2.2 pF
2.5 pF
2.8 pF
3.2 pF
STANDARD FREQUENCIES
8.0000 MHz
Frequencies
10.0000 MHz 10.1506 MHz
11.0592 MHz
12.0000 MHz
12.2880 MHz 13.5600 MHz 14.3181 MHz 14.7456 MHz 16.0000 MHz
16.3840 MHz 18.4320 MHz 20.0000 MHz 24.0000 MHz
Other frequencies on request
ENVIRONMENTAL
CHARACTERISTICS
Storage temp. range
TC Operating temperature range
TD Operating temperature range
TG Operating temperature range
Shock resistance
Vibration resistance
TERMINATIONS AND
PROCESSING
Type
CC1A-T1AH
Termination
Au flashed pads
SnAgCu solder dipped
pads.
Only available with TC and
TD temperature ranges.
IPC/JEDEC J-STD-020C
260°C / 20 - 40 s
Conditions
–55 to +125°C
–55 to +125°C
–55 to +175°C
–55 to +200°C
10000 g, 0.3 ms, ½ sine
40 g / 10–2000 Hz
Processing
CC1A-T3AH
ORDERING INFORMATION
Ceramic package
Ceramic lid
C C 1 A - T 1 A H 24.000 MHz 20.0 pF ±50 ppm TC QI
Frequency F
L
Load capacitance C
L
20.0 pF
Other C
L
on request
Package size
1
= 8.0 x 3.7 x 1.75 mm
AT-cut
SMT package
Pads
1
= Au flashed pads
3
= SnAgCu solder dipped pads
Pads on both ends
High temperature
Frequency tolerance
±50 ppm
Tighter freq. tolerances on request
Temperature range
TC
= -55 to +125°C
TD
= -55 to +175°C
TG
= -55 to +200°C
Qualification
QI
= Industrial Grade (Standard)
QS
= Custom Specification
A unique part number will be generated for each product specification, i.e:
20xxxx-ML01
1'000 pcs (in 16 mm tape on 7" reel)
20xxxx-EA00
xxx pcs (in ESD plastic tray)
All specifications subject to change without notice.
Micro Crystal AG
Muehlestrasse 14
CH-2540 Grenchen
Switzerland
Phone +41 32 655 82 82
Fax
+41 32 655 82 83
sales@microcrystal.com
www.microcrystal.com
Version 2.3/05.2018
