52559-1170 datasheet, PDF - EEWORLD Datasheet

52559-1170: DescriptionCard Edge Connector, 11 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator,; CategoryThe connector The connector; File Size690KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

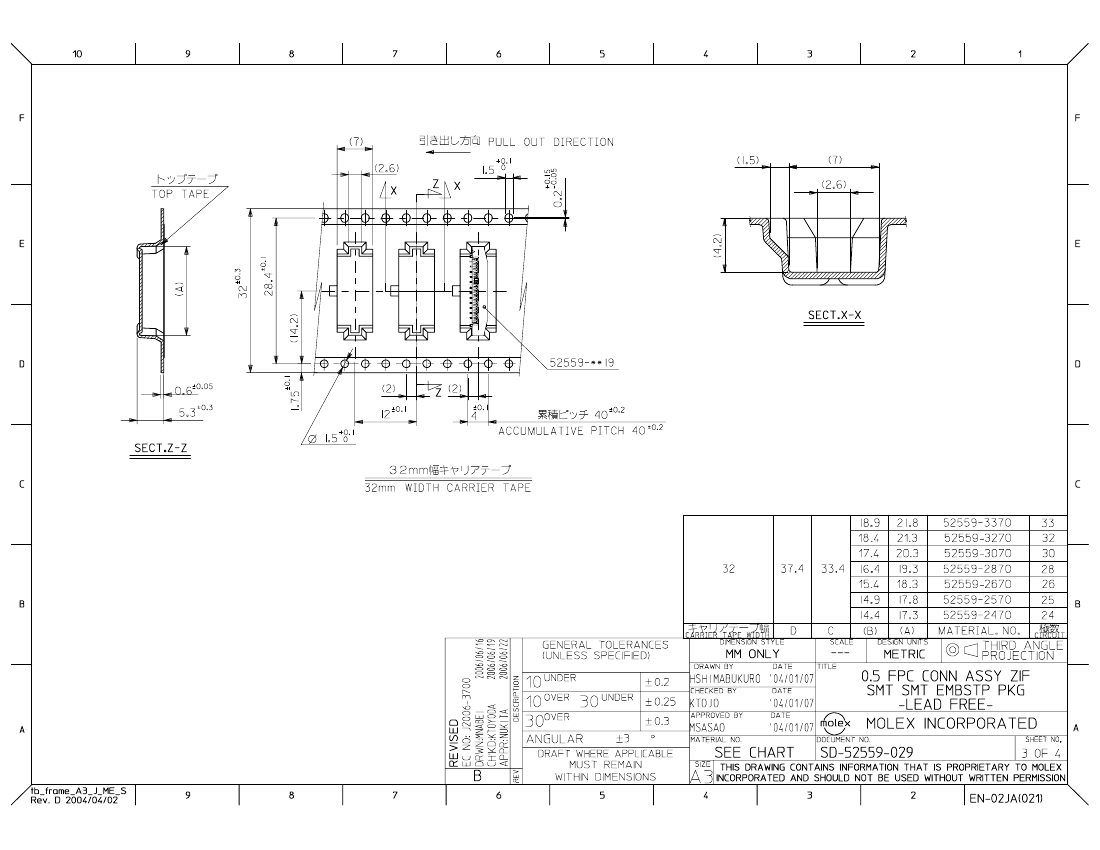

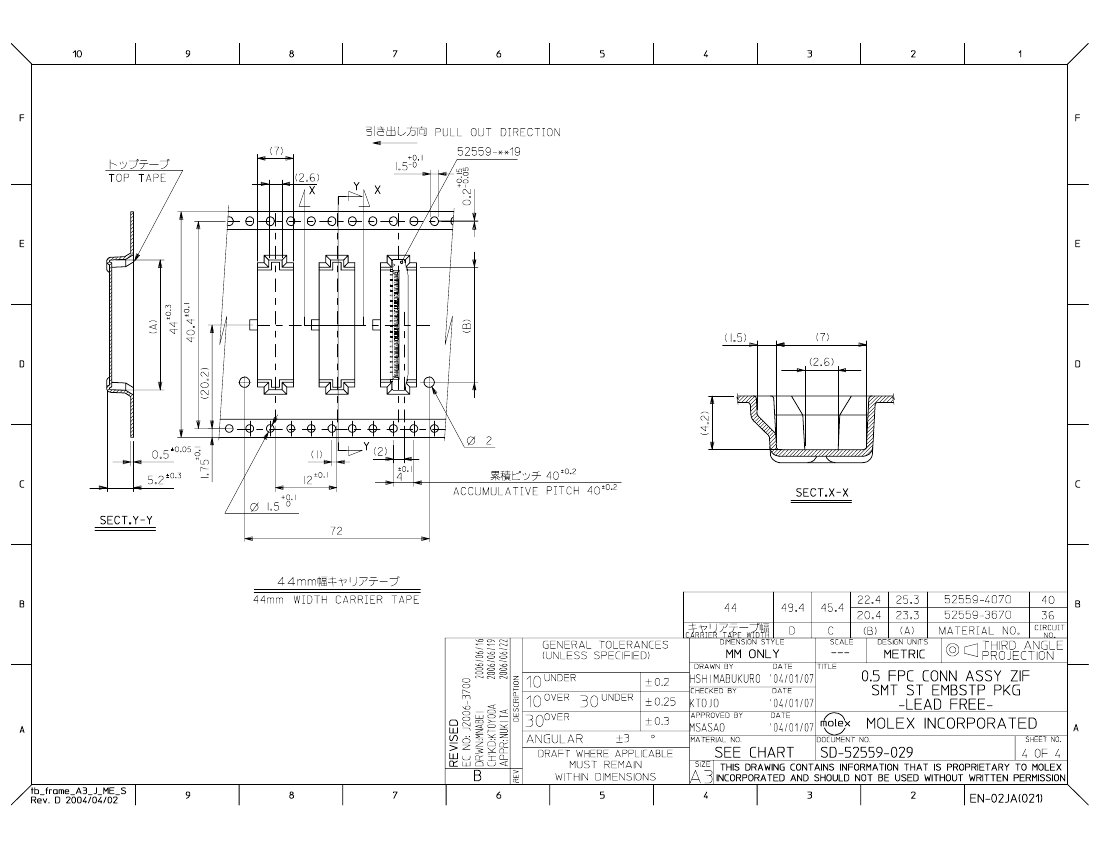

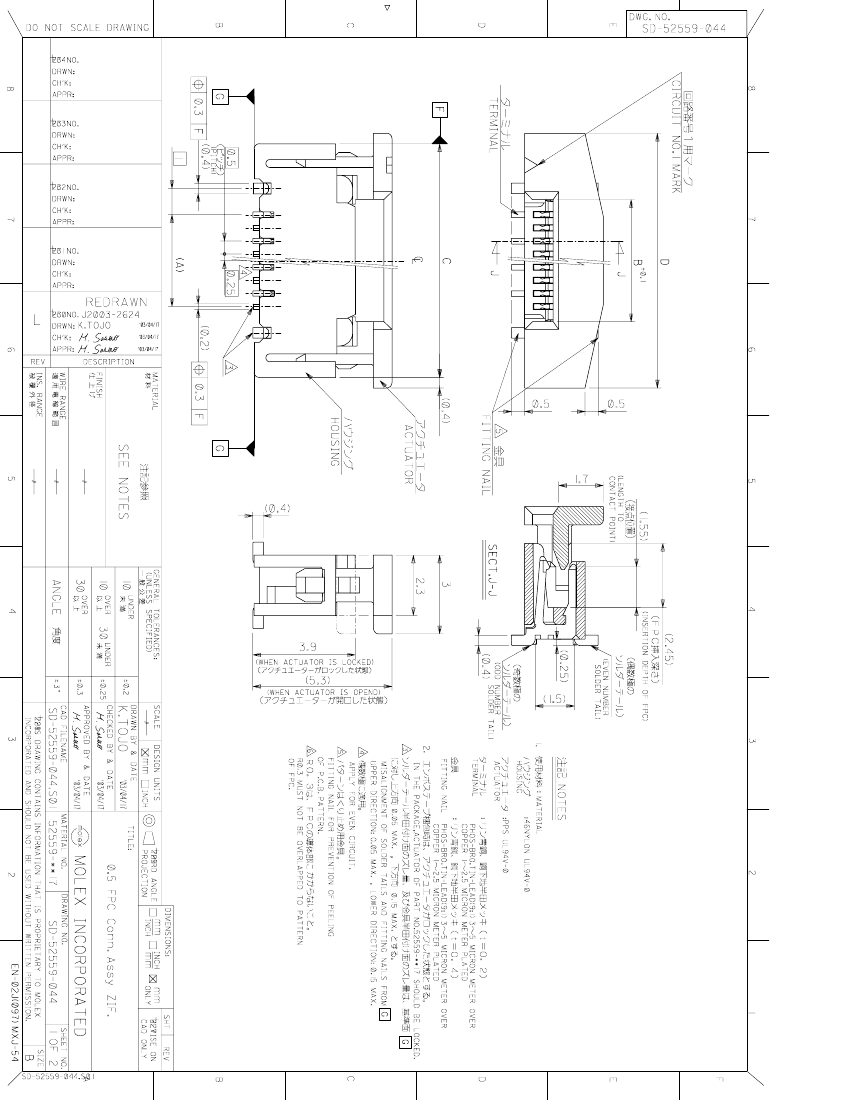

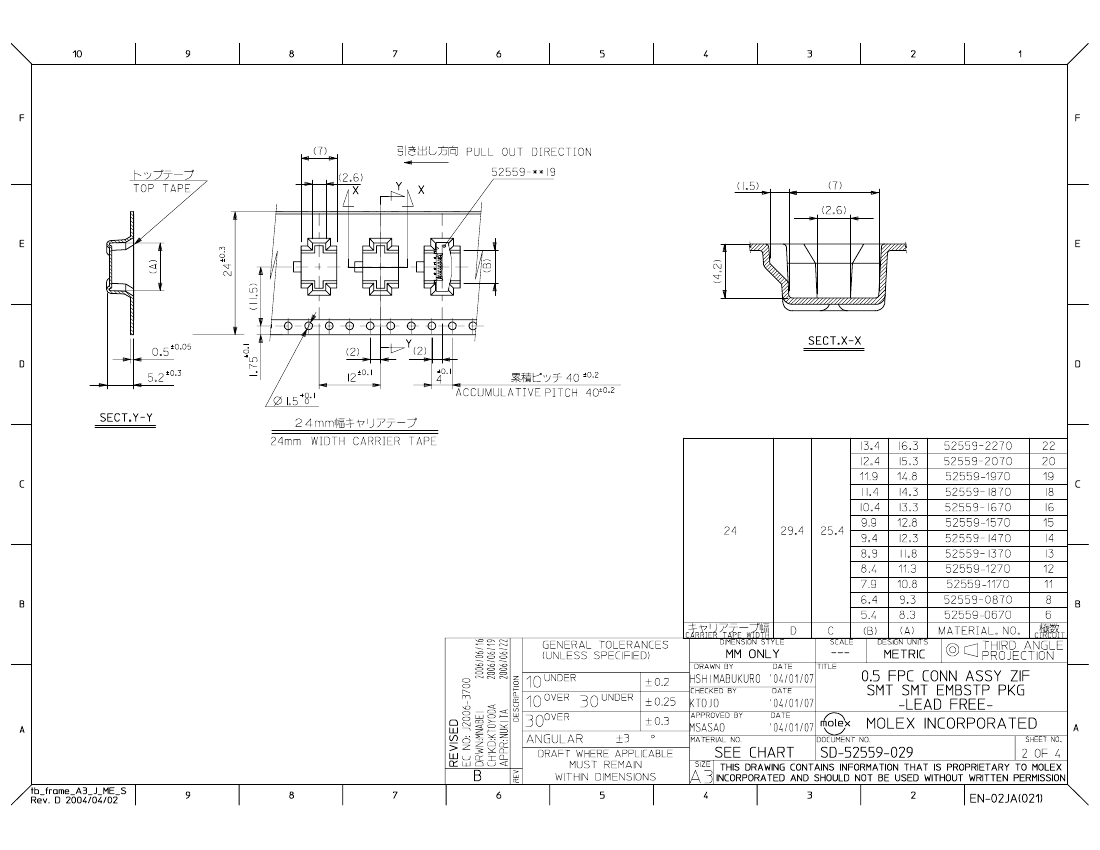

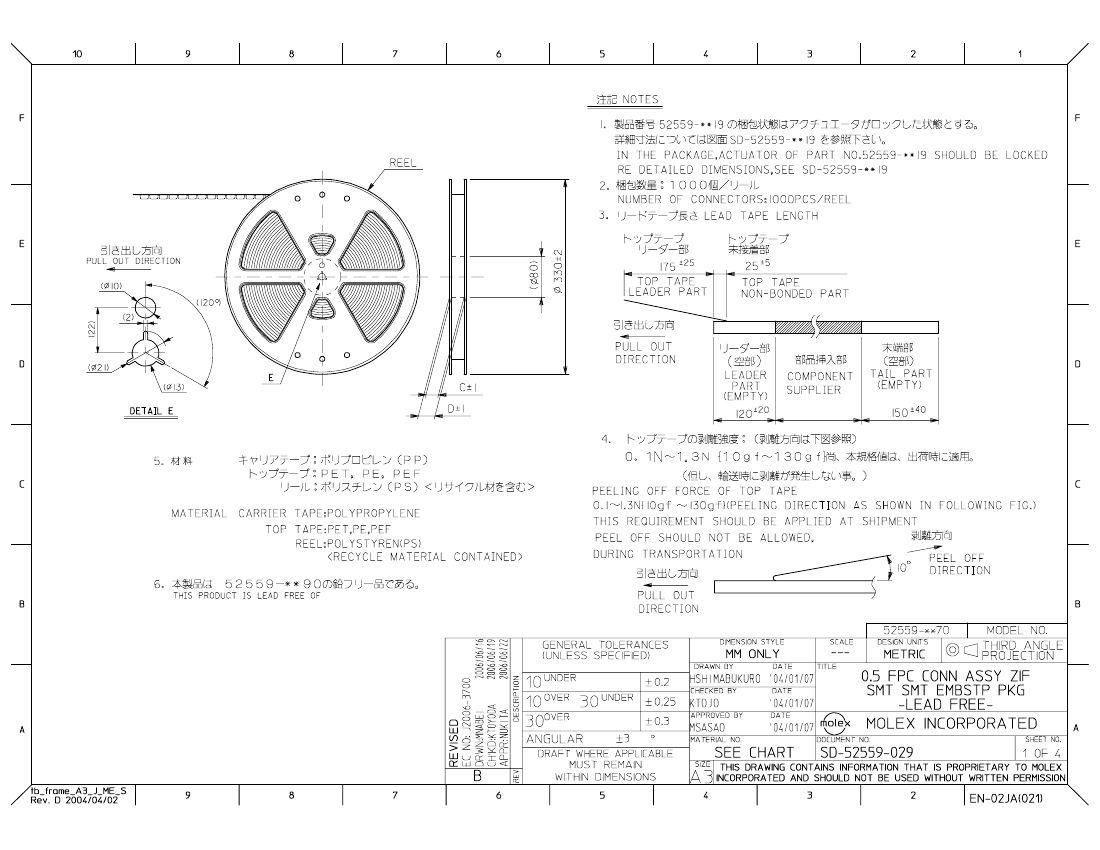

52559-1170 Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304029620
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Manufacturer	Molex
Samacsys Modified On	2022-06-14 20:41:16
YTEOL	0
Other features	ROHS, ELV COMPL & EMBOSSED PKG
Board mount options	FITTING NAIL
body width	0.091 inch
subject depth	0.154 inch
body length	0.441 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SINGLE PRONG
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	POLYAMIDE
Plug contact pitch	0.020 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
Plating thickness	39u inch
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
