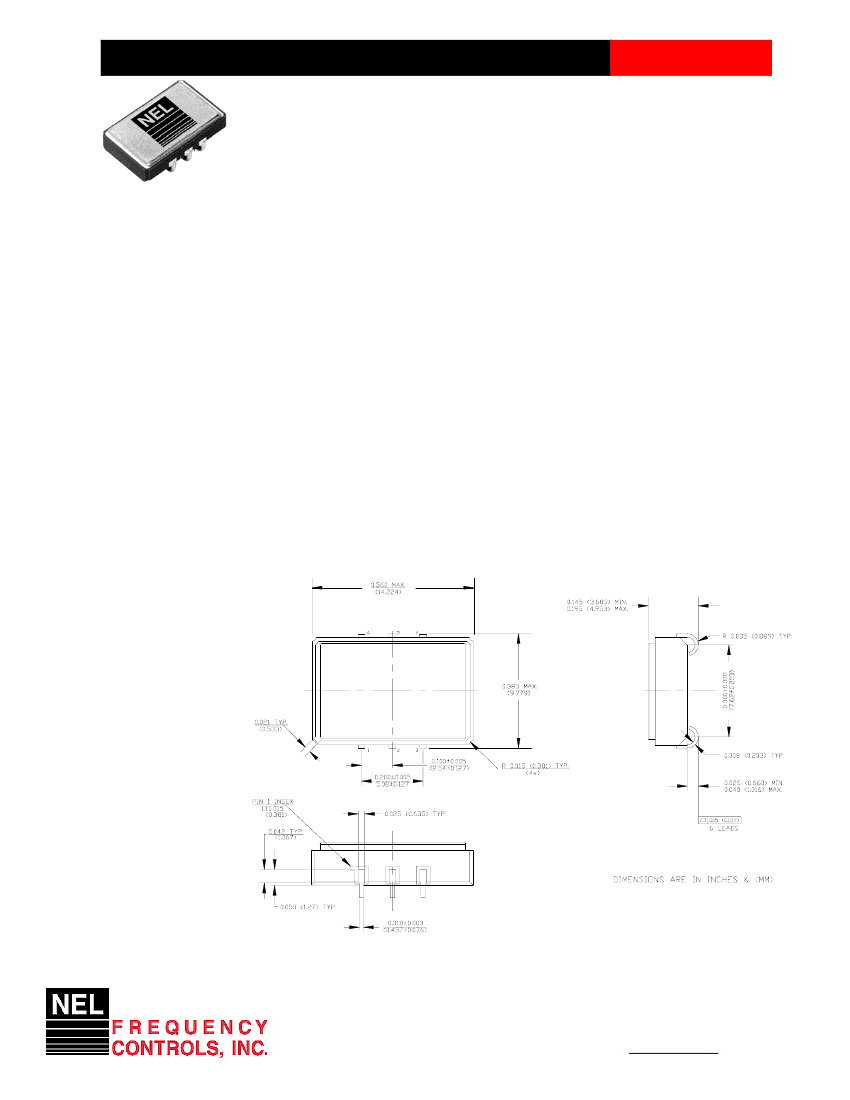

CRYSTAL CLOCK OSCILLATORS
Differential Positive ECL (DPECL)
Fast Edge
Data Sheet 0350B
Rev. K
PJ-A2980 Series
Description
The
PJ-A2980 Series
of quartz crystal oscillators provide DPECL Fast Edge compatible signals. Systems
designers may now specify space-saving, cost-effective packaged PECL oscillators to meet their timing
requirements.
Features
• Wide frequency range–60.0MHz to 312.5MHz
• User specified tolerance available
• Space-saving alternative to discrete component
oscillators
• High shock resistance, to 1000g
• 3.3 volt operation
• Metal lid electrically connected to ground to
reduce EMI
• Fast rise and fall times <600 ps
• COTS/Dual use
• High Reliability - NEL HALT/HASS qualified for
crystal oscillator start-up conditions
• Low Jitter - Wavecrest jitter characterization
available
• Overtone technology
• High Q Crystal actively tuned oscillator circuit
• Power supply decoupling internal
• No internal PLL avoids cascading PLL problems
• High frequencies due to proprietary design
• Gold plated pads
• RoHS Compliant, Lead Free Construction
Electrical Connection
Pin
1
2
3
4
5
6
Connection
Enable/Disable
N.C.
V
EE
/Ground
Output
/Output
V
CC
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
PJ-A2980 Series
Continued
Differential Positive ECL (DPECL) Fast Edge
Operating Conditions and Output Characteristics
Electrical Characteristics
Parameter
Frequency
Duty Cycle
Logic 0
(2)
Logic 1
(2)
Rise & Fall Time
T
pd (4)
Jitter, Integrated
Jitter, Wavecrest
Characterized
(3)
Phase Noise
Symbol
Conditions
Min
-----
-----
60.0MHz
-----
@ V
CC
-1.29V
45/55%
V
OL
-----
-----
V
OH
-----
V
CC
-1.025
tr,tf 20-80%V
O
with 50 ohm load to V
CC
-2V -----
-----
-----
-200 psec
J
Integrated from phase noise,
-----
12kHz to 20MHz, RMS
-----
Random Period
Accum, pk-to-pk
125MHz
@ 10Hz
@100Hz
@1kHz
@10kHz
@100kHz
@ >1Mhz
with V
EE
= 0V
with V
EE
= 0V
Overall conditions including:
voltage, calibration, temp.,
10 yr aging, shock, vibration
-----
-----
-----
-----
-----
-----
-----
-----
2.0V
-----
-100ppm
Data Sheet 0350B
Rev. K
Typical
-----
-----
-----
-----
-----
-----
0.1 ps
2.3ps
29ps
-70 dBc/Hz
-102 dBc/Hz
-135 dBc/Hz
-145 dBc/Hz
-145 dBc/Hz
-145 dBc/Hz
-----
-----
-----
Max
312.5MHz
55/45%
V
CC
-1.62V
-----
600 psec
+200 psec
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
0.8V
+100ppm
£(Δf)
Enable Voltage
(5)
Disable Voltage
Frequency Stability
(1)
-----
-----
dF/F
General Characteristics
Parameter
Supply Voltage
(6)
Supply Current
Output current
Operating temperature
Storage temperature
Power Dissipation
Load
Start-up time
Conditions
Min
-----
3.135V
50 ohm termination
0.0 mA
To 2.00V below V
CC
I
O
Low level Output Current 0.0 mA
------
0°C
T
A
-----
-55°C
T
S
P
D
-----
-----
50 Ohm to V
CC
-2V or Thevenin Equivalent, Bias Required
-----
-----
t
S
Symbol
V
CC
I
CC
Typical
3.3V
-----
-----
-----
-----
-----
2 ms
Max
3.465V
80 mA
±50.0 mA
70°C
125°C
277 mW
10 ms
Environmental and Mechanical Characteristics
Mechanical Shock
Thermal Shock
Vibration
Soldering Condition
Hermetic Seal
Per MIL-STD-202, Method 213, Condition E
Per MIL-STD-883, Method 1011, Condition A
0.060" double amplitude 10 Hz to 55 Hz, 35g’s 55Hz to 2000 Hz
300°C for 10 seconds
Leak rate less than 1 x 10
-8
atm.cc/sec of helium
Footnotes:
1) Standard frequency stability (±20,±25,±50ppm & others available)
2) V
OL
, V
OH
, referenced to ground (V
EE
) with V
CC
= 3.3V
3) Jitter performance is frequency dependent. Please contact factory for full Wavecrest characterization.
4) Tpd is phse shift between the falling edge of pin 4 at 2.0V and the rising edge of pin 5 at 2.01V.
5) Open to enable pin also enables the output.
6) Internal high frequency power source decoupling.
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
PJ-A2980 Series
Continued
Data Sheet 0350B
Rev. K
Creating a Part Number
PJ - A298X - FREQ
Package Code
PJ 6 J Lead SMD
Tolerance/Performance
0 ±100ppm 0-70°C
1 ±50ppm 0-70°C
7 ±25ppm 0-70°C
9 Customer Specific
A ±20ppm 0-70°C
B ±50ppm -40 to +85°C
C ±100ppm -40 to +85°C
Input Voltage
Code Specification
A
3.3V
5V

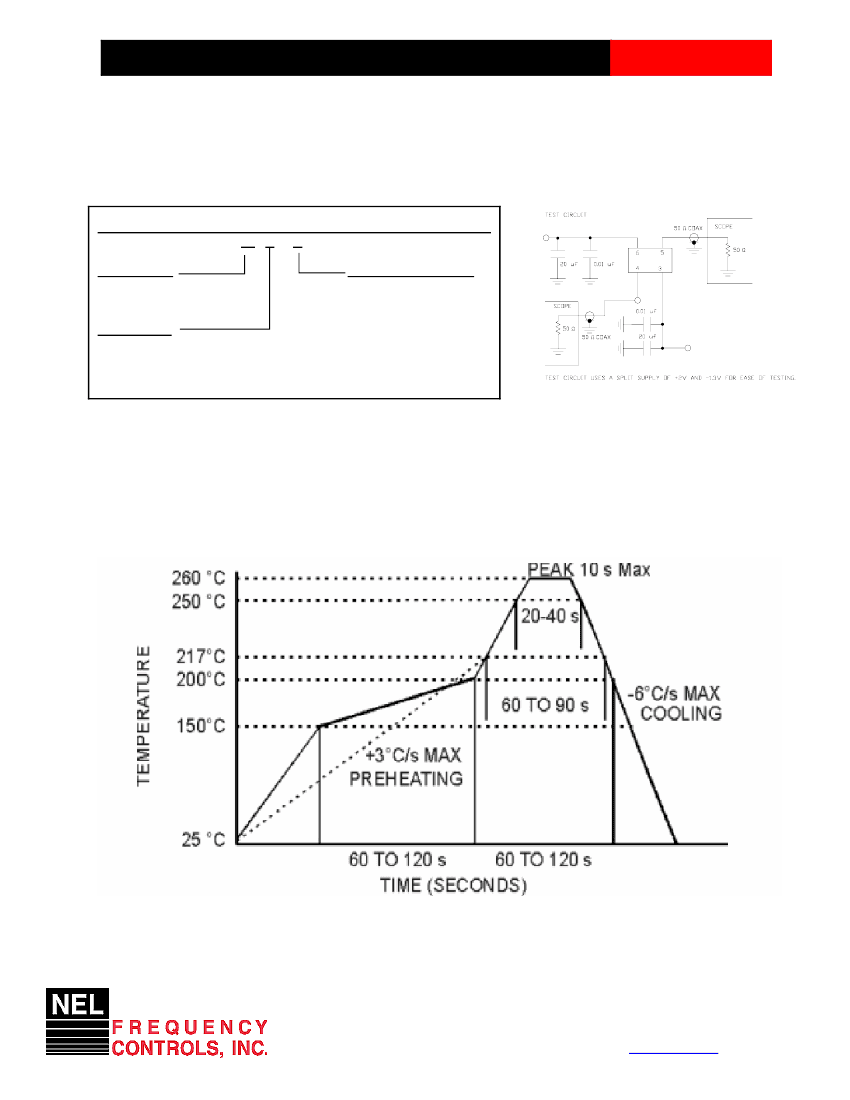

Max Reflow Profile
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
