DIMM-2024-168-2-D-L-BK-GD

Description
Card Edge Connector, 168 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size48KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

DIMM-2024-168-2-D-L-BK-GD Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

DIMM-2024-168-2-D-L-BK-GD Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1292633695
Reach Compliance Codeunknown
Country Of OriginMainland China, Taiwan, USA
YTEOL6.75
Other featuresROHS COMPLIANT
Board mount optionsSPLIT BOARD LOCK
body width0.299 inch
body length5.567 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.05 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
PCB contact patternSTAGGERED
PCB contact row spacing0.075 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
Terminal length0.126 inch
Terminal pitch0.1 mm
Termination typeSOLDER
Total number of contacts168
1
2
3
4
5
6
7
8
9
A

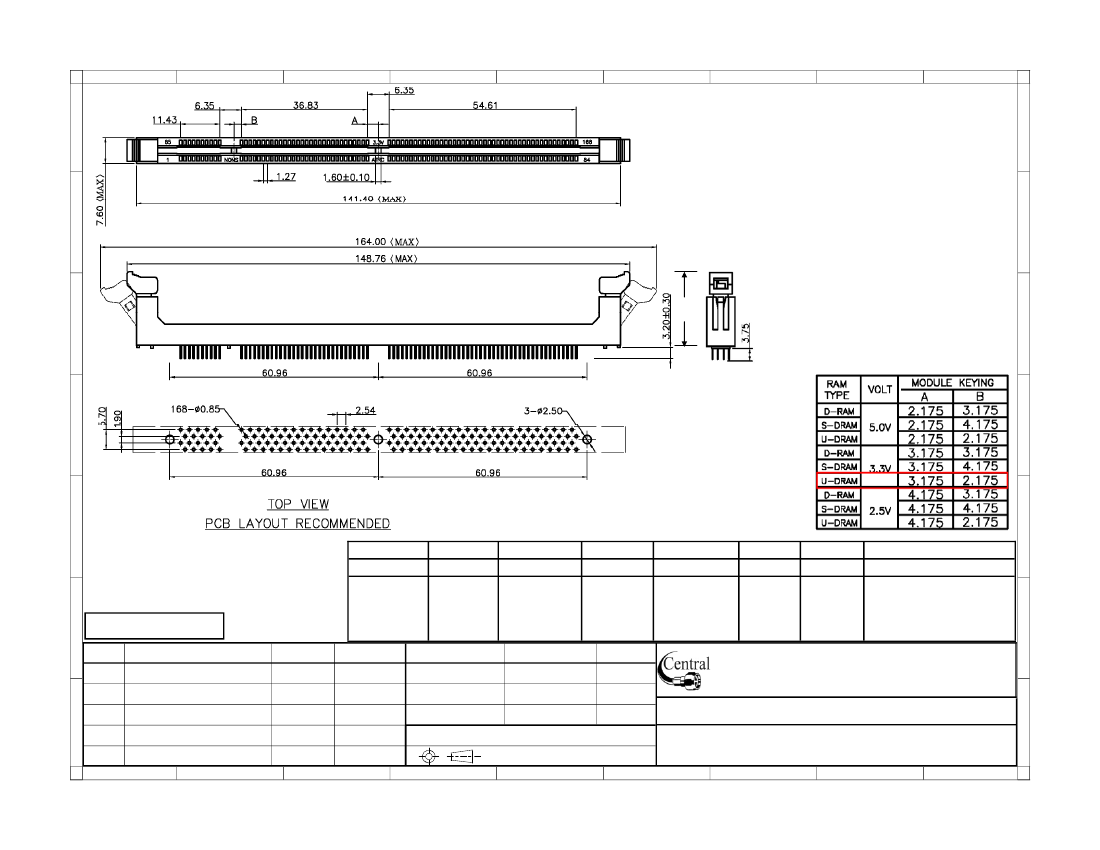

SPECIFICATIONS
Voltage Rating:
Contact Material:
Contact Resistance:
Housing Material:
Insulation Resistance:
Soldering Temperature:
Withstanding:
Operating Temperature:
B
1A, 250V AC
Copper Alloy
30m ohm max
UL94V-0
1000M ohm min
Lead=245±5ºC, 5Sec
RoHS=2605ºC, 5Sec
AC 500V
-25ºC to +105ºC
A
B
C
22.00
C
D
D
E
E
Series
Style
DIMM
2024
DIMM Socket 2024 Style
F
Contacts
168
168 Contacts
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Module
X
2=2.5V
3=3.3V
5=5.0V
Type
X
D=DRAM
S=SDRAM
U=Unbuffered
DRAM
Material
X
L=LCP
N=Nylon
Color
XX
BK=Black
Plating
XX
SG=Selective Gold
SG15=15u” Selective Gold
GD=Gold
F
Date
02/09/12
02/09/12
02/09/12 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
DIMM-2024-168-3-U-N-BK-SPCL1
G
7
8
9
G
0.00 ± 0.20 Angles ± 3°
UNIT: mm
5
6
Description: Dimm Socket, w/o Board Locks or Centering Pegs
