Part Number

Search

87267-2250

Description
conn header 22pos 2mm vert smd
CategoryThe connector    The connector
File Size86KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

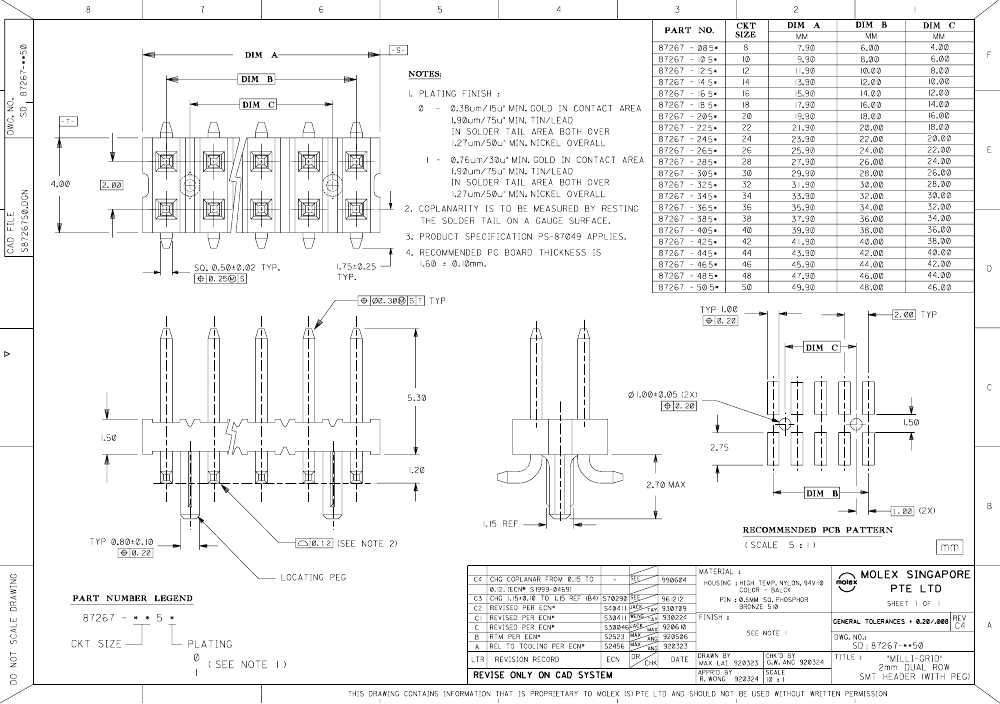

87267-2250 Overview

conn header 22pos 2mm vert smd

87267-2250 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresMILLI-GRID
Board mount optionsLOCATING POSTS
body width0.158 inch
subject depth0.059 inch
body length0.862 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number87267
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.2418 mm
Plating thickness15u inch
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts22
UL Flammability Code94V-0
Base Number Matches1

87267-2250 Related Products

87267-2250
Description conn header 22pos 2mm vert smd
Is it Rohs certified? incompatible
Maker Molex
Reach Compliance Code unknown
ECCN code EAR99
Other features MILLI-GRID
Board mount options LOCATING POSTS
body width 0.158 inch
subject depth 0.059 inch
body length 0.862 inch
Body/casing type RECEPTACLE
Connector type BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED
Contact point gender MALE
Contact material NOT SPECIFIED
contact mode RECTANGULAR
Contact style SQ PIN-SKT
DIN compliance NO
Dielectric withstand voltage 500VAC V
Filter function NO
IEC compliance NO
Insulation resistance 1000000000 Ω
Insulator color BLACK
insulator material NYLON
MIL compliance NO
Manufacturer's serial number 87267
Plug contact pitch 0.079 inch
Match contact row spacing 0.079 inch
Plug information MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO
Installation method STRAIGHT
Installation type BOARD
Number of connectors ONE
PCB row number 2
Number of rows loaded 2
Maximum operating temperature 105 °C
Minimum operating temperature -55 °C
Options GENERAL PURPOSE
PCB contact pattern RECTANGULAR
PCB contact row spacing 4.2418 mm
Plating thickness 15u inch
Rated current (signal) 2 A
Guideline UL, CSA
reliability COMMERCIAL
Terminal pitch 2 mm
Termination type SURFACE MOUNT
Total number of contacts 22
UL Flammability Code 94V-0
Base Number Matches 1
