3591.12.2010.101

Description
RF SMC Connector, 1 Contact(s), Female, Locking, Plug
CategoryThe connector    The connector
File Size37KB,1 Pages
ManufacturerIMS Connector Systems Gmbh
Download Datasheet Parametric View All

3591.12.2010.101 Overview

RF SMC Connector, 1 Contact(s), Female, Locking, Plug

3591.12.2010.101 Parametric

Parameter NameAttribute value
Objectid305229497
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
subject depth0.571 inch
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMC CONNECTOR
Contact point genderFEMALE
Contact resistance5 mΩ
Contact styleCOAX
Durability500 Cycles
Insulation resistance10000000000 Ω
insulator materialPOLYTETRAFLUOROETHYLENE
Installation option 1LOCKING
Installation methodSTRAIGHT
Number of ports1
Maximum operating frequency10 GHz
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Rated current (signal)1.5 A
Terminal length0.079 inch
Total number of contacts1

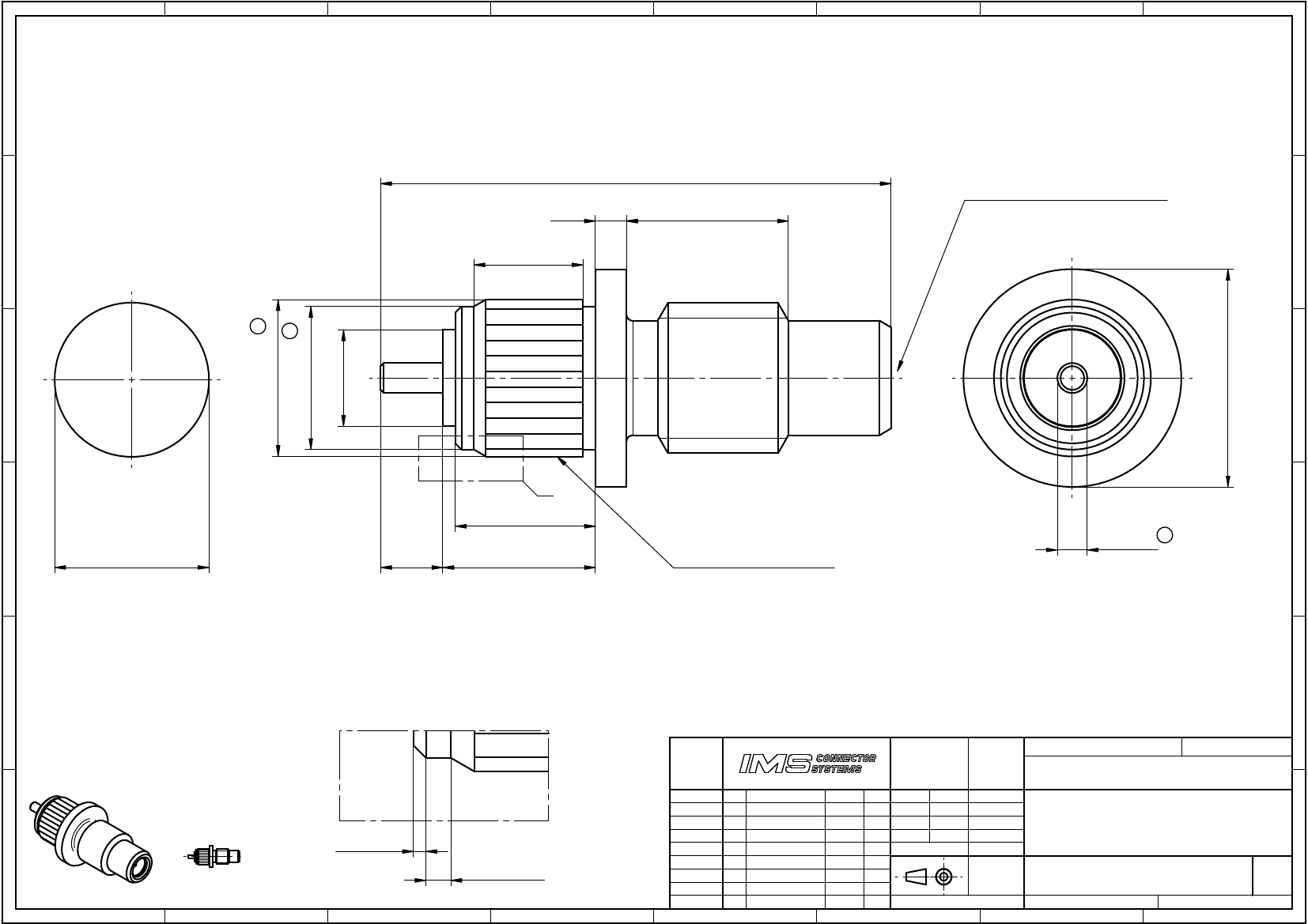

16,5
1
Montagebohrung
Mounting hole
3,5
+0,4
-0,2
Steckbereich nach IEC 169-9
Mating area acc. to IEC 169-9
5,2
b
+0,02
-0,03
+0,05
-0,05
b
5,05
4,6
3,1
X
4,5
4,96
+0,03
-0,03
2
5
Rändel DIN 82 RAA 0,5
Knurl DIN 82 RAA 0,5
1
-0,1
b
Einzelheit / detail X
M/s 20:1
general tolerance
ISO 2768
mH
angle: ± 5°
date
name
Sarfert
scale:
10:1
Assembly instruction:
Stripping dimension:
M/s 3:1
M/s 1:1
0,2 X 45°
0,3
+0,3
-0,1
EC_102_07
077/04
nr.
Ueberarbeitung 15.05.07 Pölz
a Flaechen entfallen 08.03.04 I.S.
rev.
date name
alteration
b
generate 18.01.02
checked
Norm
Chassisstecker
Bulkhead plug
3591.12.2010.10´
Rev.
7
+0,2
-0,2
b
