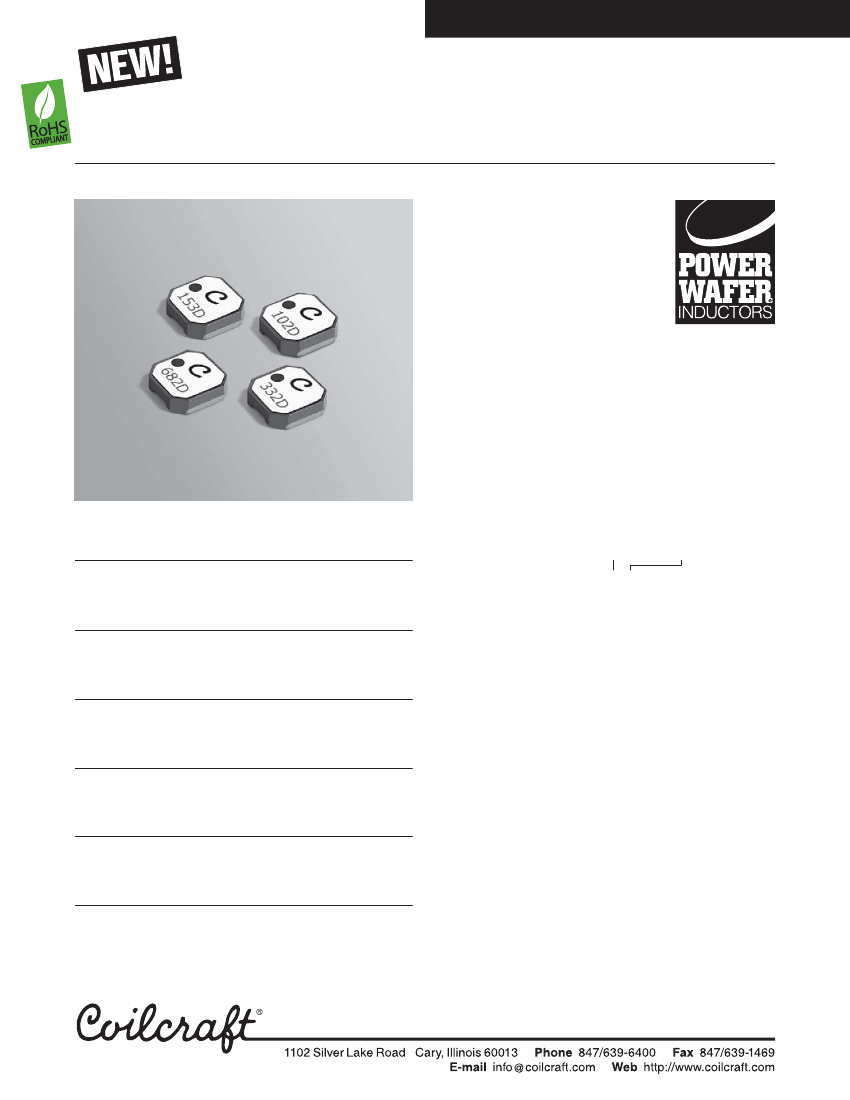

Document 433-1
SMT Power Inductors – LPS4012 Series
This LPS4012 series of low profile
shielded power inductors is de-
signed with PDAs, wireless phones,
digital cameras and other hand-
held products in mind.
These inductors have exceptionally
low DCR and exceptional current
handling capability for parts this size.
They are available in 27 values from 0.33 µH to 3.3 mH.
The specially designed cover completely protects the
windings and provides the best possible surface for
pick and place handling.
Parts shown in bold are stocked for immediate deliv-
ery. Other parts are special order. For free evaluation
samples, contact Coilcraft or order them online at
www.coilcraft.com.
Part number
1
LPS4012-331_L_
LPS4012-681_L_
LPS4012-102_L_
LPS4012-152_L_
LPS4012-222_L_
LPS4012-332_L_
LPS4012-472_L_
LPS4012-562_L_
LPS4012-682_L_
LPS4012-103ML_
LPS4012-153ML_
LPS4012-223ML_
LPS4012-333ML_
LPS4012-104ML_
LPS4012-124ML_
LPS4012-154ML_
LPS4012-224ML_
LPS4012-334ML_
LPS4012-474ML_
LPS4012-564ML_
LPS4012-684ML_
LPS4012-824ML_
LPS4012-105ML_
LPS4012-155ML_
LPS4012-185ML_
LPS4012-225ML_
LPS4012-335ML_
L
2
(µH)
0.33
0.68
1.0
1.5
2.2
3.3
4.7
5.6
6.8
10.0
15.0
22.0
33.0
100
120
150
220
330
470
560
680
820
1000
1500
1800
2200
3300
%
tol
3
30,20
30,20
30,20
30,20
30,20
30,20
30,20
30,20
30,20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
L typ
DCR
SRF
@ 1 MHz max
4
typ
5
Isat
6
(µH)
(Ohms) (MHz) (A)
0.33
0.68
1.0
1.5
2.2
3.3
4.7
5.6
6.8
10.0
15.0
22.0
33.0
100
120
150
—
—
—
—
—
—
—
—
—
—
—
0.023
0.055
0.060
0.070
0.100
0.100
0.175
0.260
0.340
0.350
0.550
0.600
0.825
2.40
3.30
3.50
5.20
7.20
10.0
12.5
13.5
20.0
21.5
35.0
36.0
40.0
76.0
375
220
180
140
115
100
70
60
55
40
30
25
22
12
11.5
10.0
7.0
7.0
4.0
3.5
3.0
3.0
3.0
2.5
2.0
1.0
0.95
5.0
3.5
2.5
2.5
2.1
1.5
1.4
1.3
1.2
0.70
0.60
0.50
0.37
0.22
0.20
0.17
0.16
0.14
0.11
0.10
0.095
0.090
0.090
0.075
0.072
0.067
0.025
1. When ordering, please specify
tolerance
and
packaging
codes:
LPS4012-682MLC
Tolerance: M
= 20%
N
= 30%
(Table shows stock tolerances in bold.)
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (3500 parts per
full reel).
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
Tolerances in bold are stocked for immediate shipment.
DCR measured on a micro-ohmmeter.
SRF measured using Agilent/HP 8753ES or equivalent.
For inductance values
≥10
µH, DC current at which the inductance drops
20% (max) from its value without current. For inductance values <10 µH,
DC current at which the inductance drops 30% (max) from its value
without current.
Storage and operating temperature range
−40°C
to +85°C.
Electrical specifications at 25°C.
2.
3.
4.
5.
6.
7.
8.
Specifications subject to change without notice.
Please check our website for latest information.
Document 433-1
Revised 06/02/06
© Coilcraft, Inc. 2006

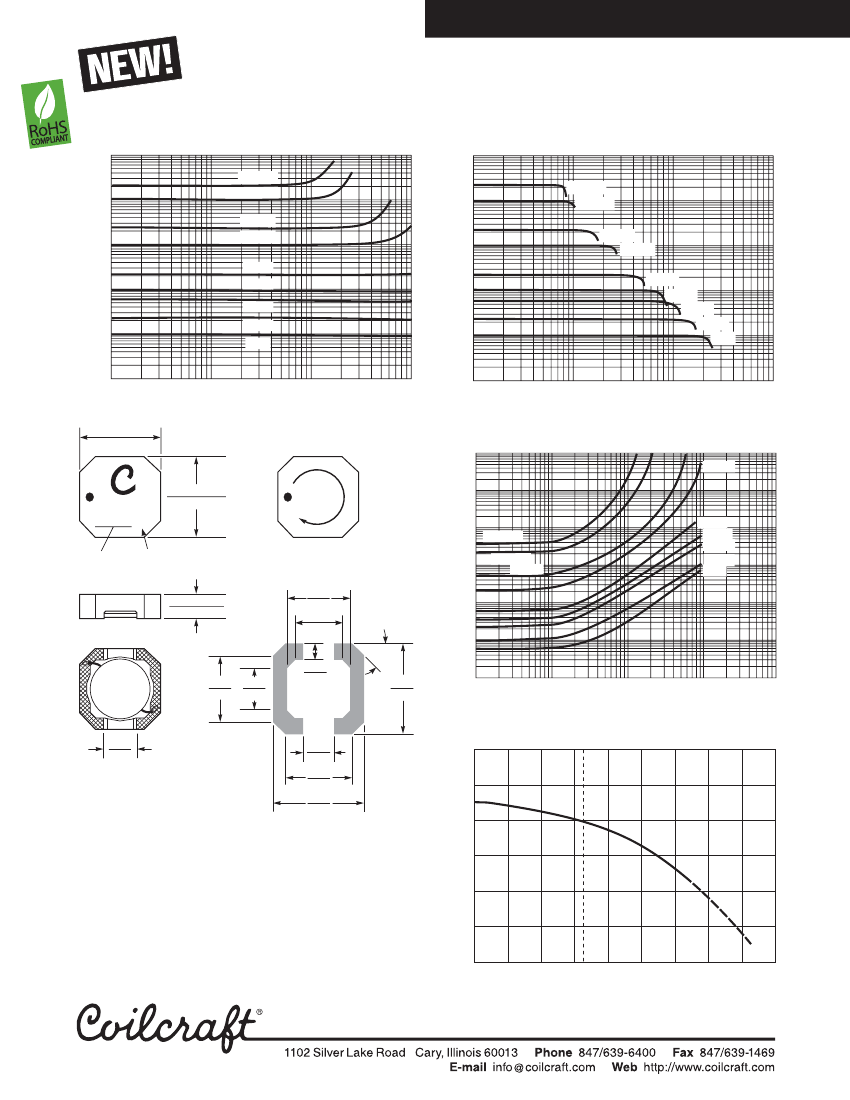

Document 433-2
SMT Power Inductors – LPS4012 Series
Typical L vs Frequency
10000
2200 µH
1000 µH
220 µH
Typical L vs Current
10000
2200 µH
1000
1000
1000 µH
220 µH
100 µH
22 µH
Inductance (µH)
100
100 µH
22 µH
Inductance (µH)
100
10
10 µH
5.6 µH
10
10 µH
5.6 µH
2.2 µH
1 µH
1
2.2 µH
1 µH
1
0.1
0.01
0.1
1
10
0.1
0.01
0.1
1
10
Frequency (MHz)
0.1535 ±0.003
*
3,90 ±0,076
Current (A)
Typical ESR vs Frequency
10000
0.1535 ±0.003
*
3,90 ±0,076
Winding
direction
XXX X
Dash
number
Internal
code
Equivalent Series Resistance (Ohms)
100 µH
1000
100
10
1
0.1
0.01
0.01
0.1
1
10
100
22 µH
10 µH
5.6 µH
2.2 µH
1 µH
2200 µH
1000 µH
220 µH
Recommended
Land Pattern
0.043 ±0.004
1,10 ±0,10
0.118
3,00
0.090
2,30
45°
typ
0.173
4,40
0.123
3,124
0.090
2,30
0.028
0,70
Frequency (MHz)
0.060
1,52
Change in rated current (%)
*
Dimensions are of the case not
including the termination. For maximum
overall dimensions including the
termination, add 0.005 in / 0,13 mm.
0.060
1,50
0.123
3,124
0.173
4,40
Typical Isat Derating
+20
+10
0
-10
-20
-30
-40
-40 -20
0
20
40
60
80
100
120 140
Terminations:
Silver-palladium-platinum-glass frit
Tape and reel:
1000/7″ reel; 3500/13″ reel 12 mm tape width
For packaging data see Tape and Reel Specifications section.
Ambient temperature (°C)
Specifications subject to change without notice.
Please check our website for latest information.
25°C
Document 433-2
Revised 03/09/06
© Coilcraft, Inc. 2006
