CDP65C51E4X datasheet, PDF - EEWORLD Datasheet

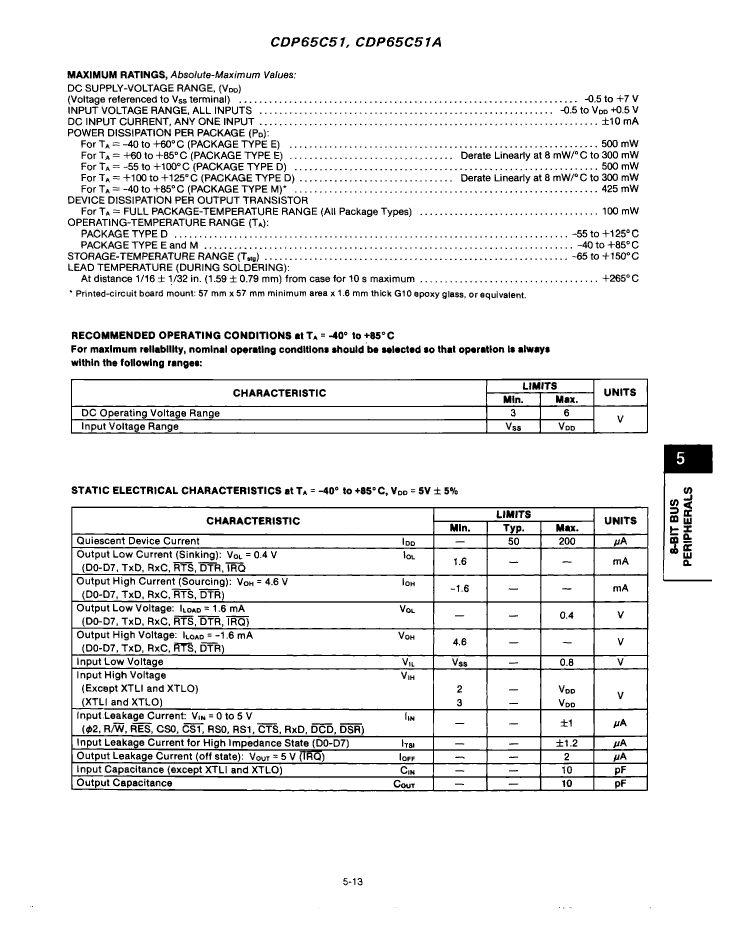

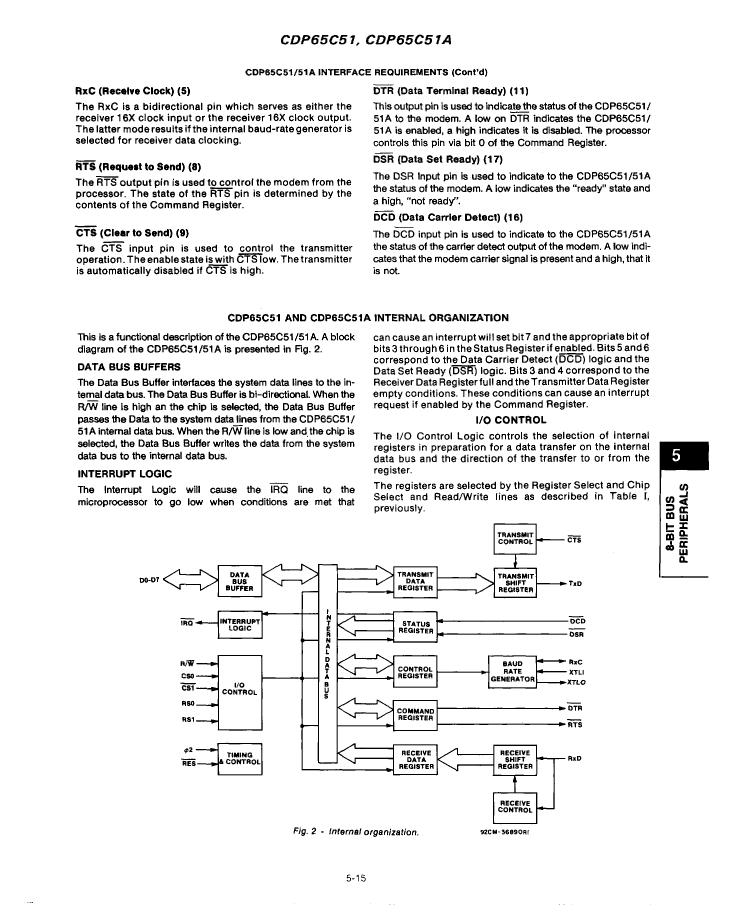

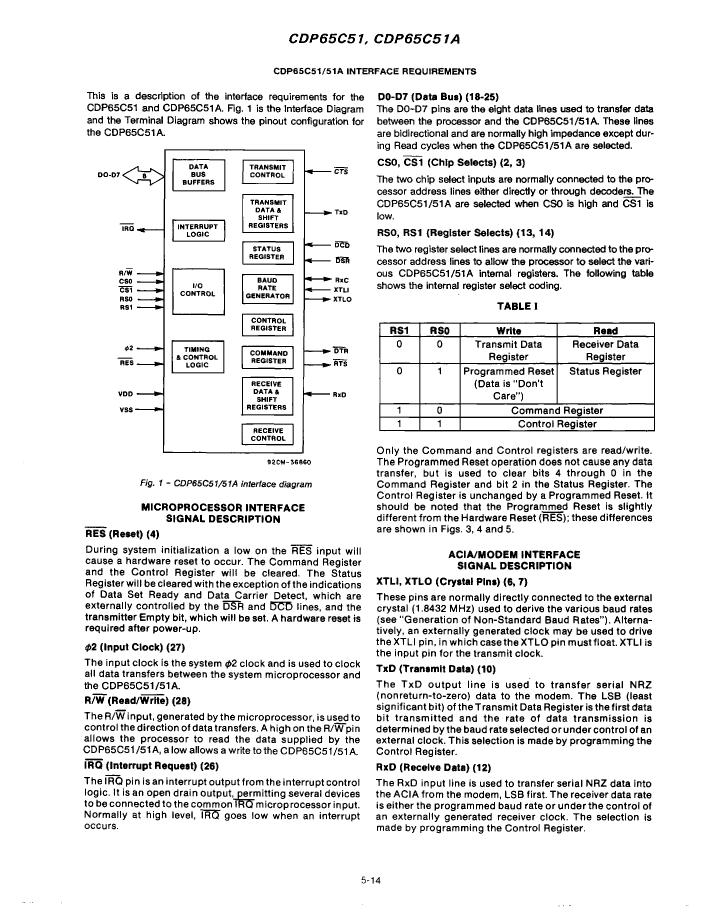

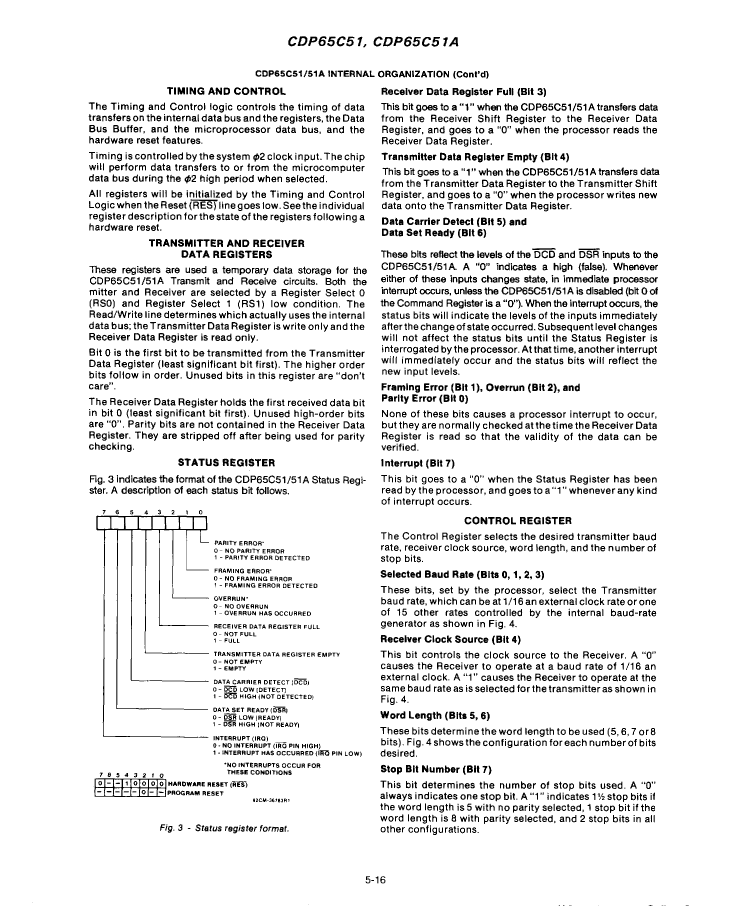

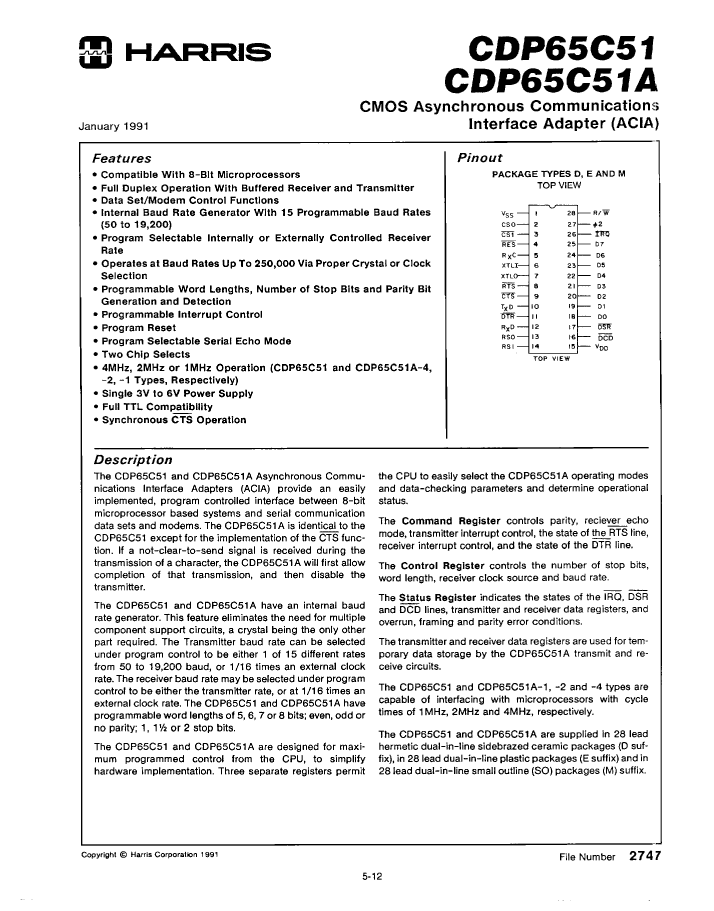

CDP65C51E4X: DescriptionSerial I/O Controller, 1 Channel(s), CMOS, PDIP28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size651KB，18 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

CDP65C51E4X Overview

Serial I/O Controller, 1 Channel(s), CMOS, PDIP28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
Address bus width	2
boundary scan	NO
maximum clock frequency	4 MHz
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
External data bus width	8
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	28
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	0
Maximum slew rate	0.2 mA
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1
