FP series
Fully illuminated pushbutton switches - bushing Ø 24 mm - momentary or latching

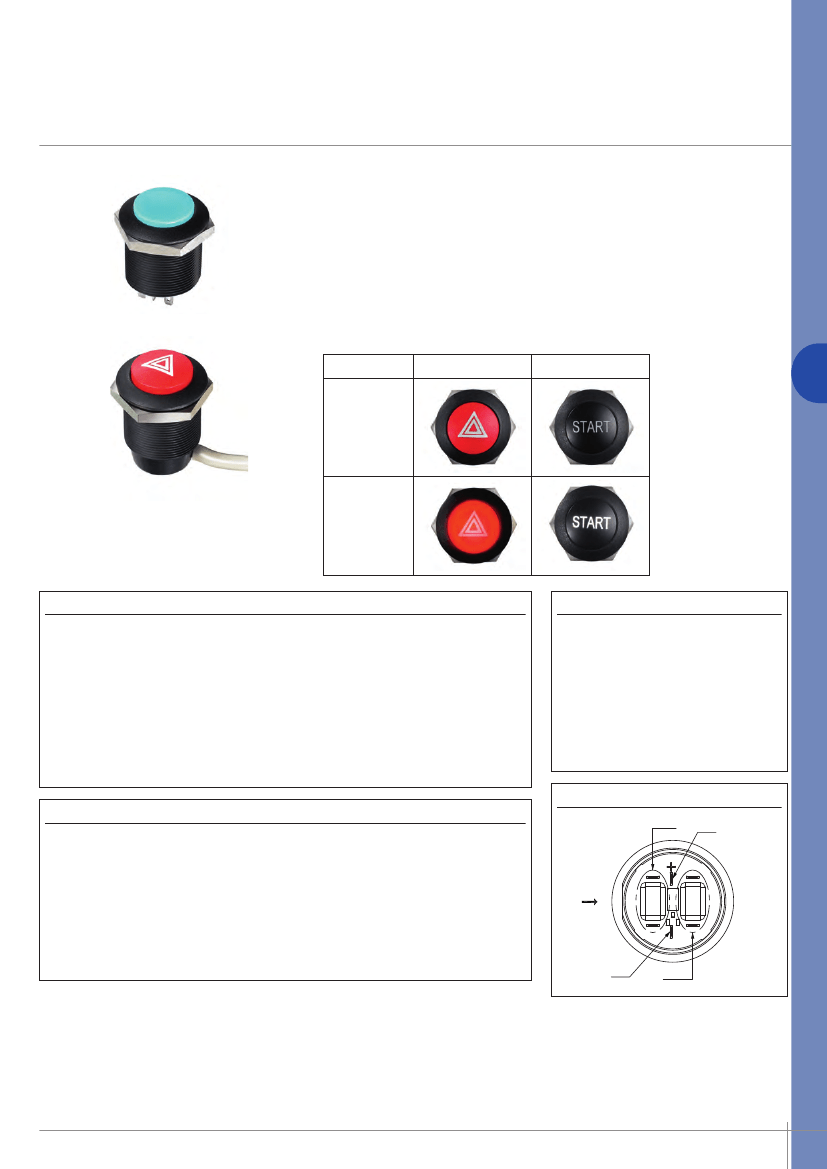

Distinctive features and specifications
UG1410A
K
Full actuator or symbol illumination
K
Suited for integrated designs
K
Large but lightweight
K
Sealed to IP69K
K
Pad printed or laser etched symbols
Pad printing
Laser
B2
Non-illuminated
Illuminated
ELECTRICAL SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load :
- silver contacts (code 2) : 4A 12VDC
- gold plated contacts (code 4) : 200mA 12VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1 GΩ min. at 500VDC
• Dielectric strength : 1.000 Vrms 50 Hz min.
• Electrical life at full load :
- Momentary models : 1 million cycles (gold plated contacts)
400.000 cycles (silver contacts)
- Latching models : 200.000 cycles
GENERAL SPECIFICATIONS
• Case : PA46
• Actuator : PA12
• Bushing/ bezel : PA66
• Contacts : silver (code 2)
or silver, gold plated (code 4)
• Cable : length 300 mm, section
depending on switch model
• Terminal seal : epoxy or
overmolding
WIRING DIAGRAM
©
Flat
• Sealing : IP69K according to DIN 40050-9
• Panel thickness : 1(.039) to 18 mm (.708) max.
• Total travel : 2,5 mm
± 0,5 mm
• Typical operating force : 8N
± 2N
• Low level or mechanical life :
- Momentary models : 1 million cycles
- Latching models : 200.000 cycles
• Torque : 3 Nm max. applied to nut
• Operating temperature : -40°C to +75°C
POLE 2
LED
+
LED
-
POLE 1
The company reserves the right to change specifications without notice.
APEM
www.apem.com
B2-145
FP series
Fully illuminated pushbutton switches - bushing Ø 24 mm - momentary or latching
Overview
FP
SERIES
Actuator
Model
P
R
F
Round, flat
Round, curved
Round, curved,
flush
New!
Electrical function
1
3
OFF - ON
Normally open
(NO)
1
2
3
Terminals
Solder lugs
Straight cable
Right angle
cable, length
300 mm
A
Threaded bushing,
dia. 24 mm
LED control and No of poles
B2
A
B
C
D
E
Non-illuminated, 1 pole
Non-illuminated, 2 poles
Independent, 1 pole
Independent, 2 poles
Independent, 1 pole, dimming LED
Contact mat.
2
4
Silver
Silver, gold
plated
1
2
3
4
5
6
7
9
Actuator colour
Blue
Black
Green
Grey
Yellow
Red
White/natural
Orange
1
2
3
4
5
6
7
Bezel colour
Blue
Black
Green
Grey
Yellow
Red
White/natural
X
A
B
C
D
E
F
G
LED colour
Non-illum.
Blue
Green
Red
Yellow
White
Red/green
Red/blue
0
1
2
3
LED resistor
No resistor
supplied
12V resistor
24V resistor
48V resistor
Symbols
See end of series
Marking
X
1
2
No marking
Pad printing
Laser
ABOUT THIS SERIES
On the following pages, you will find successively :
model structure of switches and options in the same order as in above chart
Dimensions :
first dimensions are in mm while inches are shown as bracketed numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Mounting accessories
: Standard hardware supplied : 1 hex nut and 1 O-Ring
Packaging unit
: solder lug versions : 20 pieces - cable versions : 1 piece
B2-146
www.apem.com
APEM
FP series
Fully illuminated pushbutton switches - bushing Ø 24 mm - momentary or latching

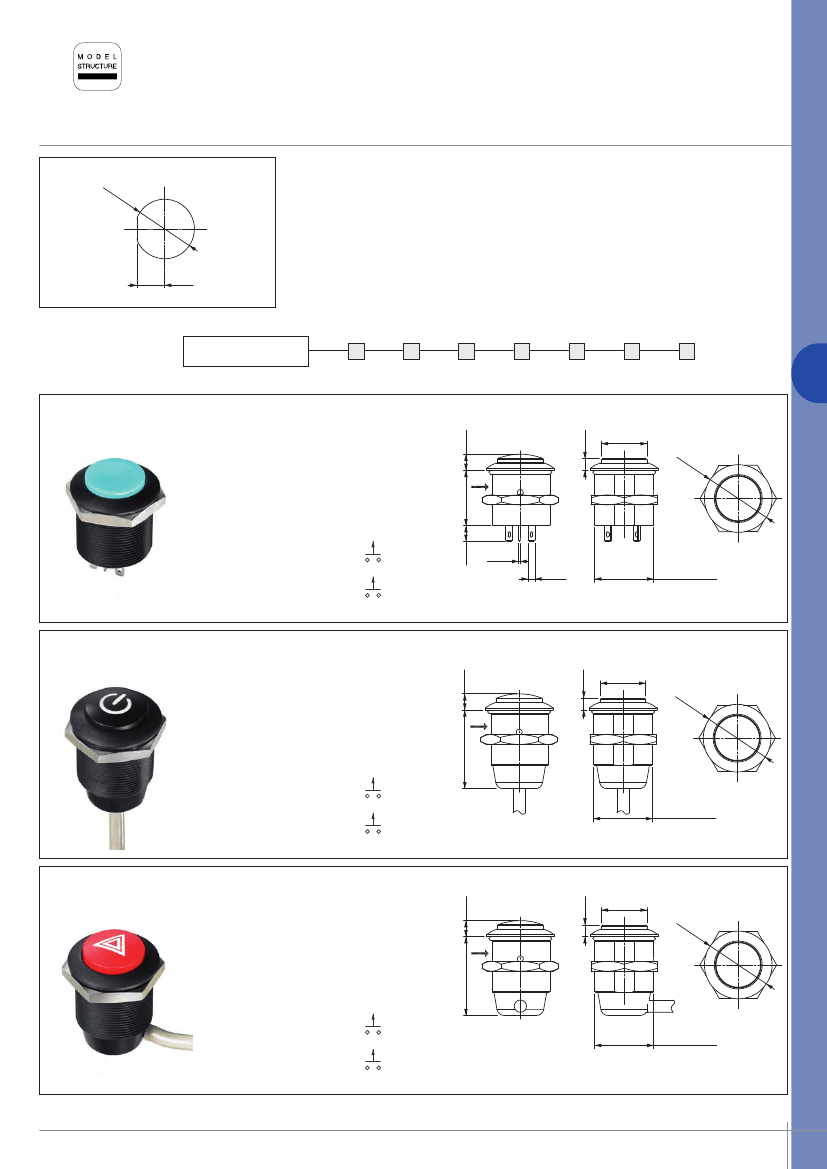

• Three terminal types
• Curved or flat actuator
Ø
(.9 24
53 .20
DI
A)
11.30
(.445)
To order a product, replace • with one of the codes selected under “LED control
and number of poles” on next page, then add the desired options.
MODEL
STRUCTURE
B2
©
Flat
6.60
(.260)
4.80
(.189)
Ø18.50
(.728DIA)
(1 Ø27
.08 .5
3D 0
IA
)
Solder lug terminals
LATCHING
Curved actuator
FPAR1•1
Flat actuator
FPAP1•1
MOMENTARY
(
NO
)
Curved actuator
FPAR3•1
Flat actuator
FPAP3•1
OFF
OFF
-
ON
ON
22.50
(.886)
6.30
(.248)
0.50
(.020)
2.80
(.110)
Ø24.00x1.00 SI
(.944DIAx1.00 IS)
Straight cable terminals
LATCHING
©
Flat
6.60
(.260)
4.80
(.189)
Ø18.50
(.728DIA)
(1 Ø27
.08 .5
3D 0
IA
)
OFF
ON
MOMENTARY
(
NO
)
Curved actuator
FPAR3•2
Flat actuator
FPAP3•2
32.00 -1.00/0
(1.260 -.039/0)
Curved actuator
FPAR1•2
Flat actuator
FPAP1•2
OFF
-
ON
Ø24.00x1.00 SI
(.944DIAx1.00 IS)
Right angle cable terminals
LATCHING
©
Flat
6.60
(.260)
4.80
(.189)
Ø18.50
(.728DIA)
(1 Ø27
.08 .5
3D 0
IA
)
OFF
ON
MOMENTARY
(
NO
)
Curved actuator
FPAR3•3
Flat actuator
FPAP3•3
32.00 -1.00/0
(1.260 -.039/0)
Curved actuator
FPAR1•3
Flat actuator
FPAP1•3
OFF
-
ON
Ø24.00x1.00 SI
(.944DIAx1.00 IS)
APEM
www.apem.com
B2-147
FP series
Fully illuminated pushbutton switches - bushing Ø 24 mm - momentary or latching
Options
LED RESISTOR
0
1
2
3
No resistor supplied
12V resistor
24V resistor
48V resistor
MARKING
B2
X
1
2
No marking
Pad printing
Laser
SYMBOLS
XX
No symbol
Ø
(.6 16
30 .00
DI
A)
Available symbols
See end of K-range, section D.
Marking colour
White marking for illuminated actuators (laser etching) and non-illuminated
black actuators (pad printing). Black marking for non-illuminated colour
actuators (pad printing). Other : on request.
Marking area
The symbol will be included in the hatched area.
APEM
www.apem.com
B2-149
