54F251ALL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F251ALL

54F251ALL: DescriptionMultiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CQCC20,; Categorylogic logic; File Size140KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F251ALL Overview

Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CQCC20,

54F251ALL Parametric

Parameter Name	Attribute value
package instruction	QCCN,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	22 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

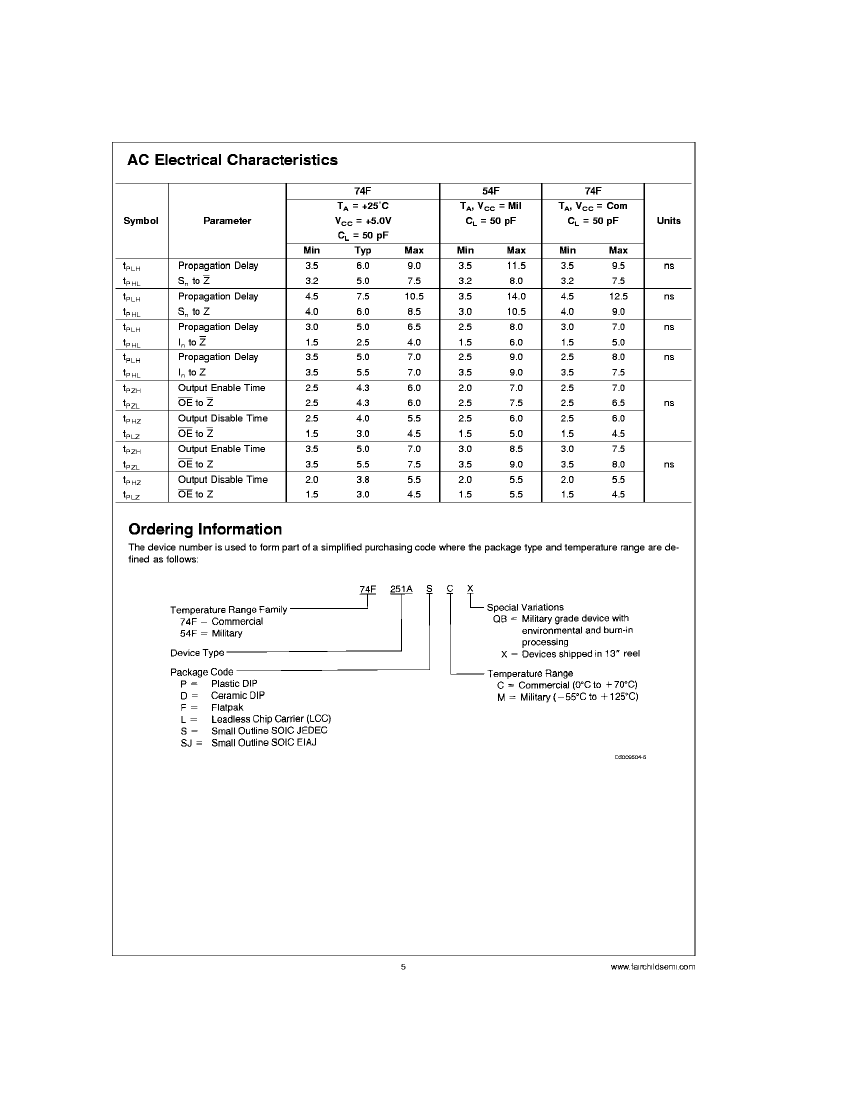

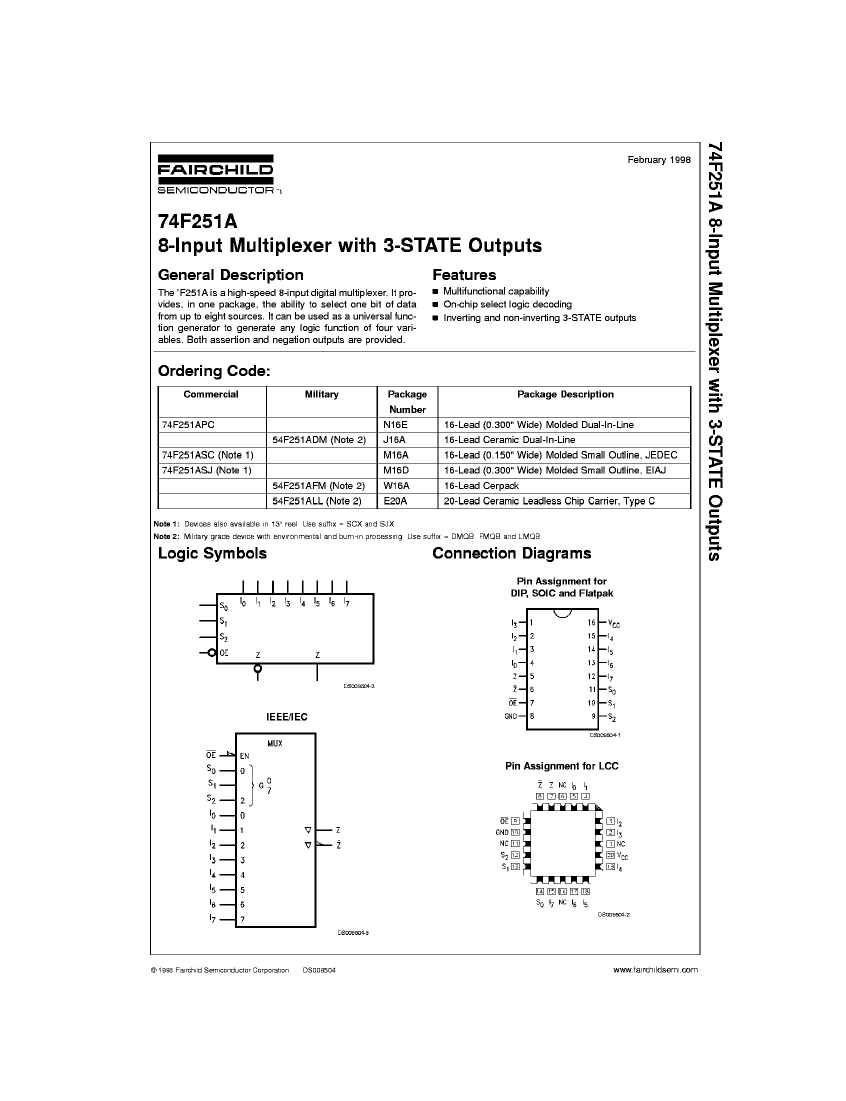

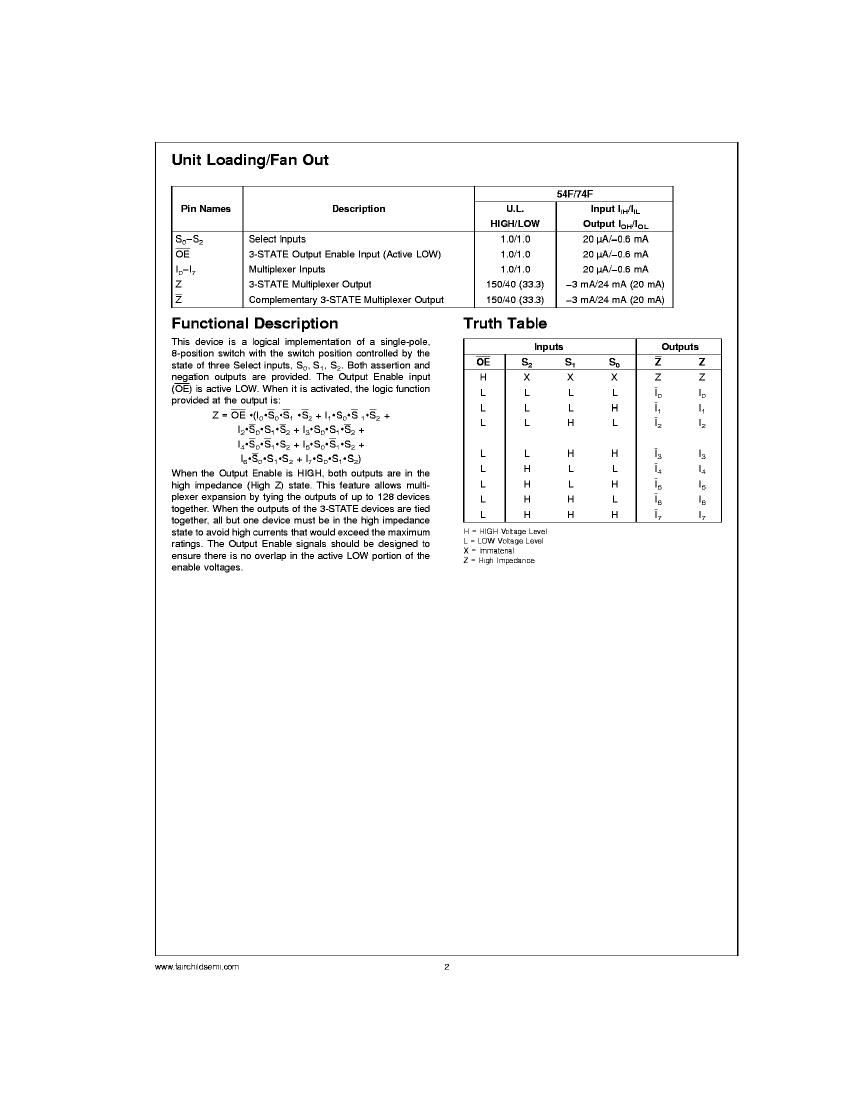

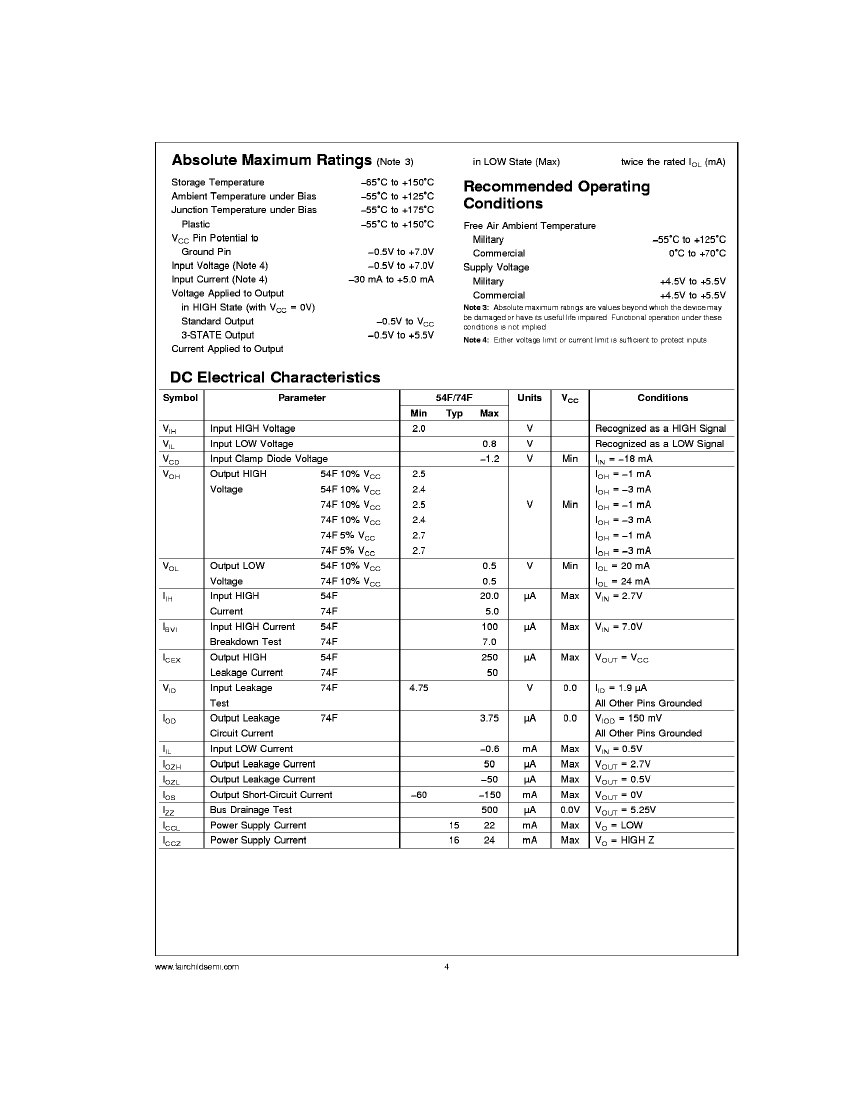

Preview

Download Datasheet

View All

54F251ALL Related Products

	54F251ALL	54F251ALLQB	54F251ADMQB	54F251AFM	54F251AFMQB	54F251ADM
Description	Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CQCC20,	Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CQCC20,	Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16	Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDFP16, CERPACK-16	Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDFP16, CERPACK-16	Multiplexer, F/FAST Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16
package instruction	QCCN,	QCCN,	CERAMIC, DIP-16	DFP,	DFP, FL16,.3	CERAMIC, DIP-16
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	compliant
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T16	R-GDFP-F16	R-GDFP-F16	R-GDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1	1	1	1	1
Number of entries	8	8	8	8	8	8
Output times	1	1	1	1	1	1
Number of terminals	20	20	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCN	DIP	DFP	DFP	DIP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	FLATPACK	FLATPACK	IN-LINE
Maximum supply current (ICC)	22 mA	22 mA	22 mA	22 mA	22 mA	22 mA
propagation delay (tpd)	9 ns	9 ns	9 ns	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
Parts packaging code	-	-	DIP	DFP	DFP	DIP
Contacts	-	-	16	16	16	16
length	-	-	19.43 mm	9.6645 mm	9.6645 mm	19.43 mm
Maximum seat height	-	-	5.08 mm	2.032 mm	2.032 mm	5.08 mm
Terminal pitch	-	-	2.54 mm	1.27 mm	1.27 mm	2.54 mm
width	-	-	7.62 mm	6.604 mm	6.604 mm	7.62 mm
