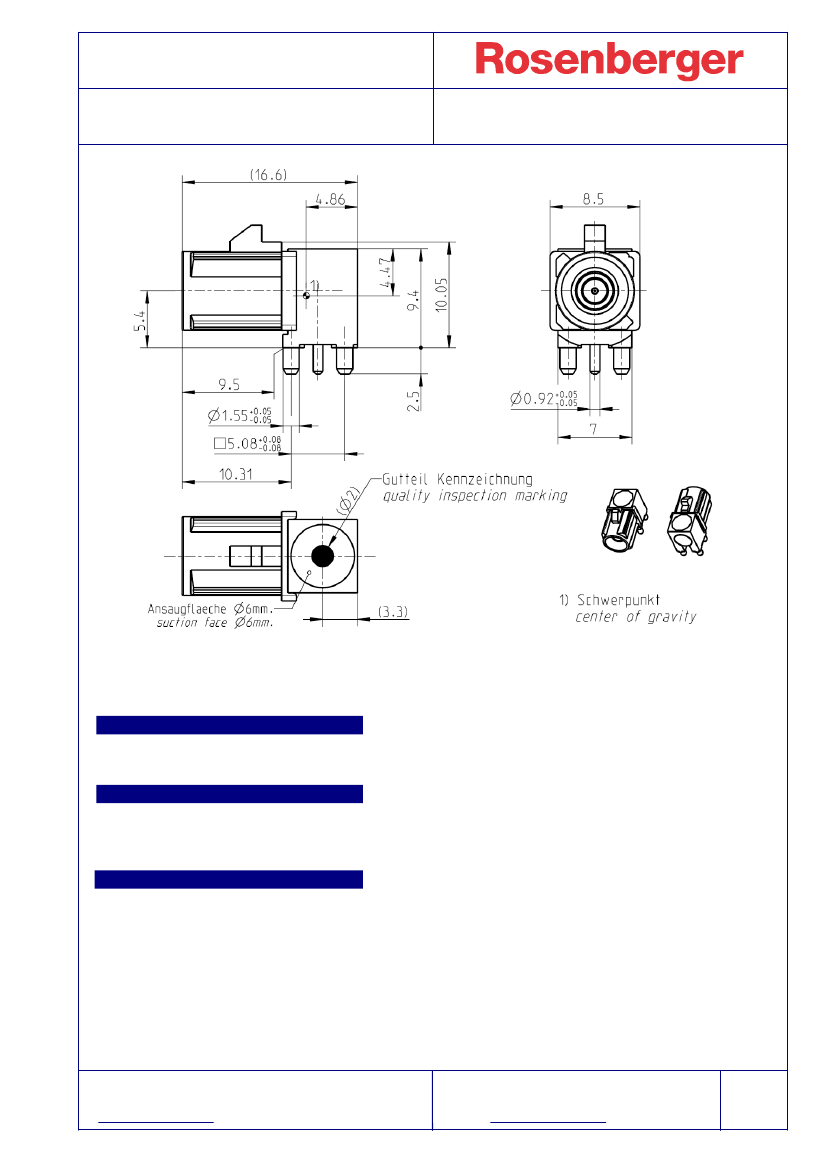

TECHNICAL DATA SHEET
FAKRA - HF
RIGHT ANGLE PLUG
PCB
59S20X-400L5-Y
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification
Interface
According to
DIN 72594-1
Documents
PCB layout
Tape & reel packaging
MB 190
VG120.27500
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Cover
Housing
Material
Brass
Brass
PA 6.6 T
Alpaca
PA6T/66
Plating
AuroDur®, gold plated
Gold, min. 0.15 µm, over chemical nickel
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/3
TECHNICAL DATA SHEET
FAKRA - HF
Electrical data
Impedance
Frequency
Return loss measured on 50Ω footprint
50
Ω
DC to 6 GHz
≥
24dB (DC to 2,4GHz)
≥
18dB (2,4GHz to 4GHz)
≥
16dB (4GHz to 6GHz)
≤
0.1 x
f(GHz)
x dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
5 mΩ
700 V rms
335 V rms
≤
1 A DC
RIGHT ANGLE PLUG
PCB
59S20X-400L5-Y
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
- Connector only, VSWR in application depends decisive on PCB layout -
Mechanical data
Mating cycles
Engagement force
Disengagement force
Retention force latch
Coding efficiency
≥
≤
≥
≥
≥
25
25 N
2N
110 N
40 N
- Mechanical data are valid 48h from the end of the soldering process -
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
Soldering profile
2002/95/EC (RoHS)
-40°C to +105°C
DIN 72594-2 clause 6.2
DIN 72594-2 clause 6.3
DIN 72594-2 clause 6.1
DIN 72594-2 clause 6.4
acc. IEC 60068-2-58 Group 3&4
compliant
Tooling
N/A
Packing
Standard
Weight
50 pcs in blister tray; 150 pcs in blister tray; 275 pcs in tape&reel
3.88 g/pce
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/3
TECHNICAL DATA SHEET
FAKRA - HF

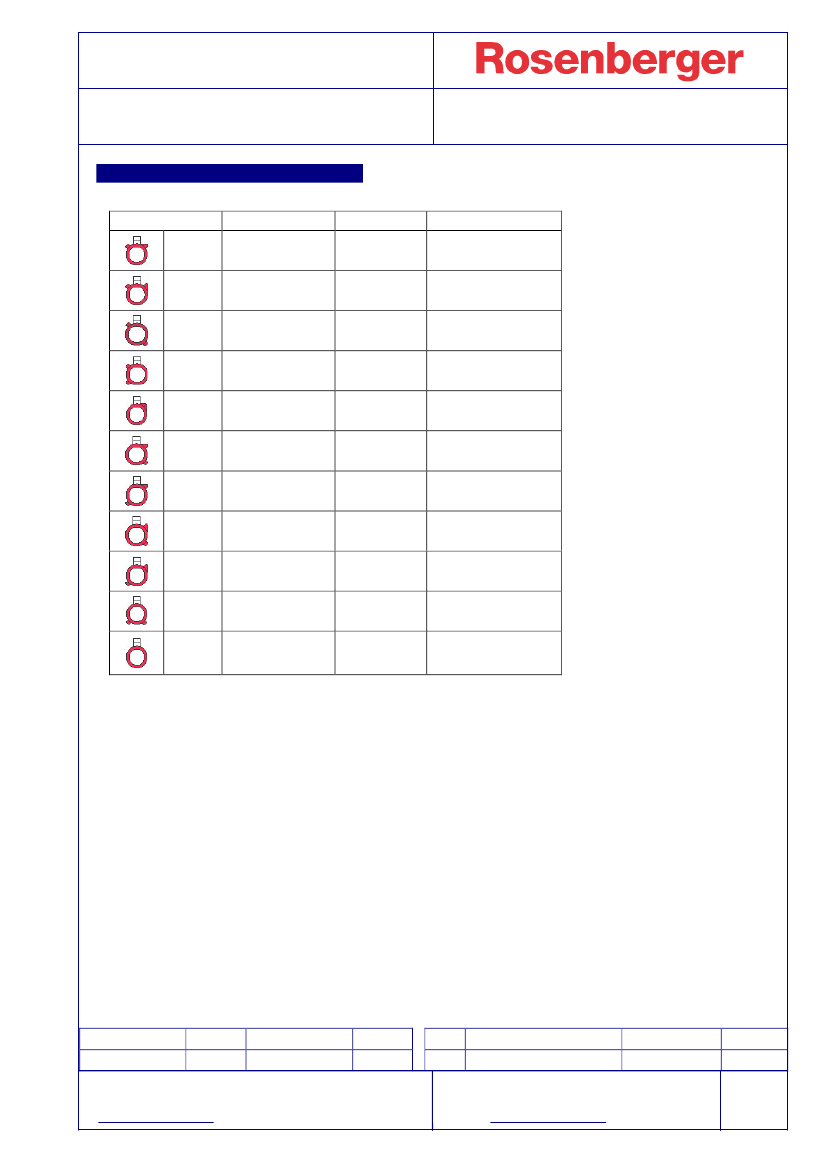

Coding
Coding
A
B
C
D
E
F
G
H
I
K
Z
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
waterblue
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 5021
Part-Number
59S20X-400L5_A
59S20X-400L5_B
59S20X-400L5_C
59S20X-400L5_D
59S20X-400L5_E
59S20X-400L5_F
59S20X-400L5_G
59S20X-400L5_H
59S20X-400L5_I
59S20X-400L5_K
59S20X-400L5_Z
RIGHT ANGLE PLUG
PCB
59S20X-400L5-Y
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
10/04/08
Approved
Thomas Höfling
Date
29/08/11
Rev.
i00
Engineering change number
11-0676
Name
Ingo Sambale
Date
29/08/11
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
3/3
