2331-5483: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Locking; CategoryThe connector The connector; File Size176KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

2331-5483 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Locking

2331-5483 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.437 inch
subject depth	0.457 inch
body length	2.165 inch
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
Contact style	RND PIN-SKT
DIN compliance	YES
Durability	500 Cycles
Manufacturer's serial number	2331
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

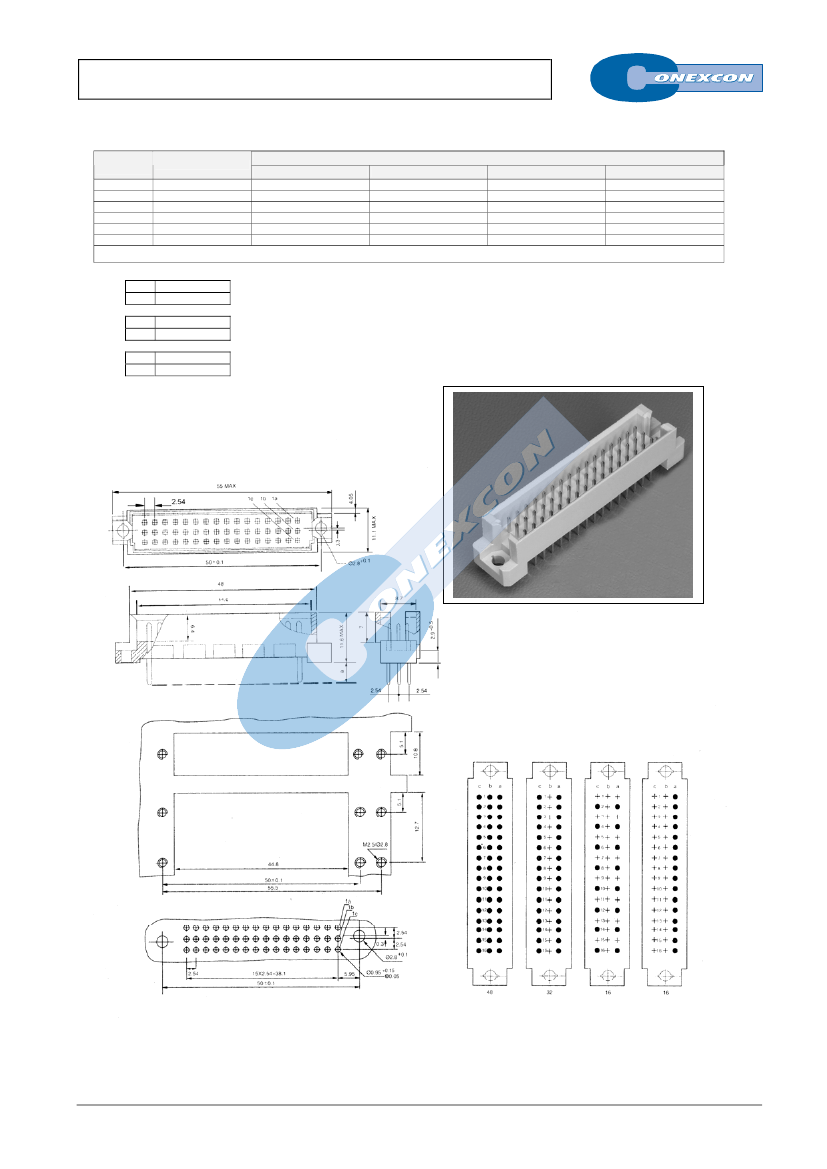

DIN 41612 EUROCARD CONNECTOR

2331 SERIES.

Vertical Male Type Half R Connectors.

Circuit Size

16

24

32

48

Configuration

a

a+c

a + b +c

a+b

a+c

a + b +c

Part Number

PCB Solder 4 mm

2331 –

T061

2331 –

T161

2331 –

T241

2331 –

T021

2331 –

T321

2331 –

T481

Wrap post tail length 13 mm Wrap post tail length 17 mm

2331 –

T063

2331 –

T067

2331 –

T163

2331 –

T167

2331 –

T243

2331 –

T247

2331 –

T023

2331 –

T027

2331 –

T323

2331 –

T327

2331 –

T483

2331 –

T487

-

2331 –

T068

2331 –

T168

2331 –

T248

2331 –

T028

2331 –

T328

2331 –

T488

Available with press-in contacts (Consult with the Sales Office)

a

4

a

13

a

17

0.3 x 0.63

PCB Solder

0.6 x 0.69

Wrap post

0.6 x 0.69

Wrap post

T = Plating and class connector



T =

3.

0.20 µ” over 1.27 µ” Ni. 200 cycles class 2B

T =

4.

0.38 µ” over 1.27 µ” Ni. 400 cycles class 2

T =

5.

0.76 µ” over 1.27 µ” Ni. 500 cycles class 1

CONTACT ARRANGEMENT

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

Q-XX
