Part Number

Search

533606-7

Description
78 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
CategoryThe connector    The connector
File Size36KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com

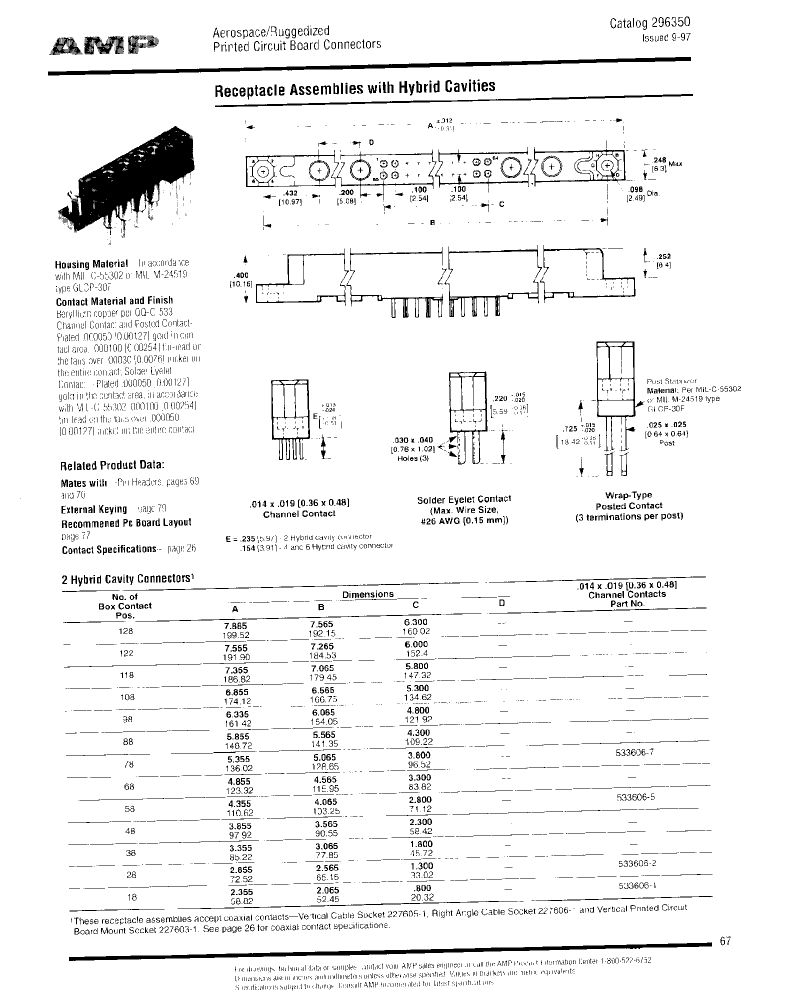

Download Datasheet Parametric Compare View All

533606-7 Overview

78 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

533606-7 Parametric

Parameter NameAttribute value
Objectid1431066667
Reach Compliance Codeunknown
Other features2 COAXIAL CONTACTS AVAILABLE
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedTIN LEAD (100) OVER NICKEL
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number533606
Plug information533607-2
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts78

533606-7 Related Products

533606-7 533606-2 533606-1
Description 78 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE 28 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE 18 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code unknown unknown unknown
Other features 2 COAXIAL CONTACTS AVAILABLE 2 COAXIAL CONTACTS AVAILABLE 2 COAXIAL CONTACTS AVAILABLE
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL
Contact completed and terminated TIN LEAD (100) OVER NICKEL TIN LEAD (100) OVER NICKEL TIN LEAD (100) OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
JESD-609 code e0 e0 e0
MIL compliance NO NO NO
Manufacturer's serial number 533606 533606 533606
Plug information 533607-2 533607-3 533607-1
Mixed contacts NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of rows loaded 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 78 28 18
Maker - TE Connectivity TE Connectivity
Base Number Matches - 1 1
