Y2123330R000C9R datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y2123330R000C9R

Y2123330R000C9R: DescriptionFixed Resistor, Metal Foil, 1.5W, 330ohm, 300V, 0.25% +/-Tol, -.2,.2ppm/Cel, 4015,; CategoryPassive components The resistor; File Size1MB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y2123330R000C9R Overview

Fixed Resistor, Metal Foil, 1.5W, 330ohm, 300V, 0.25% +/-Tol, -.2,.2ppm/Cel, 4015,

Y2123330R000C9R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	859850321
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
structure	Rectangular
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	15.62 mm
Package length	10.16 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.81 mm
method of packing	TR
Rated power dissipation(P)	1.5 W
Guideline	MIL-PRF-39009
resistance	330 Ω
Resistor type	FIXED RESISTOR
series	VPR221SZ
size code	4015
technology	METAL FOIL
Temperature Coefficient	0.2 ppm/°C
Tolerance	0.25%
Operating Voltage	300 V

Preview

Download Datasheet

View All

VPR221SZ (Z-Foil)

Vishay Foil Resistors

Ultra High Precision Bulk Metal

Z-Foil Surface Mount Power

Resistor in TO-220 Configuration with TCR of ± 0.05 ppm/°C,

PCR of 4 ppm/W and Load Life Stability of ± 0.005 % (50 ppm)

FEATURES



Temperature coefficient of resistance (TCR):



INTRODUCTION

The Z-Foil technology provides a significant reduction of the

resistive component’s sensitivity to ambient temperature

variations (TCR) and applied power changes (PCR).

Model VPR221SZ is a 4 lead kelvin connected surface

mount device which provides high rated power, excellent

load life stability, low temperature coefficient (TCR) and low

power coefficient (PCR) - all in one resistor. ± 0.05 ppm/°C

absolute TCR removes error due to temperature gradients.

By taking advantage of the overall stability and reliability of

Bulk Metal

Z-Foil resistors, designers can significantly

reduce circuit errors and greatly improve overall circuit

performances.

Our application engineering department is available to

advise and make recommendations. For non-standard

technical requirements and special applications, please



± 0.05 ppm/°C typical (0 °C to + 60 °C)

± 0.2 ppm/°C typical (- 55 °C to + 125 °C,

+ 25 °C ref.) (see table 1)

Tolerance: to ± 0.01 %

Power coefficient “R due to self heating”: 4 ppm/W typical

Rated power: 8 W chassis mounted (MIL-PRF-39009)

Load life stability: to ± 0.005 % at 25 °C for 2000 h, at 1.5 W

Resistance range: 0.5



to 500



Foil resistors are not restricted to standard values; specific

“as requested” values can be supplied at no extra cost or

delivery (e.g. 100R2345 vs. 100R)

Electrostatic discharge (ESD) up to 25 000 V

Short time overload



0.001 % (10 ppm)

Non-inductive, non-capacitive design

Rise time: 1 ns effectively no ringing

Current noise: 0.010 µV

RMS

/V of applied voltage (< - 40 dB)

Thermal EMF: 0.05 µV/°C typical

Voltage coefficient < 0.1 ppm/V

Non-inductive: < 0.08 µH

Non hot spot design

Thermal stabilization time < 1 s (nominal value achieved

within 10 ppm of steady state value)

Terminal finish: lead (Pb)-free or tin/lead alloy

Compliant to RoHS directive 2002/95/EC

Prototype quantities available in just 5 working days

or sooner. For more information, please contact

foil@vishaypg.com

For better performances please contact us

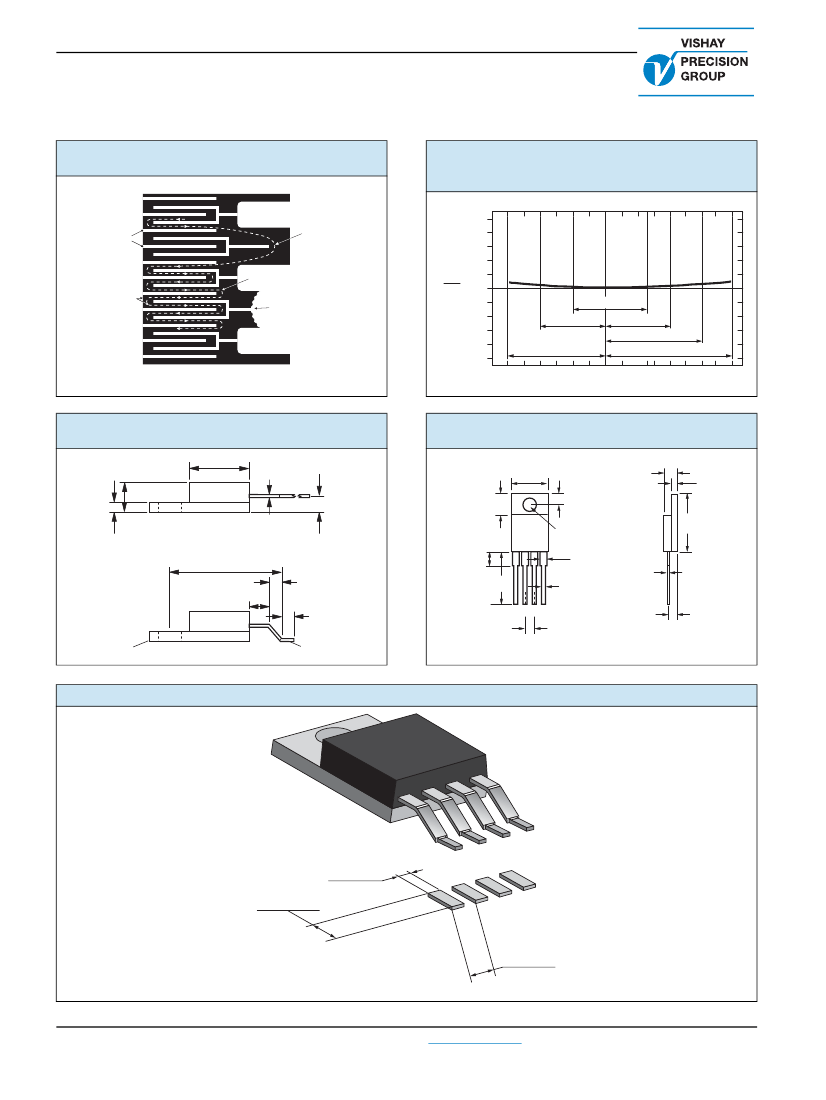

FIGURE 1 - SCHEMATICS

TABLE 1 - TCR AND TOLERANCE

RESISTANCE

RANGE ()

0.5 to < 1

1 to < 10

10 to 500

Notes

(1)

TIGHTEST

RESISTANCE

TOLERANCE

± 0.05 %

± 0.02 %

± 0.01 %

TYPICAL TCR AND

MAX. SPREAD

(1)

± 0.2 ppm/°C ± 2.8 ppm/°C

FIGURE 2 - POWER DERATING CURVE

- 55 °C

100

Percent of Rated Power

± 0.2 ppm/°C ± 2.3 ppm/°C

± 0.2 ppm/°C ± 1.8 ppm/°C

MIL-range (- 55 °C to + 125 °C, + 25 °C ref.)

Contact applications engineering for other available values

- 75

- 50

- 25

100

125

150

•

Ambient Temperature (°C)

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 63127

Revision: 16-Aug-12

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com
