PART NUMBER
832-00263
832-00263F
PART DESCRIPTION
Standard version, with Lead(Pb)
RoHS compliant per EU Directive 2002/95/EC(without exemption of solder content)
UNLESS OTHERWISE
SPECIFIED, DIMENSIONS
ARE IN INCH/mm.
TITLE
COMMON MODE CHOKE,
2 LINE X 1, SMD, 8 PIN
APPROVALS
DRAWN BY
DATE
07/19/07
07/19/07
07/19/07
07/19/07
SCALE
WARNING !
E & E Magnetic Products Ltd.
DRAWING NO./MODEL
REV
C. LAU
PROJ. ENG
ALL SHEETS OF THIS DOCUMENT ARE
CONTROLLED DOCUMENTATION AND
TOLERANCE ARE:
ARE NOT TO BE RELEASED OUTSIDE
INCH
mm
ANGLE
OF E&E OR ITS SUB-CONTRACTORS
.XXX ± .005 .XX ± .13 X.X ± 0.3
WITHOUTAUTHORIZATION.
.XX ± .02
.X ± .5
X. ± 1
For
C. LAU
APPROVED BY
V. TSUI
Q.A.
832-00263
PAGE
OF
06
1
4
C.M. TSUI
DO NOT SCALE
.374±.010
9.50±0.25
8
.394±.010 7
10.00±0.25 6
5
1
2
3
4
5
1
2
3
4
8
7
6
5
REFERENCE OR
GAUGE PLANE
.230 Max
5.84
0-8°
.015 Min
0.38
.024±.004
0.60±0.10
.005-.015
0.13-0.38
.488±.010
12.40±0.25
.295±.010
7.50±0.25
1. Dimensions are specified in
inches
with higher precedence in mm.
mm
2. Unless otherwise specified, all tolerances are ±
0.25
.
3. Coplanarity:
.004
max.
0.10
4. "(DATE)" includes at least manufacturing date code(in YYWW format).
5. For RoHS compliant version, 832-00263F, the part will be marked with “832-00263F”,
instead of “832-00263”.
.010

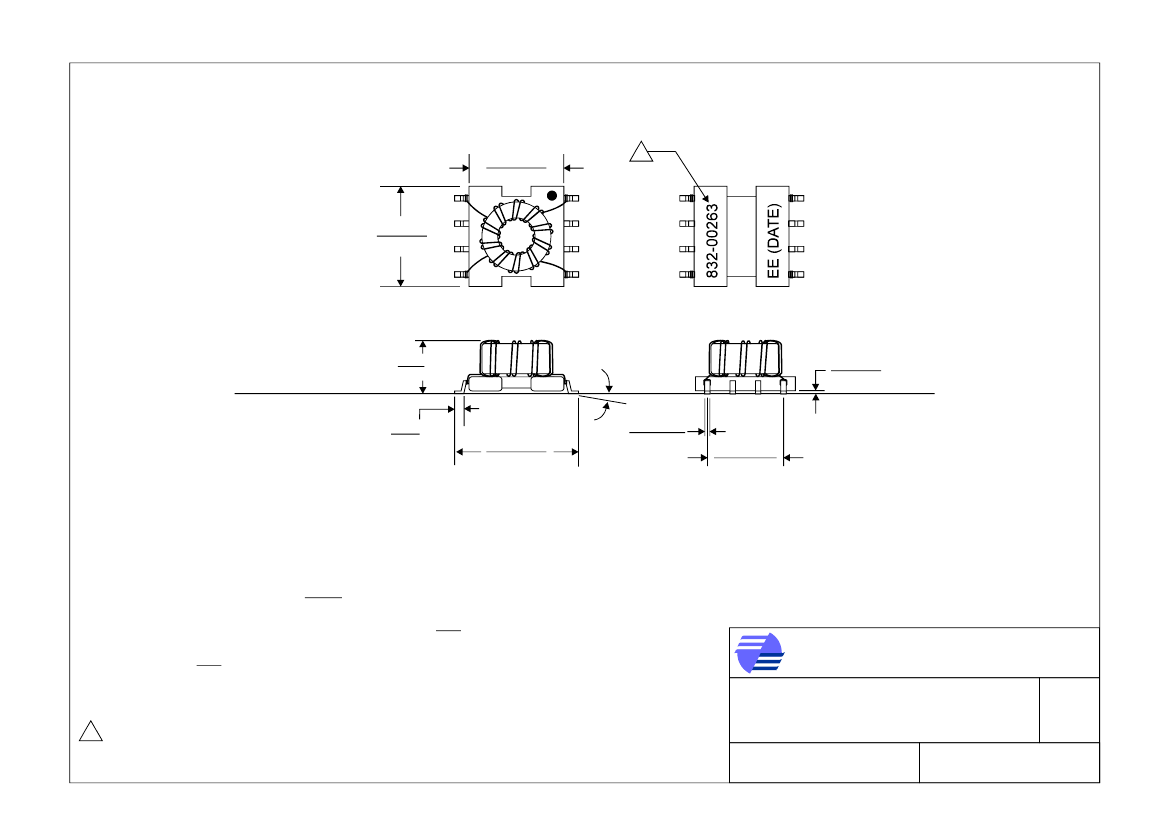

MECHANICAL OUTLINE
E & E Magnetic Products Ltd.
DRAWING NO./MODEL
REV
832-00263
SCALE
PAGE
OF
06
2
4
DO NOT SCALE
1
10 Turns
8
10 Turns
4
5
SCHEMATIC
ELECTRICAL SPECIFICATION @25
°
C:
PARAMETERS
Turn Ratio(1-4):(8-5)
Polarity(1-4):(8-5)
Inductance, Ls(1-4) @10kHz, 0.1Vrms
Hipot(1-4):(8-5)
UNIT
-
-
mH
Vrms
LIMITS
1:1 ± 1%
Per Schematic
0.30 Typ
500 Min
6. Operating temperature: 0°C to +70°C.
7. The part temperature (ambient temperature + temperature rise) should not exceed the
upper limit of the operating temperature under worst case operating conditions. Circuit
design, component placement, PWB trace size and thickness, airflow and other
cooling provisions all affect the part temperature. Part temperature should be verified
in the end application.
E & E Magnetic Products Ltd.
DRAWING NO./MODEL
REV
832-00263
SCALE
PAGE
OF
06
3
4
DO NOT SCALE
1
10 Turns
8
10 Turns
4
5
SCHEMATIC
ELECTRICAL SPECIFICATION @25
°
C:
PARAMETERS
Turn Ratio(1-4):(8-5)
Polarity(1-4):(8-5)
Inductance, Ls(1-4) @10kHz, 0.1Vrms
DCR(Each Winding), for reference only
LL(1-4), short 8+5@100kHz, 1Vrms, for reference only
Hipot(1-4):(8-5)
UNIT
-
-
mH
mΩ
uH
Vrms
LIMITS
1:1 ± 1%
Per Schematic
0.30 ± 35%
250 Max
0.13 Max
500 Min
FOR PRODUCTION USE
E & E Magnetic Products Ltd.
DRAWING NO./MODEL
REV
832-00263
SCALE
PAGE
OF
06
4
4
DO NOT SCALE
