572D107X06R3T4W datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 572D107X06R3T4W

572D107X06R3T4W: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 100 uF, SURFACE MOUNT, 1411, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size92KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

572D107X06R3T4W Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 100 uF, SURFACE MOUNT, 1411, CHIP, ROHS COMPLIANT

572D107X06R3T4W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 1411
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	100 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	600 mΩ
high	1 mm
JESD-609 code	e4
leakage current	0.0063 mA
length	3.5 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, Embossed Plastic, 13 Inch
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	144 mA
size code	1411
surface mount	YES
Delta tangent	0.14
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
width	2.7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

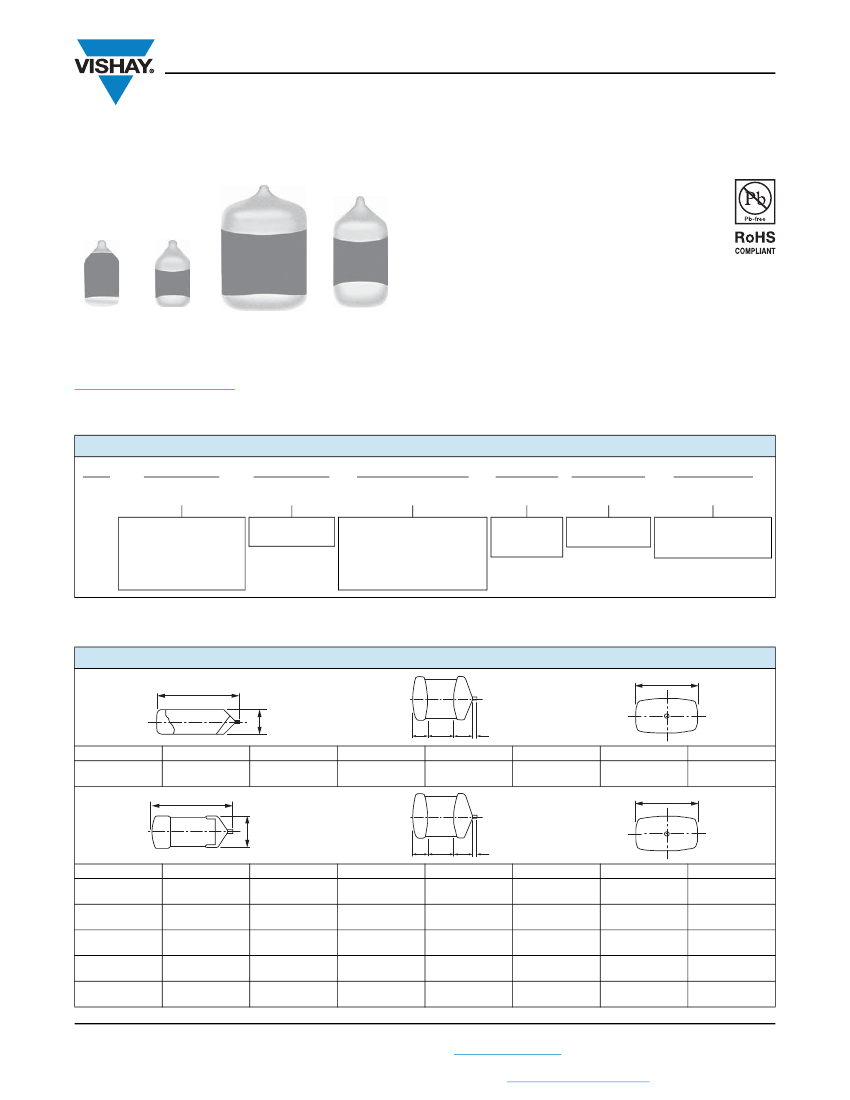

572D

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT®

, Low Profile, Conformal Coated, Maximum CV

FEATURES

•

P case offers single-sided lead (Pb)-free

terminations

• Wraparound lead (Pb)-free terminations: Q, S,

A, B, and T cases

• 8 mm and 12 mm tape and reel packaging

available per EIA-481 and reeling per IEC 60286-3

7" [178 mm] standard

13" [330 mm] available

• Mounting: Surface mount

• Compliant to RoHS Directive 2002/95/EC

P case top P case bottom

Images not to scale

B and T cases

Q, S,

and A cases

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40088

Operating Temperature:

- 55 °C to + 85 °C

(to + 125 °C with voltage derating)

Capacitance Range:

2.2 μF to 220 μF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 V

to 35 V

ORDERING INFORMATION

572D

TYPE

336

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

6R3

DC VOLTAGE RATING

AT + 85 °C

This is expressed in volts. To

complete the three-digit

block, zeros precede the

voltage rating. A decimal

point is indicated by an “R”

(6R3 = 6.3 V).

CASE CODE

TERMINATION

REEL SIZE AND

PACKAGING

T = Tape and reel

7" [178 mm] reel

W = 13" [330 mm] reel

This is expressed in

picofarads. The first two

digits are the significant

figures. The third is the

number of zeros to

follow.

See Ratings

and Case

Codes table

2 = 100 % tin

4 = Gold plated

Notes

• Preferred tolerance and reel sizes are in bold

• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size

DIMENSIONS

in inches [millimeters]

Single-side

electrodes

(both electrodes at

bottom

side

only)

CASE CODE

L (MAX.)

0.087 ± 0.012

[2.2 ± 0.3]

0.049 ± 0.012

[1.25 ± 0.3]

0.039 ± 0.008

[1.0 ± 0.2]

0.024 ± 0.012

[0.6 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

D (REF.)

0.008

[0.2]

CASE CODE

L (MAX.)

0.126 ± 0.008

[3.2 ± 0.2]

0.126 ± 0.012

[3.2 ± 0.3]

0.126 ± 0.012

[3.2 ± 0.3]

0.130 ± 0.012

[3.3 ± 0.3]

0.138 ± 0.008

[3.5 ± 0.2]

0.063 ± 0.008

[1.6 ± 0.2]

0.063 ± 0.012

[1.6 ± 0.3]

0.067 ± 0.012

[1.7 ± 0.3]

0.106 ± 0.012

[2.7 ± 0.3]

0.106 ± 0.008

[2.7 ± 0.2]

0.031 ± 0.008

[0.8 ± 0.2]

0.039 ± 0.008

[1.0 ± 0.2]

0.051 ± 0.012

[1.3 ± 0.3]

0.067 ± 0.012

[1.7 ± 0.3]

0.039 ± 0.008

[1.0 ± 0.2]

0.031 ± 0.008

[0.8 ± 0.2]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.008

[0.8 ± 0.2]

0.047 ± 0.008

[1.2 ± 0.2]

0.047 ± 0.012

[1.2 ± 0.3]

0.047 ± 0.012

[1.2 ± 0.3]

0.047 ± 0.012

[1.2 ± 0.3]

0.047 ± 0.008

[1.2 ± 0.2]

0.031 ± 0.008

[0.8 ± 0.2]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.043 ± 0.012

[1.1 ± 0.3]

0.043 ± 0.008

[1.1 ± 0.2]

D (REF.)

0.008

[0.2]

0.008

[0.2]

0.008

[0.2]

0.008

[0.2]

0.008

[0.2]

Revision: 16-Nov-11

Document Number: 40064

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
