MUR405GP-TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MUR405GP-TP

MUR405GP-TP: DescriptionRectifier Diode, 1 Phase, 1 Element, 4A, 50V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size539KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

MUR405GP-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MUR405GP-TP	-	-	View	Buy Now

MUR405GP-TP Overview

Rectifier Diode, 1 Phase, 1 Element, 4A, 50V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2

MUR405GP-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-201AD
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.045 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

MUR405GP

THRU

MUR4100GP

4 Amp Ultra Fast

Recovery Rectifier

50 to 1000 Volts

DO-201AD

Features

•

Halogen

free available upon request by adding suffix "-HF"

High Surge Capability

Low Leakage and Low Forward Voltage Drop

Ultra Fast Switching Speed For High Efficiency

Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates

RoHS Compliant. See ordering information)

•

Maximum Ratings

Epoxy meets UL 94 V-0 flammability rating

Operating Temperature: -55°C to +150°C

Storage Temperature: -55°C to +150°C

Typical Thermal Resistance 20 C/W

Moisture Sensitivity Level 1

Device

Marking

Maximum

Recurrent

RMS

Peak Reverse Voltage

Voltage

50V

100V

150V

200V

400V

600V

800V

1000V

F(AV)

FSM

4.0A

150A

35V

70V

105V

140V

280V

420V

550V

700V

= 55°C

8.3ms, half sine

Maximum

Blocking

Voltage

50V

100V

150V

200V

400V

600V

800V

1000V

MCC

Catalog

Number

MUR405GP MUR405G

MUR410GP MUR410G

MUR415GP MUR415G

MUR420GP MUR420G

MUR440GP MUR440G

MUR460GP MUR460G

MUR480GP MUR480G

MUR4100GP

MUR4100G

Average Forward

Current

Peak Forward Surge

Current

Maximum

Instantaneous

Forward Voltage

MUR405GP-415GP

MUR420GP-460GP

MUR480GP-4100GP

Cathode

Mark

Electrical Characteristics @ 25°C Unless Otherwise Specified

DIMENSIONS

1.00V

1.35V

1.85V

= 4.0A;

= 25°C

= 100

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

Maximum Reverse

Recovery Time

MUR405GP-415GP

MUR420GP-460GP

MUR480GP-4100GP

10μA

50μA

DIM

INCHES

MIN

.287

.189

.048

1.000

MAX

.374

.208

.052

---

MIN

7.30

4.80

1.20

25.40

MAX

9.50

5.30

1.30

---

NOTE

Trr

45ns

60ns

75ns

80pF

50pF

Typical Junction

Capacitance

MUR405GP-460GP

MUR480GP-4100GP

=0.5A, I

=1.0A,

=0.25A

Measured at

1.0MHz, V

=4.0V

Notes:1.High Temperature Solder Exemption Applied, see EU Directive Annex 7.

Revision: A

www.mccsemi.com

1 of 3

2014/04/08

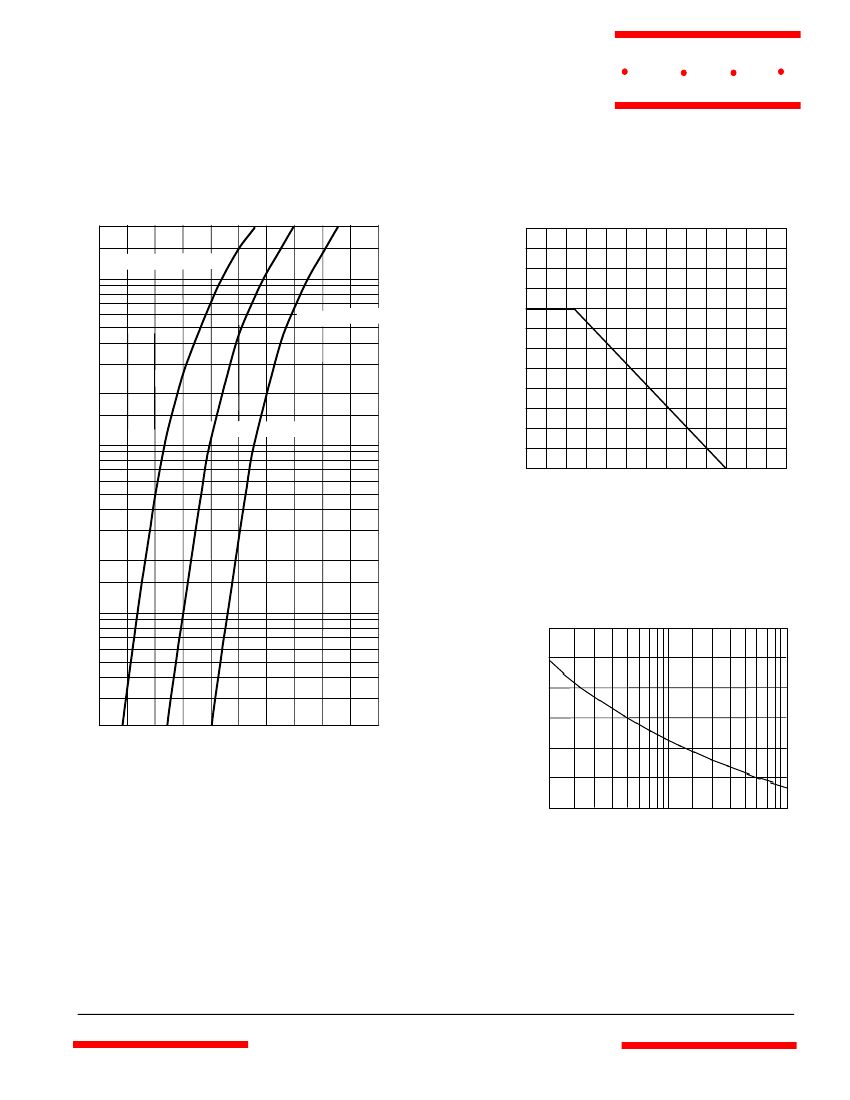

MCC

Micro Commercial Components

Ordering Information :

Device

Part Number-TP

Part Number-AP

Part Number-BP

Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF

Packing

Tape&Reel:

1.2Kpcs/Reel

Ammo Packing:

1.2Kpcs/Ammo

Box

Bulk:

12Kpcs/Carton

***IMPORTANT NOTICE***

Micro Commercial Components Corp.

reserves the right to make changes without further notice to any product herein to

make corrections, modifications , enhancements , improvements , or other changes .

Micro Commercial Components

Corp .

does not assume any liability arising out of the application or use of any product described herein; neither does it

convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all

risks of such use and will agree to hold

Micro Commercial Components Corp .

and all the companies whose products are

represented on our website, harmless against all damages.

***LIFE SUPPORT***

MCC's products are not authorized for use as critical components in life support devices or systems without the express written

approval of Micro Commercial Components Corporation.

***CUSTOMER AWARENESS***

Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking

strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages

customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on

our web page cited

below.

Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine

parts, have full traceability, meet MCC's quality standards for handling and storage.

MCC will not provide any warranty

coverage or other assistance for parts bought from Unauthorized Sources.

MCC is committed to combat this global

problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized

distributors.

www.mccsemi.com

Revision: A

3 of 3

2014/04/08
