FMC-07DBOS-321 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FMC-07DBOS-321

FMC-07DBOS-321: DescriptionCircular Connector; CategoryThe connector The connector; File Size374KB，3 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

FMC-07DBOS-321 Overview

Circular Connector

FMC-07DBOS-321 Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	CIRCULAR CONNECTOR
Manufacturer's serial number	FMC
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES

FMC

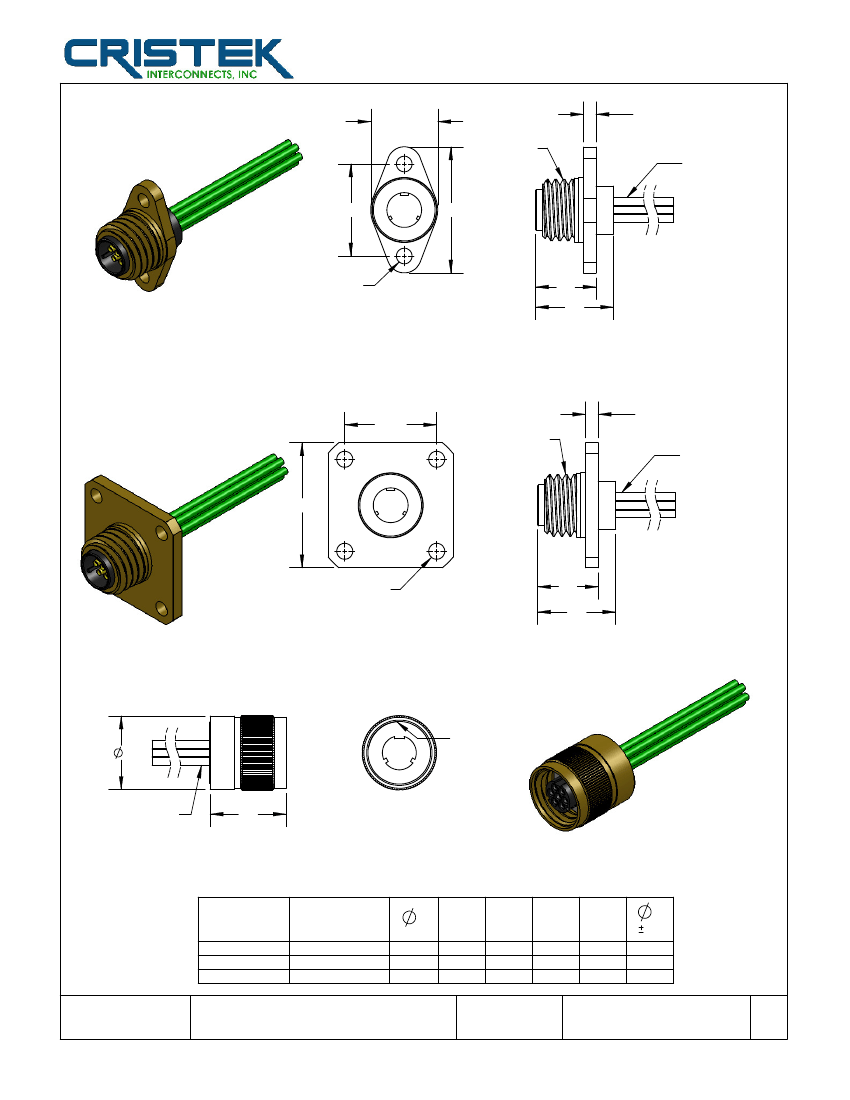

FLANGE MOUNT CIRCULAR

MICROMINIATURE METAL SHELL

FMC

CRISTEK FLANGE MOUNT

METAL CIRCULAR CONNECTOR

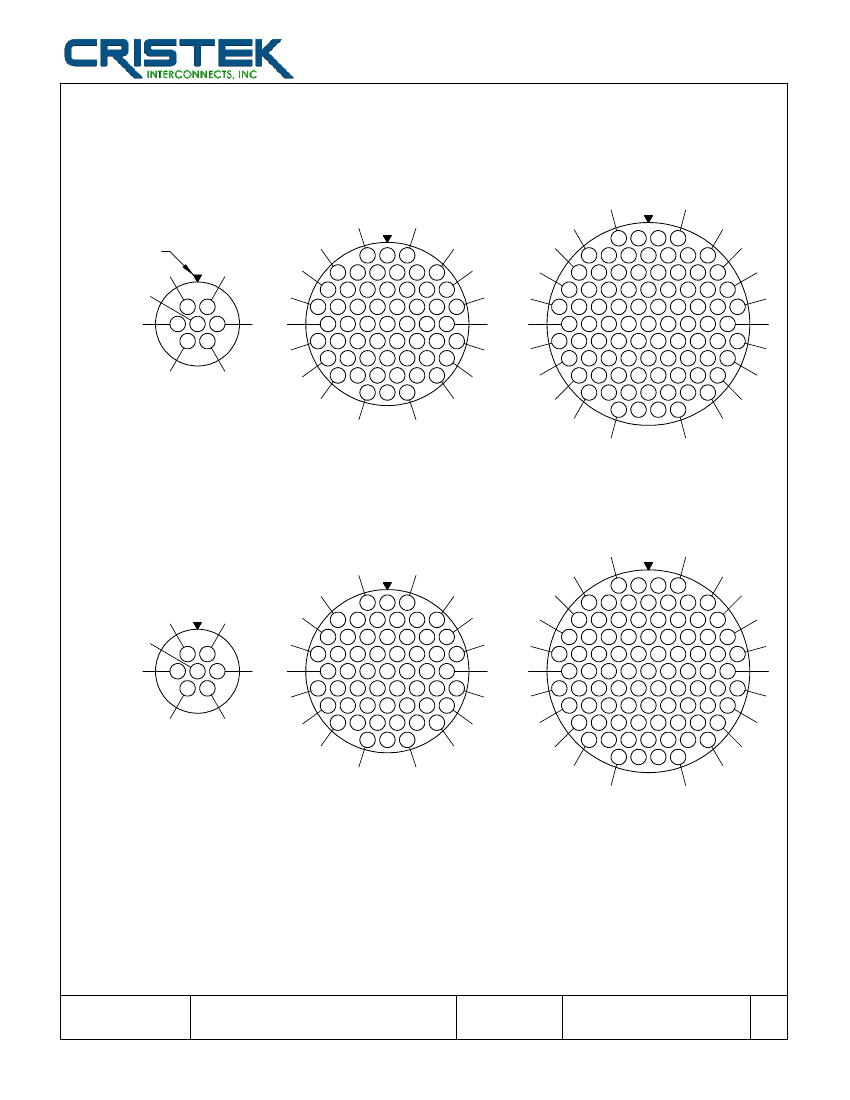

NUMBER OF CONTACTS

XX X X X X X X X

WIRE LENGTH

STRANDED (+1.00 / -0.00)

1 = 6 INCHES

2 = 12 INCHES

3 = 18 INCHES

4 = 24 INCHES

5 = 36 INCHES

6 = 72 INCHES

SOLID COPPER (+0.20 / -0.00)

1 = 0.5 INCH

2 = 1.0 INCH

3 = 0.25 INCH

WIRE SIZE

STRANDED WIRE

0= 26 AWG

1 = 24 AWG

2 = 28 AWG

SOLID WIRE

0 =25 AWG

1 = 24 AWG

WIRE COLOR/TYPE

0 = WHITE STRANDED *

1 = YELLOW STRANDED

2 = 10 SOLID COLORS REPEATED *

3 = FULL COLOR CODE STRANDED

9 = SOLID COPPER *

SHELL & CONTACTS TYPE CODE

D = DIAMOND FLANGE REAR PANEL MOUNTING

RECEPTACLE (SOCKET CONTACTS)

S = SQUARE FLANGE REAR PANEL MOUNTING

RECEPTACLE (SOCKET CONTACTS)

P = PLUG (PIN CONTACTS)

SHELL MATERIAL

B = BRASS (REQUIRES PLATING)

S = STAINLESS STEEL (REQUIRES PASSIVATION)

SHELL FINISH

B = ELECTROLESS NICKEL (PREFERRED PLATING)

Y = YELLOW CHROMATE CADMIUM OVER NICKEL PLATE

O = OLIVE DRAB CADMIUM OVER NICKEL PLATE

P = PASSIVATION

TERMINATION

WIRE TYPE

STRANDED

H = HARNESS (MIL-W-16878/4)

M = MILITARY (MIL-W-22759/11) *

S = SPACE (MIL-W-22759/33)

SOLID

G = GOLD PLATED COPPER

T = TIN/LEAD PLATED COPPER

* = MOST COMMONLY USED & STOCKED WIRE TYPES

MATERIALS AND FINISHES ARE IAW MIL-DTL-83513 WHERE APPLICABLE

FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM

1. MATERIALS:

SHELL AND COUPLING NUT - BRASS OR STAINLESS STEEL

INSERT - REINFORCED THERMOPLASTIC OR EPOXY RESIN

DIELECTRIC PLASTICS

PIN/SOCKET CONTACT - COPPER ALLOY

3. SPECIFICATIONS:

CURRENT RATING ------------------ 3 AMPS MAX

TEMPERATURE RATING ---------- -55° C TO +125° C

INSULATION RESISTANCE -------- 5000 MEGOHMS MIN

DWV AT SEA LEVEL ---------------- 600 VAC

DWV AT 70,000 FT ALTITUDE -- 150 VAC

CONTACT RESISTANCE

26 AWG -------------------------- 32 MILLIOHMS

25 AWG -------------------------- 25 MILLIOHMS

24 AWG -------------------------- 25 MILLIOHMS

LOW LEVEL CONTACT ------------- 10 MILLIOHMS MAX

RESISTANCE

CONTACT RETENTION ------------- 5 LBS MINIMUM AXIAL LOAD

ENGAGEMENT FORCE ------------- 6 oz MAX

SEPARATION FORCE --------------- 0.5 oz MIN

4. ADDITIONAL INFORMATION:

DESIGN AND PERFORMANCE IN GENERAL

ACCORDANCE WITH M83513 WHERE

APPLICABLE.

FOR OTHER TERMINATIONS,

CONTACT CRISTEK.

2. FINISH:

SHELL AND COUPLING NUT - ELECTROLESS NICKEL,

YELLOW CADMIUM OVER ELECTROLESS NICKEL,

OLIVE CADMIUM OVER NICKEL OR PASSIVATION

CONTACT - GOLD OVER NICKEL

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

FLANGE MOUNT CIRCULAR

MICROMINIATURE

METAL SHELL

DWG. NO.

SHT

REV

FMC

888.265.9162

CRISTEK.COM
