5252L-25MA1

Description
D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Plug
CategoryThe connector    The connector
File Size196KB,1 Pages
ManufacturerRatioplast Electronics
Environmental Compliance
Download Datasheet Parametric View All

5252L-25MA1 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Plug

5252L-25MA1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerRatioplast Electronics
Reach Compliance Codecompliant
body width0.496 inch
body length2.09 inch
Body/casing typePLUG
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance25 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number5252L
Plug contact pitch0.109 inch
Match contact row spacing0.11 inch
Installation option 1HOLE .125-.137
Installation option 2LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN OVER COPPER
Termination typeIDC
Total number of contacts25
Base Number Matches1
LOW PROFILE D-SUB. CONNECTOR I.D.C. TYPE WITH METAL SHELL &
THROUGH HOLES
Current Rating:
3.0 Ampere
Contact Resistance:
25mΩ Max.
Insulation Resistance:
1000MΩ Min. at 500V
Dielectric Voltage:
1000V at 1 Minute
Operating Temperature:
-55ºc to +105ºc
SPECIFICATIONS
MATERIALS
Insulator:
PBT, UL94V-0 Rated
Contact:
Brass
Shell:
Brass,Steel
Contact Plating:
Gold Over Nickel Plated
Shell Plating:
Tin Over Copper Plated
*RoHS & REACH compliant.

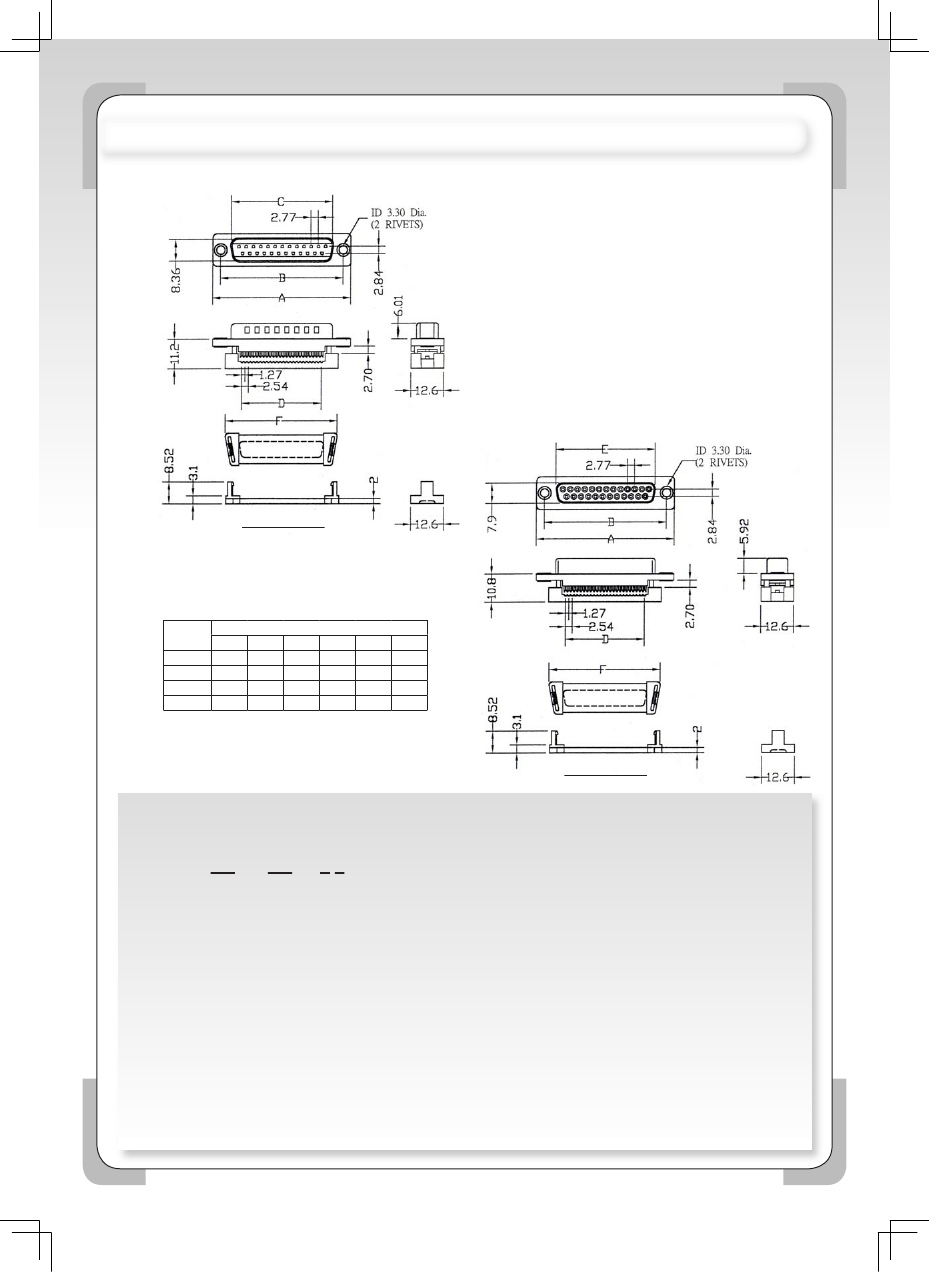

5251L-xxMx1
No. of
Contacts
09
15
25
37
A
30.89
39.14
53.09
69.39
Dimensions(mm)
B
C
D
E
24.99 16.92 10.16 16.33
33.32 25.25 17.78 24.66
47.04 38.96 30.48 38.38
63.50 55.45 45.72 54.84
F
21.78
29.62
43.35
59.92
5252L-xxMx1
ORDERING INFORMATION:
P/N 5 2 x x L - x x M x 1
1
2
34
1. CONNECTOR TYPE:
"51" MALE
"52" FEMALE
2. NO. OF CONTACTS:
09, 15, 25, 37
3. INSULATOR COLOR:
"B" BLACK (STANDARD)
"U" BLUE (STANDARD)
"A" GRAY (OPTIONAL)
"N" DARK GREEN (OPTIONAL)
"R" DARK RED (OPTIONAL)
4. MOUNTING TYPE:
"1" Ø3.30MM RIVETED THROUGH HOLES
C0023
