532840-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 532840-8

532840-8: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,684 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL; CategoryThe connector The connector; File Size324KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

532840-8 Overview

HEADER CONNECTOR,PCB MNT,PLUG,684 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL

532840-8 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	MOUNT, EARS OPTIONAL
Board mount options	#2-56 THD HOLE
body width	0.46 inch
subject depth	0.824 inch
body length	18.45 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	533525
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	684
Base Number Matches	1

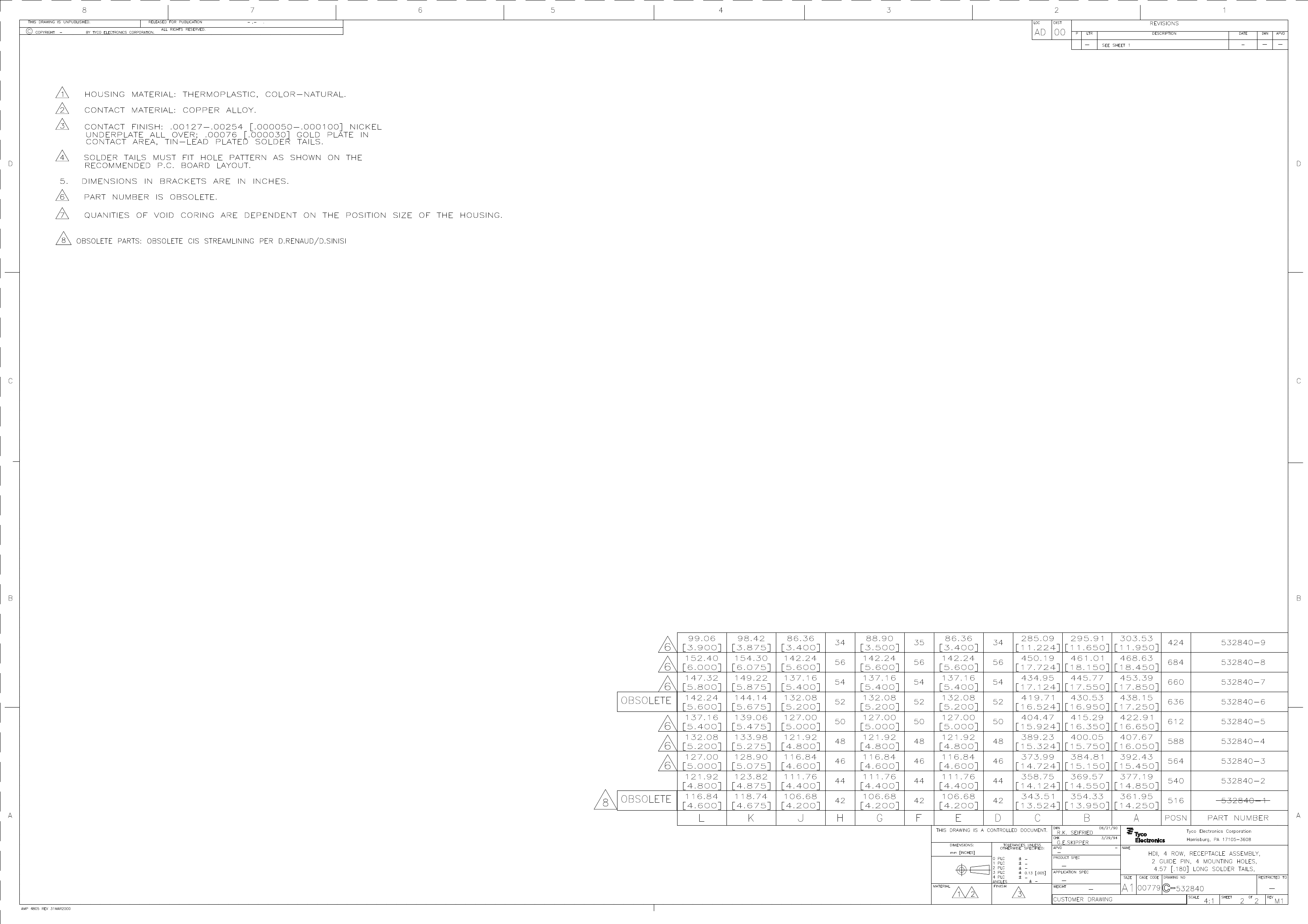

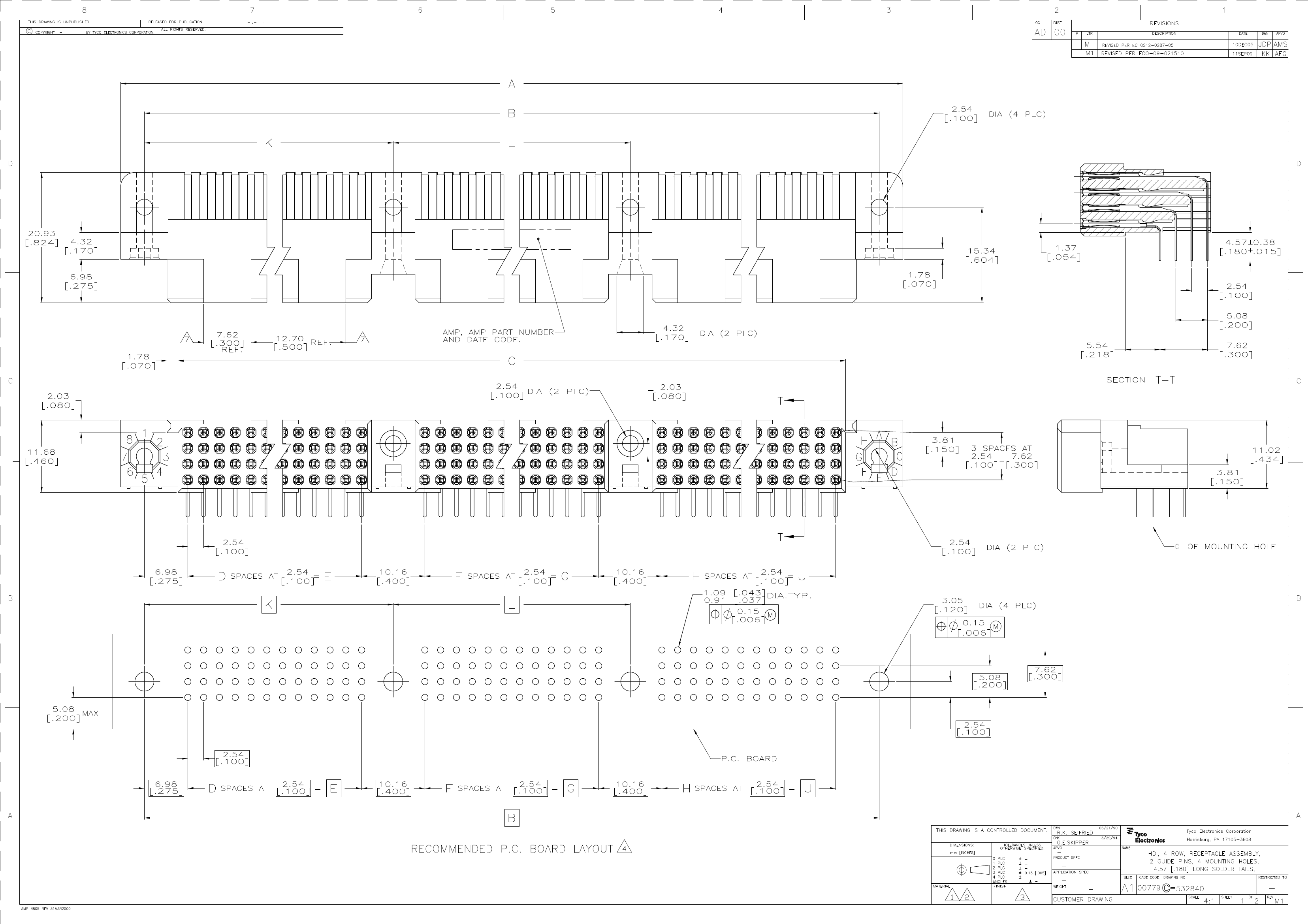

Preview

Download Datasheet

View All

532840-8 Related Products

	532840-8	532840-5	532840-7	532840-1	532840-3
Description	HEADER CONNECTOR,PCB MNT,PLUG,684 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	HEADER CONNECTOR,PCB MNT,PLUG,612 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	CONNECTOR, 660 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,516 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	CONNECTOR, 564 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	GOLD (30) OVER NICKEL	AU	GOLD (30) OVER NICKEL
Contact completed and terminated	NICKEL	NICKEL	TIN LEAD OVER NICKEL	NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Manufacturer's serial number	533525	533525	532840	533525	532840
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	684	612	660	516	564
Base Number Matches	1	1	1	1	1
Other features	MOUNT, EARS OPTIONAL	MOUNT, EARS OPTIONAL	-	MOUNT, EARS OPTIONAL	-
Board mount options	#2-56 THD HOLE	#2-56 THD HOLE	-	#2-56 THD HOLE	-
body width	0.46 inch	0.46 inch	-	0.46 inch	-
subject depth	0.824 inch	0.824 inch	-	0.824 inch	-
body length	18.45 inch	16.65 inch	-	14.25 inch	-
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	-	BERYLLIUM COPPER	-
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	-
Durability	250 Cycles	250 Cycles	-	250 Cycles	-
Insulator color	NATURAL	NATURAL	-	NATURAL	-
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	-	GLASS FILLED POLYPHENYLENE SULPHIDE	-
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	-	0.1 inch	-
Installation option 1	#2-56	#2-56	-	#2-56	-
Installation option 2	THREADED	THREADED	-	THREADED	-
Number of connectors	ONE	ONE	-	ONE	-
PCB row number	4	4	-	4	-
Maximum operating temperature	125 °C	125 °C	-	125 °C	-
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	-	2.54 mm	-
Plating thickness	30u inch	30u inch	-	30u inch	-
polarization key	POLARIZED KEY	POLARIZED KEY	-	POLARIZED KEY	-
Guideline	UL, CSA	UL, CSA	-	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-
Terminal length	0.18 inch	0.18 inch	-	0.18 inch	-
