MX29L800CTXHI-90 datasheet, PDF

Datasheet> All Categories > storage> storage> MX29L800CTXHI-90

MX29L800CTXHI-90: DescriptionFlash, 512KX16, 90ns, PBGA48, 5 X 6 MM, 0.75 MM HEIGHT, 0.50 MM PITCH, CSP-48; Categorystorage storage; File Size705KB，59 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Parametric View All

MX29L800CTXHI-90 Overview

Flash, 512KX16, 90ns, PBGA48, 5 X 6 MM, 0.75 MM HEIGHT, 0.50 MM PITCH, CSP-48

MX29L800CTXHI-90 Parametric

Parameter Name	Attribute value
Maker	Macronix
Parts packaging code	BGA
package instruction	VFBGA,
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	90 ns
Spare memory width	8
startup block	TOP
JESD-30 code	R-PBGA-B48
JESD-609 code	e0
length	6 mm
memory density	8388608 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	48
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX16
Package body material	PLASTIC/EPOXY
encapsulated code	VFBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Programming voltage	1.8 V
Certification status	Not Qualified
Maximum seat height	0.75 mm
Maximum supply voltage (Vsup)	2.2 V
Minimum supply voltage (Vsup)	1.65 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	BALL
Terminal pitch	0.5 mm
Terminal location	BOTTOM
type	NOR TYPE
width	5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MX29SL800C T/B

8M-BIT [1M x 8 / 512K x 16] SINGLE VOLTAGE

1.8V ONLY FLASH MEMORY

FEATURES

GENERAL FEATURES

• Single Power Supply Operation

- 1.65 to 2.2 volt for read, erase, and program operations

• 1,048,576 x 8 / 524,288 x 16 switchable

• Boot Sector Architecture

- T = Top Boot Sector

- B = Bottom Boot Sector

• Sector Structure

- 16K-Byte x 1, 8K-Byte x 2, 32K-Byte x 1, and 64K-Byte x 15

• Sector protection

- Hardware method to disable any combination of sectors from program or erase operations

- Temporary sector unprotected allows code changes in previously locked sectors

• Latch-up protected to 100mA from -1V to Vcc + 1V

• Compatible with JEDEC standard

- Pinout and software compatible to single power supply Flash

PERFORMANCE

• High Performance

- Access time: 90ns

- Byte/Word program time: 12uS/18uS (typical)

- Erase time: 1.3s/sector, 18s/chip (typical)

• Low Power Consumption

- Low active read current: 6mA (maximum) at 5MHz

- Low standby current: 1uA (typical)

• Minimum 100,000 erase/program cycle

• 10 years data retention

SOFTWARE FEATURES

• Erase Suspend/ Erase Resume

- Suspends sector erase operation to read data from or program data to another sector which is not being erased

• Status Reply

- Data# Polling & Toggle bits provide detection of program and erase operation completion

• Support Common Flash Interface (CFI)

HARDWARE FEATURES

• Ready/Busy# (RY/BY#) Output

- Provides a hardware method of detecting program and erase operation completion

• Hardware Reset (RESET#) Input

- Provides a hardware method to reset the internal state machine to read mode

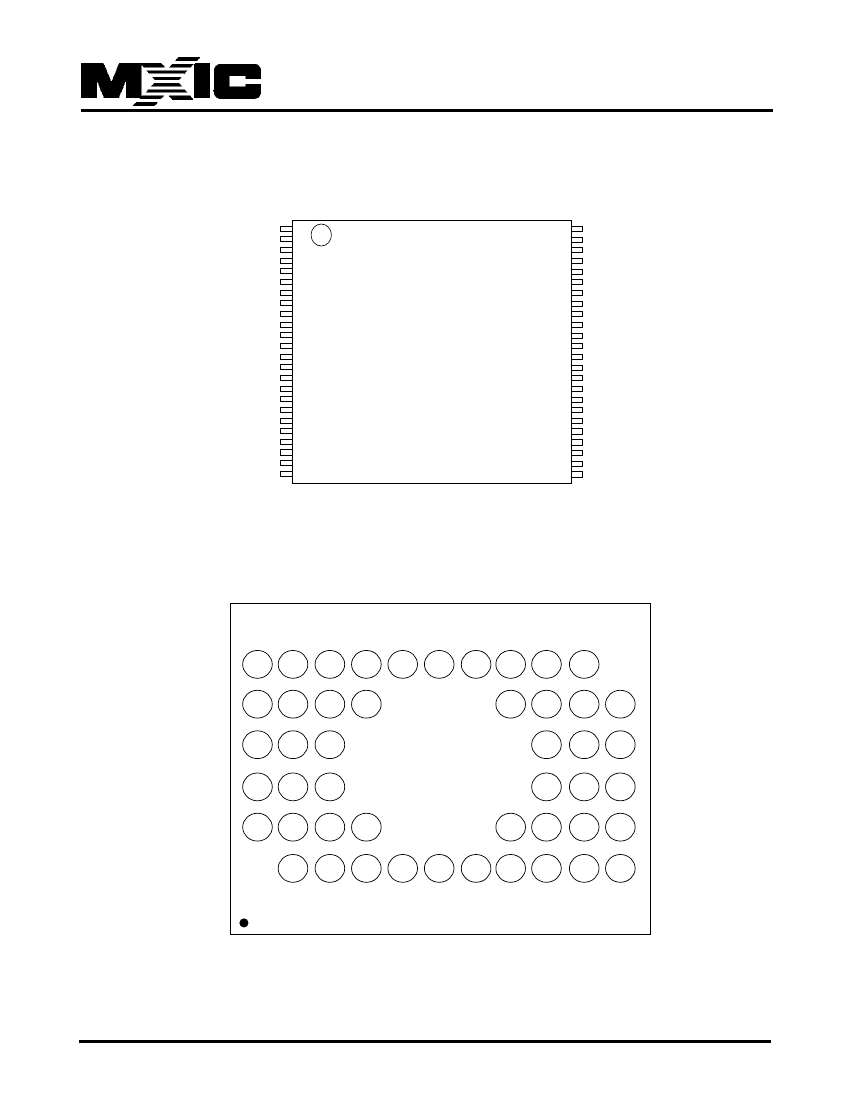

PACKAGE

• 48-Pin TSOP

• 48-Ball CSP

•

All Pb-free devices are RoHS Compliant

P/N:PM1244

REV. 1.4, NOV. 06, 2006
