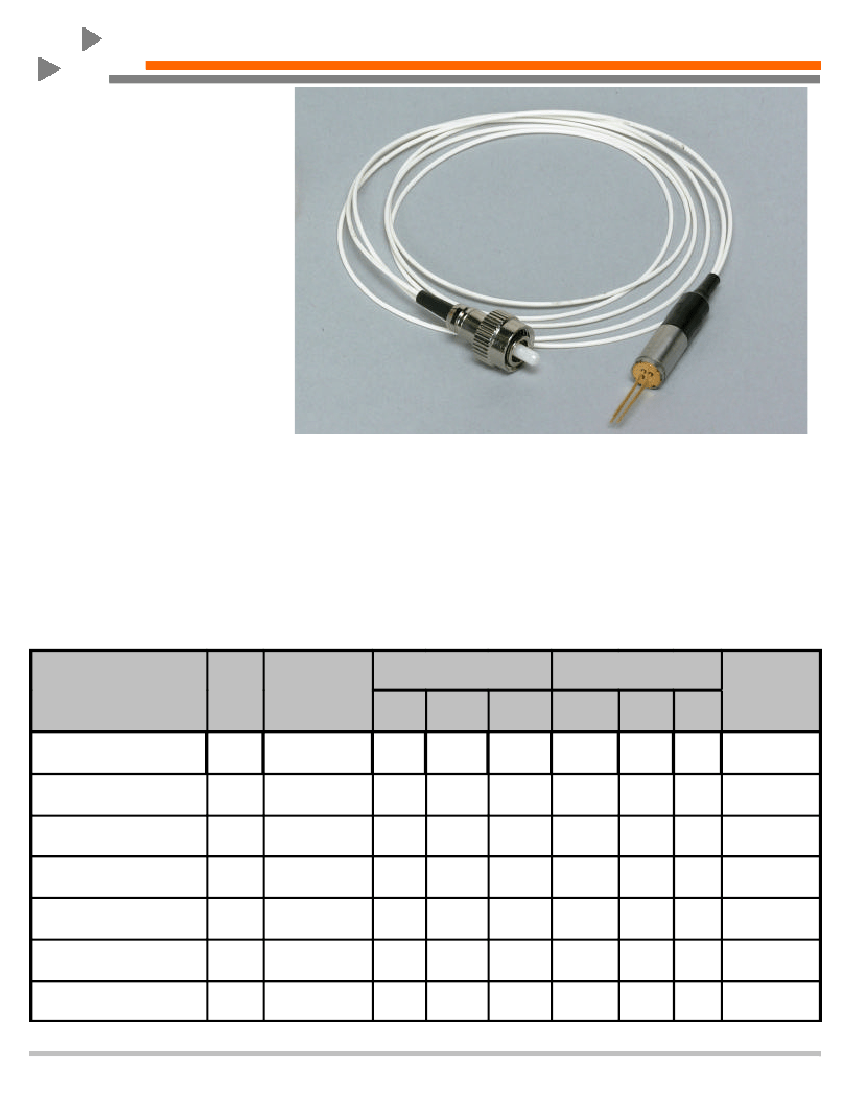

PL13/15 Pulsed Series Laser Diode Modules
Inc.
PD-LD Inc. now offers a choice of
packaging options for its’ Pulsed Series
of
laser diodes. These units are
available in ready-to-use, fiber-coupled
packages, including FC, ST, and SC
receptacles, as well as fiber- pigtailed
units.
These Pulsed InGaAsP
laser
diodes offered by PD-LD are of proven
design and manufacture; the standard
wavelengths are centered at 1310 and
1550nm. Fiber-coupled Pulsed (duty
cycle=1%, pulse width=10ì s ) output
powers range from 60 to 120 mW,
depending on wavelength and desired
performance level. These
semiconductor lasers have low
threshold and operating currents that
help to ensure high reliability and long
operating life.
Optional board- or panel -mount
flanges are available for pigtailed
devices; contact PD-LD Sales. Fiber
Pigtailed devices are made using an
active micro-positioning system and
YAG Laser welding system ensuring
high reliability and coupling efficiency.
High power pulsed lasers have a 4
pin configuration and do not have a rear
facet monitor detector.
Features
•
High Power (Pulse 60 to 120mW)
•
Compact, reliable receptacle & coax fiber-coupled package
•
Stable single transverse mode oscillation
•
MQW (Multiple Quantum Well)
Applications
•
Fiberoptic Test Equipment
•
Optical Time Domain Reflectometers
Performance Specifications
Test Condition
Parameter
Sym-
bol
I
f
=I
op
Pulse
If=700mA
I
f
=I
op
Pulse
If=700mA
-
CW, Po=5mW
I
f
=I
op
Pulse
If=700mA
I
f
= I
op
Pulse
If=700mA
I
f
= I
th
10~90%
PL13H1201OOA-0-P-01
Min
1285
-
-
-
-
100
-
Typ
1310
7
20
30
3
120
1
Max
1335
10
50
120
4.5
-
2
PL15H1001OOA-0-P-01
MIn
1520
-
-
-
-
60
-
Typ
1550
7
30
50
3
100
1
Max
1580
10
50
180
4.5
-
2
nm
nm
mA
mA
V
mW
ns
Units
Central Wavelength
ëc
Äë
I
th
I
op
V
op
P
Tr , Tf
Spectral Width
Threshold Current
Operating Current
Operating Voltage
Pulse Light Output
Rise & Fall Time
Above spevifications at 25°C .
Specifications subject to change.

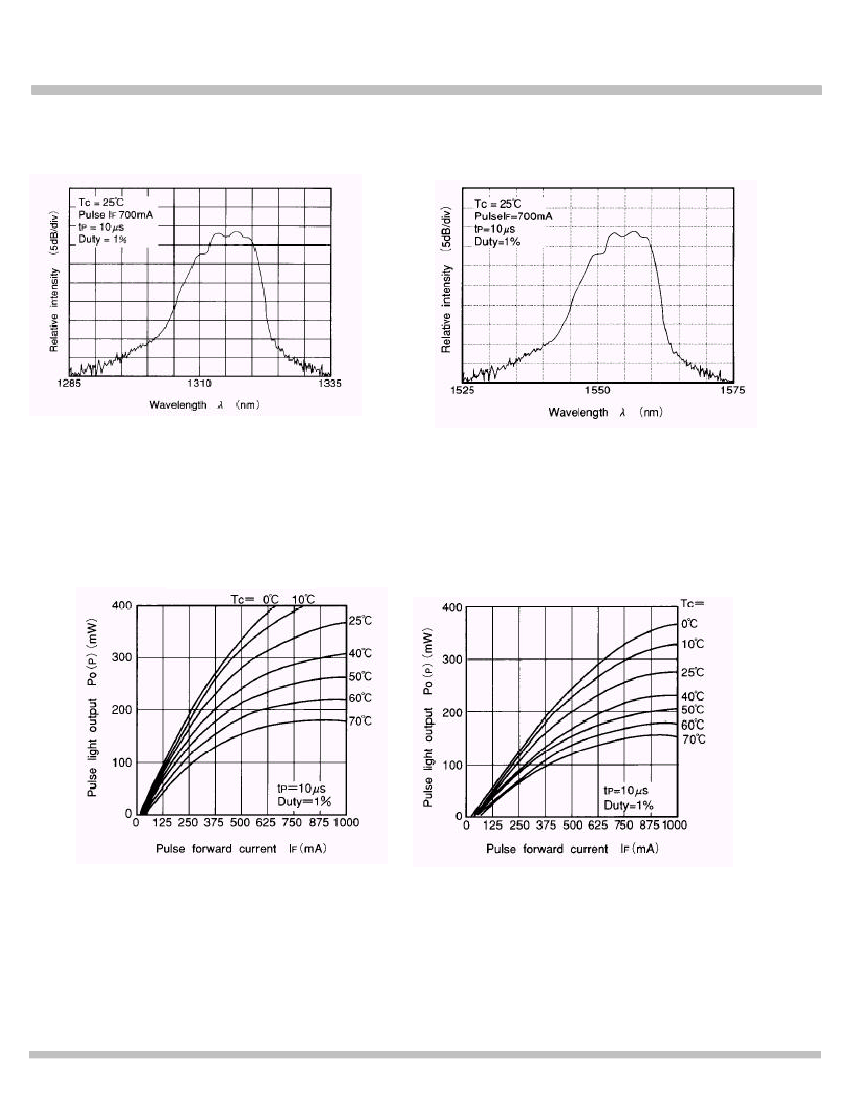

01-10 Pulsed.Rev0
30-B Pennington-Hopewell Rd., Pennington NJ 08543 FON: 609-564-7900 FAX: 609-564-7901 EMAIL: info@pd-ld.
Laser Diodes for Fiber Optics
Physical Dimensions (mm) & Pin Connection
PL13/15
Pulsed Series
Pigtailed Lasers Ordering Information
PLWWHPPPFCCB-0-V-LL
L
Laser
WWW
Wavelength
13 = 1310nm
15 = 1550nm
H
Pin Out
4pin Laser without Monitor Photodiode
PPP
Fiber-Coupled Power
060=
60mW
080=
80mW
100=
100mW
120=
120mW
O= Lead Orientation
0=N/A
Specified by customer
F=
1=
2=
3=
4=
9=
Fiber Type
9/125 SMF
50/125 MMF
62.5/125 MMF
100/140 MMF
Customer Supplied
C=Connector Type
OO=
No Connector
FC=FC/PC
FA=FC/APC
SC=SC/PC
SA=SC/APC
ST=ST/PC
B=Bracket Type
A=No
Bracket
B=Panel
Mount
C=Board
Mount
V= Version
All pulsed lasers are referred by “P” version
LL = Length in meters for pigtailed devices(01,02,
0.5 ect.)
ST is a registered trademark of AT&T
06-01PL13/15DFB.Rev.0
