3204-BNCM

Description
RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
CategoryWireless rf/communication    Radio frequency and microwave
File Size41KB,1 Pages
ManufacturerCobham PLC
Environmental Compliance
Download Datasheet Parametric View All

3204-BNCM Overview

RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3204-BNCM Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2067114597
Reach Compliance Codeunknown
Other featuresBNC-M, I/P POWER-MAX(PEAK)=500W
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)33.01 dBm
JESD-609 codee4
Maximum operating frequency4000 MHz
Minimum operating frequency
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesRF/MICROWAVE TERMINATION
Terminal surfaceGold (Au)
Maximum voltage standing wave ratio1.35
TERMINATIONS

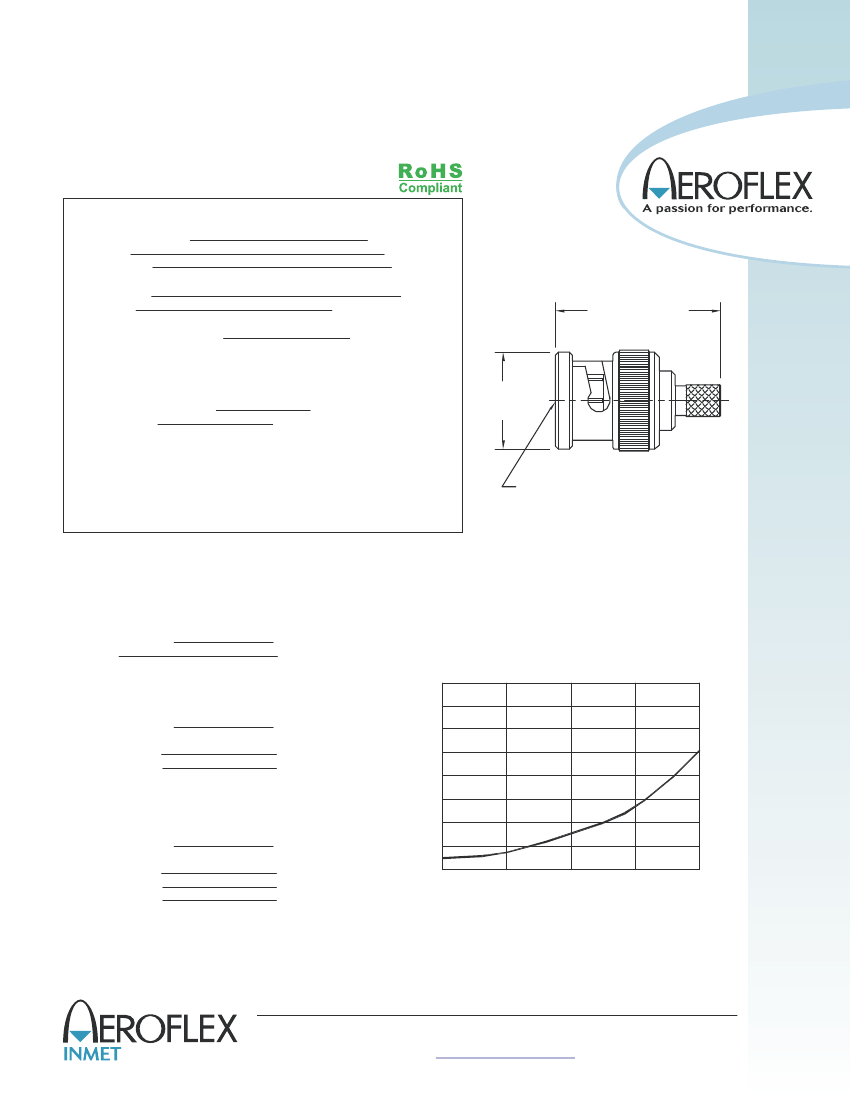

BNC MALE, DC - 4 GHz, 2 Watts
SPECIFICATIONS:
Models: 3201-BNCM, 3202-BNCM, 3204-BNCM
Electrical:
Frequency Range
VSWR
Impedance
Power
Average
Peak
Operating Temp Range
o
DC - 4.0 GHz
See Below
50 Ohms
2 Watts
500 Watts Maximum
(1uSec Pulse, .01% Duty Cycle)
1.00[25.4] MAX.
-55°C to +1
25°C
2 Watt Avg. @ +25 C Derated Linearly
to 10% of Rated Power @ +1
o
25 C
Mechanical:
Connectors & Housing*
Conductors
ALL SOLDERED CONSTRUCTION FOR
MAXIMUM RELIABILITY.
Brass and/or Zinc Alloy
Gold Plated Beryllium Copper
Ø.60[15.2]
MAX.
*For a Silver Plated Connector add '-S' to the Model Number.
Ordering Example: Model Number:
3201-BNCM-S
DC - 1 GHz, BNC Silver plated Connector
BNC Male Connector
(Mates with MIL-STD-348)
Model Number:
3201-BNCM
DC - 1.0 GHz
1. 5:1 MAX.
1
1.40:1
Frequency Range
VSWR
3204-BNCM
TYPICAL PERFORMANCE
Model Number:
3202-BNCM
DC - 2.5 GHz
1. 0:1 MAX.
1
1.20:1 MAX.
1.30:1
VSWR
Frequency Range
VSWR
DC - 1.0 GHz
1.0 - 2.5 GHz
1.20:1
Model Number:
3204-BNCM
DC - 4.0 GHz
1. 0:1 MAX.
1
1.20:1 MAX.
1.35. MAX.
1
1. 0:1
1
Frequency Range
VSWR
DC - 1.0 GHz
1.0 - 2.5 GHz
2.5 - 4.0 GHz
1.00:1
.01
1.0
2.0
3.0
4.0
Freq (GHz)
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
specifications before purchasing or use.
320X-BNCM: REV B
Aeroflex / Inmet, Inc.
300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet
• inmetsales@aeroflex.com
