AXK790127G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AXK790127G

AXK790127G: DescriptionBoard Stacking Connector, 90 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size805KB，15 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

AXK790127G Overview

Board Stacking Connector, 90 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

AXK790127G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	LOW PROFILE
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	90
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

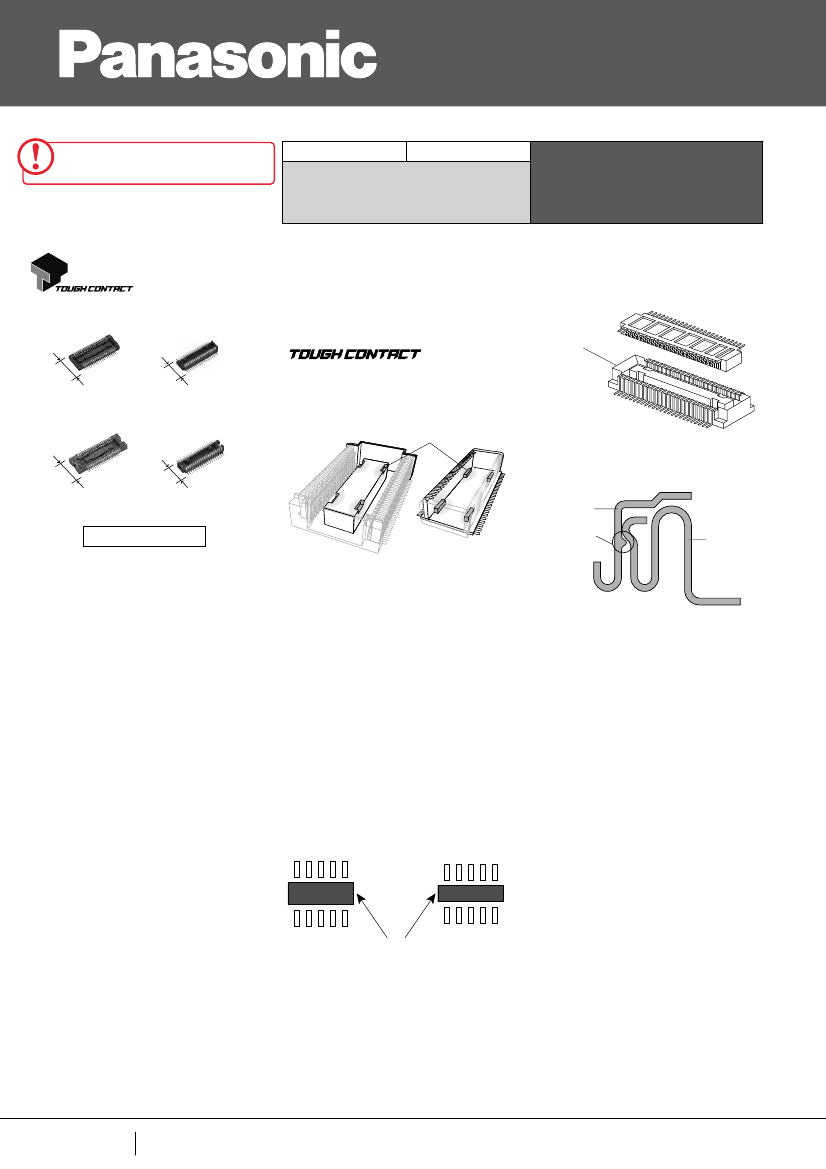

Automation Controls Catalog

Partly To Be Discontinued

Last time buy:September 30, 2013

For board-to-board For board-to-FPC

Narrow pitch connectors

(0.4mm pitch)

Series

2) Guides are provided to take up any

position shift and facilitate insertion.

FEATURES

• Without soldering terminals

1. 0.4 mm pitch and mated heights of

1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5

mm, and 4.0 mm.

2. Strong resistance to adverse

environments! Utilizes

“

” construction

for high contact reliability.

3. Constructed with impact dispersion

keys inside the body to disperse

shocks when dropped.

Socket

Insertion guide

• With soldering terminals

Socket

Header

Impact dispersion key

Socket

Header

3) Simple lock structure provides tactile

feedback to ensure excellent mating/

unmating operation feel.

Header side

contact

RoHS compliant

Header

Simple lock

mechanism

Socket side

contact

A high level of shock resistance is

ensured by dispersing impact over the

four locations where the socket

indentations and header protrusions are

mated together.

Note: The following number of pins are not supported

due to suction surface factors.

• Without soldering terminals:

18 pin contacts or less

• With soldering terminals:

22 pin contacts or less

4. Construction makes designing

devices easier.

1) The lower connector bottom surface

construction prevents contact and shorts

between the PCB and metal terminals.

This enables freedom in pattern wiring,

helping to make PCB’s smaller.

5. Design facilitates efﬁcient

mounting.

Features a terminal flatness of 0.08 mm,

construction resistant to creeping flux,

and design that allows visual inspection

of the soldered part.

6. Connectors for inspection available

APPLICATIONS

Mobile devices, such as cellular

phones, digital still cameras and

digital video cameras.

Connector bottom: Create any thru-hole and pattern wiring.

2013.09

industrial.panasonic.com/ac/e/

–1–

Panasonic Corporation 2013

ACCTB62E 201309-T
