SFC37S30-10H400Z datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SFC37S30-10H400Z

SFC37S30-10H400Z: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 30uF, CHASSIS MOUNT; CategoryPassive components capacitor; File Size43KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

SFC37S30-10H400Z Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 30uF, CHASSIS MOUNT

SFC37S30-10H400Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MINIMUM CAPACITANCE IS 10 MICRO FARAD
capacitance	30 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	CHASSIS MOUNT
negative tolerance	6%
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	6%
Rated (AC) voltage (URac)	370 V
surface mount	NO
Terminal shape	LUG
Base Number Matches	1

Preview

Download Datasheet

View All

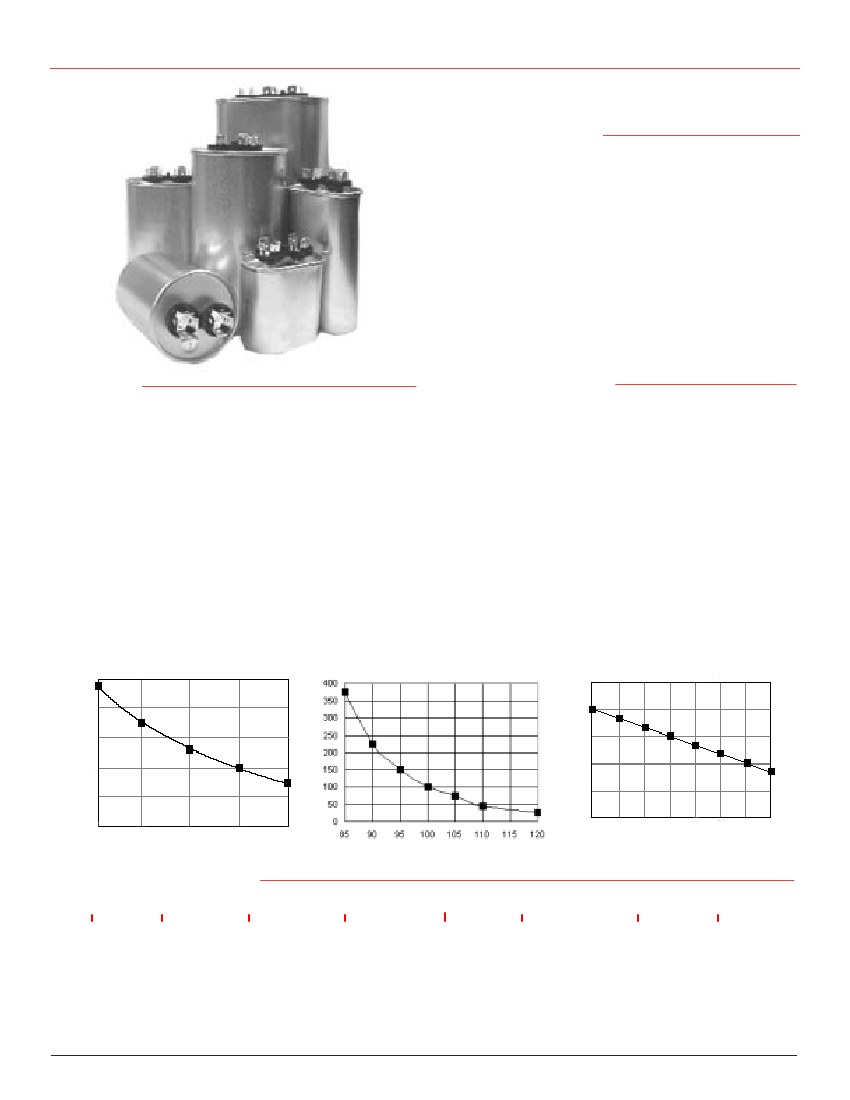

Type SF

Dual, Round & Oval, Oil-Filled Motor Run Capacitors

Metallized Polypropylene

Applications

These dual rated oil filled motor run capacitors

made with self-healing metallized polypropylene

film are commonly used in air conditioning, motors

and compressor applications. The dual ratings in a

single can provide two capacitors - one may be

used as a fan capacitor and the other as a com-

pressor or motor run capacitor. Three terminals

allow one terminal to act as a common while the

other two are connected to the individual capaci-

tors.

Highlights

•

Voltage range 370 Vac and 440 Vac

Capacitance range: 15-5 µF to 80-10 µF

Temperature

range: –40 °C to 70 °C

Capacitance tolerance: ±10% standard and

other tolerances ( ±6% and ±3%) are available

Self Healing

Fault current protection up to 10,000 amps

AFC

Low energy consuption. Dissipation factor

<0.1%

UL recognized under E71645

Meets EIA Standard EIA-456-A

Life vs. Temperature

100000

% of Rated Life

Service Life Objective

The service life objective for the series is 60,000 hours

of operating life with a 94% survival rate when oper-

ated at full voltage, 60 Hz, and rated ambient tem-

perature. AC capacitors are frequently used at volt-

ages and ambient temperatures other than rated con-

ditions. Service life may be estimated under specific

conditions of temperature and voltage by using the

curves below.

Life vs. Voltage

Capacitance Change %

Capacitance vs. Temperature

–2

–4

–6

–40 –20

60 80

100

% of Rated Life

10000

1000

100

% of Rated Temperature

125

% of Rated Voltage

Temperature °C

Part Numbering System

Se rie s

Ca se

= 1 3/4" Ov al

= 2.0"

Ov al

Round

AC Volt

= 370 Vac

= 440 Vac

= Other

= Steel

Ca se Ma te ria l

= Aluminum w ith

steel cov er

= All Aluminum

15-5

Ca p

15-5

= 15-5 µF

30-20

= 33-20 µF

50-7.5

= 50-7.5 µF

Tol. ±%

= ±3%

= ±6%

= ±10%

= Special

291

Can Height

300

= 3.00"

400

= 4.00"

388

= 3 7/8"

475

= 4 3/4"

VAR

= Dual 2,3,4 70 °C

= Other

= 2 1/2" Round

Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8564

•

Fax: (508)996-3830

•

www.cde.com
